ATV320U07N4C

2-year Warranty

Same Day Shipping

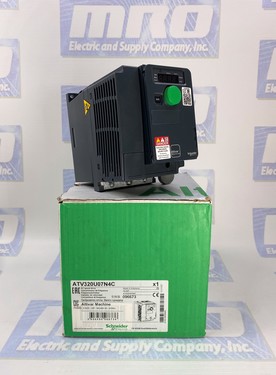

Schneider Electric ATV320U07N4C

ALTIVAR 320 ATV320 VARIABLE SPEED DRIVE 0.75 KW 380 TO 500 VOLT 3-PHASE - COMPACT

5/5
1 rating

Select Condition

Refurbished

Request Quote

New

2 in stock

$657.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberATV320U07N4C
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
RangeATV320
CategoryVariable speed drive
Power rating4 kW
Voltage rating380-500 V
Phase3 Phase
Drive descriptionCompact
ApplicationComplex machine
CommunicationModbus serial, CANopen
MountingWall mount
Supply voltage380...500 V - 15...10 %
Output current2.3 A
EMC filterClass C2 EMC filter integrated
Option cardCANopen, EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, DeviceNet
Discrete input7
DIscrete output3
Analog input3
Analog output1
Maximum output frequency0.599 kHz
Switching frequency2...16 kHz adjustable 4...16 kHz with derating factor
Apparent power2.4 kVA 500 V heavy duty)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV320U07N4C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV320U07N4C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV320U07N4C, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 2 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV320U07N4C for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV320U07N4C Overview

Schneider Electric ATV320U07N4C Altivar 320 Compact Variable Speed Drive

The ATV320U07N4C is a high-performance Variable Speed Drive (VSD) manufactured by Schneider Electric, a global leader in energy management and automation solutions. As part of the Altivar 320 product line, this compact drive offers exceptional power and control capabilities, making it an ideal choice for various industrial applications. With a power rating of 0.75 KW (kilowatts) and designed to operate at 380 to 500 volts in a 3-phase configuration, the ATV320U07N4C provides efficient and reliable motor control in a space-saving and compact design.

Powerful Performance in a Compact Form:

Despite its small size, the ATV320U07N4C doesn't compromise on power and performance. With a robust power rating of 0.75 KW (approximately 1 HP), this drive effectively controls motors used in diverse industrial processes. Its compact form factor makes it a versatile choice for installations with limited space availability, enabling flexible mounting options within control panels and cabinets. The ATV320U07N4C's ability to deliver powerful motor control in a compact design makes it a practical solution for industries looking to optimize space utilization without sacrificing performance.

Precise and Reliable Motor Control:

Schneider Electric's Altivar series is renowned for its precise motor control capabilities, and the ATV320U07N4C is no exception. This Variable Speed Drive employs advanced control algorithms to ensure smooth speed regulation, torque management, and precise acceleration and deceleration profiles. These features not only optimize the performance of industrial motors but also reduce wear and tear, leading to longer motor life and minimized maintenance requirements. The ATV320U07N4C's reliable motor control ensures consistent and efficient operation in various applications, ranging from pumps and fans to conveyors and mixers.

Wide Input Voltage Range:

The ATV320U07N4C is designed to operate within a wide voltage range of 380 to 500 volts in a 3-phase configuration. This feature makes the drive compatible with diverse electrical systems found in different regions and industries. Whether it's a 380V, 415V, or 500V power supply, the ATV320U07N4C can accommodate these variations, providing versatility and ease of installation for global customers and applications.

User-Friendly Interface:

The ATV320U07N4C features a user-friendly interface that simplifies drive configuration and monitoring tasks. The integrated keypad and display provide easy access to drive settings, allowing for quick adjustments and parameter tuning. Operators can view real-time motor performance data, status information, and diagnostic messages, enabling them to make informed decisions and troubleshoot issues promptly. The intuitive interface reduces commissioning time and facilitates smooth integration into existing industrial systems.

Enhanced Connectivity:

To meet the demands of modern industrial automation, the ATV320U07N4C comes equipped with various communication options. The drive supports multiple communication protocols, such as Modbus, CANopen, and Ethernet/IP, facilitating seamless integration into industrial networks and automation architectures. The enhanced connectivity enables centralized control, data exchange, and remote monitoring, making the ATV320U07N4C an integral part of interconnected and smart industrial environments.

Built-in Protection and Safety Features:

Safety is of utmost importance in industrial environments, and the ATV320U07N4C incorporates a range of protection features to safeguard both the drive and the connected motor. The drive includes protection mechanisms against overcurrent, overvoltage, undervoltage, and other potential faults, preventing damage to the equipment and ensuring reliable and safe operation. These built-in safety features contribute to the drive's durability and longevity, minimizing downtime and maintenance costs.

FAQs for Schneider Electric ATV320U07N4C AC Drive

What is the primary purpose of the Schneider Electric ATV320U07N4C AC drive?

The ATV320U07N4C is a variable-speed AC drive designed to control the speed and torque of motors in complex machines. It offers precise motor control in various industrial applications, ensuring energy efficiency and enhancing machine performance.

What is the power rating of the ATV320U07N4C?

This AC drive's power rating of 4 kW makes it suitable for medium-sized motor applications in industrial environments.

What voltage rating does this drive support?

The ATV320U07N4C operates at a voltage range of 380 to 500 V, with a supply voltage tolerance of -15% to +10%. It is compatible with 3-phase power supplies, ensuring stable operation in industrial settings.

What communication protocols are supported by this AC drive?

The ATV320U07N4C supports Modbus serial and CANopen communication as standard. It can also be equipped with optional communication cards for protocols such as EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, and DeviceNet, making it highly versatile for various industrial control systems.

What is the output current of the ATV320U07N4C?

The drive delivers an output current of 2.3 A, providing stable motor performance and control.

What is the maximum output frequency for this drive?

The ATV320U07N4C's maximum output frequency is 0.599 kHz, making it suitable for a wide range of motor speeds and applications.

Does the ATV320U07N4C come with an EMC filter?

Yes, this AC drive is equipped with an integrated Class C2 EMC filter, which ensures compliance with electromagnetic compatibility standards and reduces interference with other equipment.

How many discrete and analog inputs and outputs does this AC drive have?

The ATV320U07N4C features seven discrete inputs, three discrete outputs, three analog inputs, and one analog output, providing flexible I/O configurations for various control and monitoring requirements.

What is the mounting type for this AC drive?

The ATV320U07N4C is designed for wall mounting, allowing easy installation in control panels or machine frames in industrial environments.

Can the switching frequency be adjusted on this drive?

Yes, the ATV320U07N4C's switching frequency is adjustable between 2 kHz and 16 kHz. When operating between 4 and 16 kHz, a derating factor may be applied to manage the heat and performance characteristics.

What is the warranty offered by MRO Electric for this product?

MRO Electric provides:

  • A two-year warranty for the ATV320U07N4C AC drive.
  • Covering defects in materials and workmanship.
  • Ensuring reliability and customer satisfaction.

Is free shipping available for this product?

MRO Electric offers free shipping for the ATV320U07N4C, adding value and convenience to your purchase.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
