MANUFACTURER: SCHNEIDER ELECTRIC

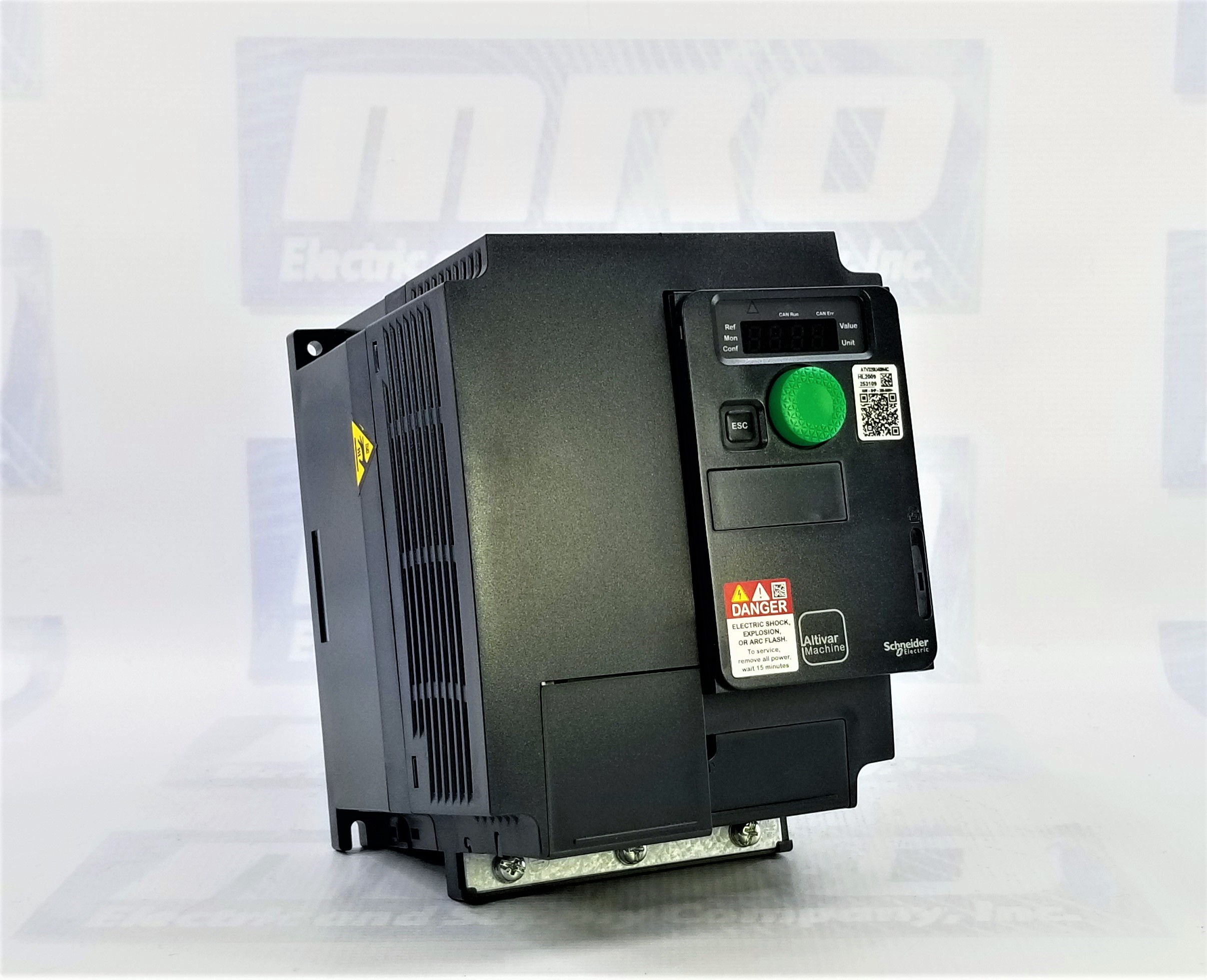

DESCRIPTION: Variable Speed Drive 4 kW 380 to 500 Volt 3-Phase - Compact
PRODUCT TYPE INFO: ALTIVAR 320
4 in stock
Ships Today
Free Shipping
2 Year warranty
| Part Number | ATV320U40N4C |
| Manufacturer | Schneider Electric |
| Type | AC Drives |
| Warranty | 2 Year |
| Range | ATV320 |
| Component | Variable speed drive |
| Application | Complex machines |
| Mount | Wall mount |
| Communication | Modbus serial CANopen |
| Option card | CANopen, EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, DeviceNet |
| Rated V | 380...500 V - 15...10 % |
| Output Current | 9.5 A |
| Motor power | 4.0 kW for heavy duty |
| EMC filter | Class C2 EMC filter |
| Protection | IP20 |
| Input | 7 Discrete Input |
| Discrete Input | STO, 24 V DC, impedance: 1.5 kOhm DI1...DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V) |
| Input logic | Positive logic (source) Negative logic (sink) |
| Output | 3 Discrete output |
| Discrete Output | Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA |
| Input | 3 Analog input |
| Analog input | AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits |
| Output | 1 Analog output |
| Analog output | Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits |
| Relay Output | R1A 1 NO electrical durability 100000 cycles, R1B 1 NC electrical durability 100000 cycles, R1C, R2A 1 NO electrical durability 100000 cycles, R2C |
| Switching current | Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
| Access | Slave CANopen |
| Output freq. Max | 0.599 kHz |
| Certifications | CE ATEX NOM GOST EAC RCM KC |
| Standards | EN/IEC 61800-5-1 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV320U40N4C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV320U40N4C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV320U40N4C, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV320U40N4C for credit when ordering from MRO Electric
The Schneider Electric ATV320U40N4C is a versatile AC drive designed to provide precise control and enhanced performance for complex machinery applications. As part of the ATV320 range, this variable-speed drive offers a comprehensive set of features to meet the demanding requirements of industrial environments.
Equipped with a powerful 4.0 kW motor and capable of wall mounting, the ATV320U40N4C is optimized for heavy-duty applications where reliability and efficiency are paramount. Its communication capabilities, including Modbus serial and CANopen, facilitate seamless integration into diverse control systems, ensuring compatibility and flexibility.
The ATV320U40N4C comes with a range of optional cards, including CANopen, EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, and DeviceNet. These options enable users to customize the drive according to their specific communication requirements, enhancing connectivity and interoperability.
Featuring an IP20-rated enclosure and Class C2 EMC filter, the ATV320U40N4C offers reliable protection against environmental factors and electromagnetic interference. With built-in safety features such as Safe Torque Off (STO) and discrete inputs for logic control, the drive ensures safe and secure operation in industrial settings.
The drive is equipped with seven discrete inputs, including programmable pulse inputs, and three discrete outputs with open collector configuration. Additionally, it features three analog inputs and one analog output, allowing for precise monitoring and control of various parameters such as voltage, current, and frequency.
With relay outputs rated for 100,000 cycles and a switching current of 5 mA at 24 V DC, the ATV320U40N4C ensures reliable operation and longevity. Its advanced design and adherence to standards such as EN/IEC 61800-5-1 guarantee compliance with industry regulations and safety requirements.
The ATV320U40N4C offers a maximum output frequency of 0.599 kHz, enabling precise speed control and dynamic performance optimization. Whether controlling motor speed, torque, or direction, the drive delivers consistent and efficient operation, enhancing overall system performance.
With CE, ATEX, NOM, GOST, EAC, RCM, and KC certifications, the ATV320U40N4C meets international standards for quality and safety. Its compliance with EN/IEC 61800-5-1 ensures compatibility with industry norms and regulations, providing users with confidence in its reliability and performance.
A: No, the ATV320U40N4C drive is designed for a three-phase power supply within the voltage range of 380 to 500 V with a frequency of 50/60 Hz. It is not suitable for use with single-phase power supply systems.
A: The ATV320U40N4C drive is rated for a maximum motor power of 4.0 kW for heavy-duty applications. This rating ensures compatibility with a wide range of industrial machinery and equipment requiring precise speed and torque control.
A: No, the ATV320U40N4C drive is designed for wall mounting and features an IP20-rated enclosure, which provides protection against solid objects and does not provide adequate protection against water ingress. It is recommended to install the drive in indoor environments away from direct exposure to moisture or dust.
A: The ATV320U40N4C drive supports Modbus serial and CANopen communication protocols by default. Additionally, it offers optional cards for communication interfaces such as EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, and DeviceNet, allowing for enhanced connectivity and compatibility with various control systems.
A: Yes, the ATV320U40N4C drive is certified for use in potentially explosive atmospheres and hazardous locations, as indicated by its ATEX certification. However, it is essential to ensure proper installation and compliance with local safety regulations and standards when using the drive in such environments.
