ATV320U22N4C

2-year Warranty

Same Day Shipping

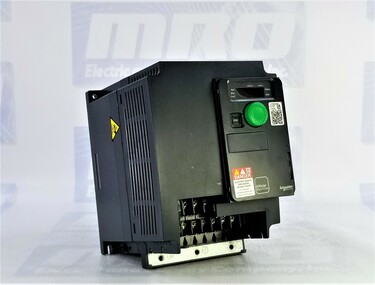

Schneider Electric ATV320U22N4C

ALTIVAR 320 VARIABLE SPEED DRIVE 2.2 KW 380-500 V 3-PHASE - COMPACT
5/5
1 rating

Select Condition

Refurbished

1 in stock

New

2 in stock

$661.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberATV320U22N4C
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
RangeATV320
CategoryVariable speed drive
Power rating2.2 kW
Voltage rating380...500 V - 15...10 %
Phase3-phase
FormatCompact
CoolingFan
Max hp3.0 hp heavy duty
Apparent power5.3 kVA 500 V heavy duty
ApplicationComplex machines
ProtectionIP20 IEC 61800-5-1 IP20 IEC 60529
Power range2.2...3 kW
DestinationSynchronous motors Asynchronous motors
Supply frequency50...60 Hz - 5...5 %
EMC filterClass C2 EMC filter integrated
Output frequency0.1…599 Hz
Nom switching frequency4 kHz
Safety functionSTO (safe torque off) SIL 3 SLS (safe limited speed) SS1 (safe stop 1) SMS (safe maximum speed) GDL (guard door locking)
CommunicationModbus serial CANopen
Speed range1…100 asynchronous motor in open-loop mode

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV320U22N4C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV320U22N4C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV320U22N4C, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 6lbs

Want it shipped today?

  • Order within the next 9 hours and 7 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV320U22N4C for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV320U22N4C Overview

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

Schneider Electric ATV320U22N4C

The ATV320U22N4C is a variable speed drive, also known as a VSD or VFD (Variable Frequency Drive), designed for industrial applications requiring precise motor speed control. Manufactured as part of the Altivar 320 series by Schneider Electric, this drive is known for its efficiency, compact design, and ability to work with both asynchronous and synchronous motors. Let's delve into the details of the ATV320U22N4C to understand its capabilities and benefits.

Powerful Performance

The ATV320U22N4C is rated at 2.2 kW (kilowatts), making it suitable for driving motors with a power rating of up to 2.2 kW. This drive is a workhorse in industrial settings, where controlling the speed of motors is essential for optimizing processes and ensuring efficient operation.

Three-Phase Power

This VSD is designed to work with three-phase supply voltage, specifically in the range of 380-500 VAC (volts alternating current). Three-phase power is common in industrial environments due to its efficiency and ability to handle heavy loads. The ATV320U22N4C is capable of providing precise control and regulation of motor speed within this voltage range.

Frequency Compatibility

The ATV320U22N4C is compatible with both 50 Hz and 60 Hz supply frequencies. This flexibility allows it to adapt to various global power standards, making it a versatile choice for international applications.

Compact Design

One of the standout features of this VSD is its compact design. Its small form factor makes it suitable for installations where space is limited. The compact size also simplifies integration into control cabinets and enclosures, optimizing the use of available space.

Altivar 320 Series

As part of the Altivar 320 series, the ATV320U22N4C benefits from Schneider Electric's expertise in motor control and drive technology. The Altivar 320 series is known for its reliability and advanced features, making it a trusted choice for industries such as manufacturing, water treatment, and HVAC (Heating, Ventilation, and Air Conditioning).

Key Benefits of the ATV320U22N4C

  1. Motor Speed Control: The ATV320U22N4C allows for precise control of motor speed, which is crucial for maintaining process efficiency and accuracy.
  2. Wide Voltage Range: With its ability to handle a voltage range of 380-500 VAC, this VSD is adaptable to various industrial power supply systems.
  3. Frequency Flexibility: Compatibility with both 50 Hz and 60 Hz frequencies ensures that the VSD can be used in a wide range of global applications.
  4. Compact Form: The compact design of the ATV320U22N4C makes it ideal for installations with limited space, simplifying integration into control cabinets.
  5. Altivar 320 Reliability: Schneider Electric's Altivar 320 series is known for its reliability and robust performance, making the ATV320U22N4C a trusted choice for industrial applications.

In conclusion, the ATV320U22N4C is a powerful and versatile variable-speed drive designed to meet the demands of industrial automation. Its ability to control motor speed precisely, wide voltage range, and compact design make it an excellent choice for various applications, from conveyor systems to pumps and fans. As part of the Altivar 320 series by Schneider Electric, it benefits from a legacy of quality and innovation in motor control technology, ensuring that it can contribute to the efficiency and productivity of industrial processes while maintaining reliability and precision.
