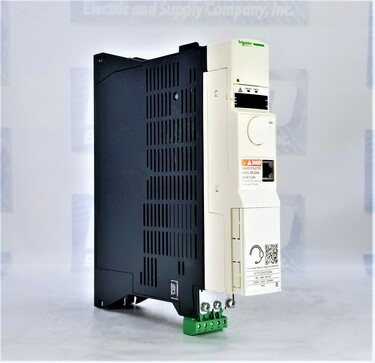

Schneider Electric ATV32H055N4: Efficient Motor Control for Industrial Automation

The Schneider Electric ATV32H055N4 is a high-performance variable-speed drive that provides precision motor control and energy efficiency in compact industrial applications. Part of the well-regarded Altivar 32 family, this drive is built to meet the requirements of modern automation systems with a focus on flexibility, reliability, and ease of integration. Rated for 0.55 kW of output power and compatible with 3-phase 400 V electrical systems, the ATV32H055N4 is well-suited for small motors driving machinery such as conveyors, pumps, fans, and material handling equipment. The unit is available immediately through MRO Electric and Supply and comes with free shipping and a 2-year warranty.

Electrical Capabilities and Motor Compatibility

This drive is engineered for a three-phase power input ranging from 380 to 500 VAC and supports an output frequency of 0 to 599 Hz. It is optimized to deliver smooth, responsive control for constant and variable torque applications. The 0.55 kW output enables it to handle motors in lower horsepower categories efficiently, making it perfect for machines where precision control is more critical than brute force. With features like voltage/frequency ratio (V/f) control and sensorless flux vector control, the ATV32H055N4 can adapt to various motor types and load conditions, offering enhanced performance across various industrial environments.

Compact Design and Installation Flexibility

The ATV32H055N4 is designed with space efficiency in mind. Its compact book-style form factor allows for easy installation inside crowded control cabinets. This model includes an integrated heat sink, effectively dissipating heat during continuous operation and maintaining optimal performance without needing external cooling in most scenarios. The drive supports wall and DIN rail mounting, giving engineers flexibility in system design and installation. Front-access terminals and intuitive programming further simplify setup and reduce commissioning time.

Communication and Control Features

To meet the needs of modern automation networks, the ATV32H055N4 includes built-in support for Modbus RTU and CANopen communication protocols. These interfaces allow the drive to be easily integrated into PLC-controlled systems or broader industrial networks. Users can install optional communication cards to support protocols such as EtherNet/IP, Profibus DP, PROFINET, and DeviceNet for enhanced communication options. The drive also features advanced control modes, including PID control, logic inputs, and safe torque off (STO) functionality for safe machine operation.

Durability and Safety Compliance

Built to handle industrial operating conditions, the ATV32H055N4 has protective features, including overcurrent, overvoltage, Undervoltage, ground fault, and overheating protection. It supports Safe Torque Off (STO) as a standard safety function, helping reduce risk during maintenance and emergency stops. With an IP20 protection rating, it is suitable for installation in protective enclosures within control panels. The drive also meets international standards such as CE, UL, and RoHS, ensuring compatibility and compliance across global markets.

Frequently Asked Questions

What is the power rating of the ATV32H055N4?

It is rated for 0.55 kW or approximately 0.75 horsepower.

What type of power supply does this drive require?

The ATV32H055N4 supports a 3-phase input of 380 to 500 VAC at 50/60 Hz.

Does this model support network communication?

Yes, it supports Modbus RTU and CANopen natively and can be expanded with optional communication modules.

What is the output frequency range?

The drive delivers output frequencies from 0 to 599 Hz.

Is it suitable for both constant and variable torque applications?

Yes, it is designed for both types of motor control applications.

Can it be used with asynchronous motors?

It supports asynchronous motor control with sensorless flux vector and V/f modes.

What safety features does the ATV32H055N4 include?

It includes Safe Torque Off (STO), overvoltage, ground fault, and thermal protection.

How is it mounted?

It supports DIN rail and wall-mount installation.

Does it include a heat sink?

Yes, a built-in heat sink ensures effective thermal management.

Is this product readily available?

It is available immediately from MRO Electric and Supply with free shipping and a 2-year warranty.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
