ATV32H075N4

2-year Warranty

Same Day Shipping

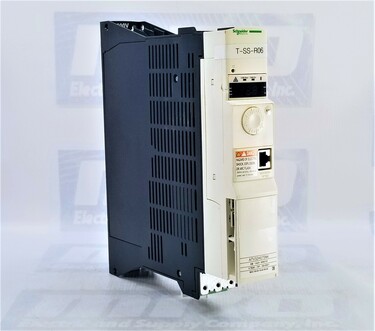

Schneider Electric ATV32H075N4

ALTIVAR 32 VARIABLE SPEED DRIVE ATV32 - 0.75 KW - 400 V - 3 PHASE - WITH HEAT SINK
5/5
1 rating

Select Condition

Refurbished

2 in stock

New

1 in stock

$555.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberATV32H075N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
RangeAltivar 32
CategoryATV32
DescriptionVariable speed drive
Line current1.6 A 500 V 3 phases 0.37 kW 0.5 hp 2.1 A 380 V 3 phases 0.37 kW 0.5 hp
Apparent power1.4 kVA 500 V 3 phases 0.37 kW 0.5 hp
DestinationAsynchronous motors Synchronous motors
Assembly styleWith heat sink
Nominal output current1.5 A 4 kHz 500 V 0.37 kW 0.5 hp
EMC filterClass C2 EMC filter integrated
Max transient current2.3 A 60 s 0.37 kW 0.5 hp
Phase3 phases
Nominal switching frequency4 kHz
Supply frequency50...60 Hz - 5...5 %
Output frequency0.0005...0.599 kHz
Supply voltage380...500 V - 15...10 %
Motor power hp0.5 hp 380...480 V
Speed range1...100 asynchronous motor in open -loop mode
Motor power kW0.37 kW 380...480 V
Network frequency47.5...63 Hz
Local signalling1 LED red drive voltage 1 LED green CANopen run 1 LED red CANopen error 1 LED red drive fault
Noise level43 dB 86/188/EEC
Electrical connectionScrew terminal 0.5...1.5 mm ² AWG 18...AWG 14 control

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV32H075N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV32H075N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV32H075N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 5lbs

Want it shipped today?

  • Order within the next 13 hours and 18 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV32H075N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV32H075N4 Overview

Schneider Electric ATV32H037N4

The ATV32H037N4 is a variable-speed drive from the Altivar 32 range, designed to provide precise control and efficient operation for both asynchronous and synchronous motors.

Key Specifications:

  • Assembly Style: The ATV32H037N4 comes with a heat sink for effective heat dissipation, ensuring optimal performance even in demanding applications.
  • EMC Filter: Equipped with a Class C2 EMC filter integrated, the drive adheres to stringent electromagnetic compatibility standards, reducing electromagnetic interference.
  • Phase: Designed for 3-phase systems, the drive accommodates the power requirements of industrial setups with a reliable and stable power supply.
  • Rated Supply Voltage: The drive operates within a rated supply voltage range of 380 to 500 V, with supply voltage limits ranging from 323 to 550 V. This flexibility makes it adaptable to various voltage conditions.
  • Supply Frequency: With a supply frequency range of 50 to 60 Hz and a network frequency range of 47.5 to 63 Hz, the drive ensures compatibility with standard industrial power systems.
  • Motor Power: The ATV32H037N4 has a motor power rating of 0.37 kW or approximately 0.5 hp at 380 to 480 V. This makes it suitable for a wide range of motor-driven applications.

Complementary Features:

  • Line Current: The drive's line current ranges from 1.6 A at 500 V to 2.1 A at 380 V, ensuring efficient power delivery to the connected motor.
  • Apparent Power: With an apparent power rating of 1.4 kVA at 500 V, the drive contributes to the overall efficiency and stability of the system.
  • Nominal Output Current: The nominal output current is 1.5 A at 4 kHz, providing precise control over the motor's speed and performance.
  • Output Frequency: The drive allows a wide range of output frequencies from 0.0005 to 0.599 kHz, enabling versatile control over the motor's speed.
  • Motor Control Profiles: The ATV32H037N4 supports various motor control profiles, including voltage/frequency ratio, flux vector control without a sensor, and synchronous motor control profiles.
  • Local Signaling: The drive features LEDs for drive voltage, CANopen run, CANopen error, and drive fault, providing visual indicators for easy monitoring.
  • Noise Level: With a noise level of 43 dB, the drive meets the standards set by 86/188/EEC, ensuring a relatively quiet operation.

Installation and Connectivity:

  • Electrical Connection: The drive comes with multiple screw terminals for electrical connections, accommodating control, motor, and power supply wiring.
  • Tightening Torque: The specified tightening torque ensures secure connections and reliable electrical contact.
  • Supply: The ATV32H037N4 includes an internal supply for a reference potentiometer, providing flexibility for control adjustments.

Environment and Standards:

  • Vibration Resistance: The drive is designed to withstand vibrations up to 1.5 mm peak to peak in the frequency range of 13 to 200 Hz, adhering to EN/IEC 60068-2-6 standards.
  • Shock Resistance: With a shock resistance of 15 gn for 11 ms, the drive can withstand mechanical shocks, ensuring durability in industrial environments.
  • Ambient Air Temperature: The drive is operational in ambient air temperatures ranging from 14 to 122 °F (-10 to 50 °C) without derating.

Applications:

The ATV32H037N4 is suitable for a wide range of applications, including complex machines in various industries. Its precise motor control capabilities make it an ideal choice for tasks such as conveyor systems, pumps, fans, manufacturing machinery, and material processing.

FAQs: ATV32H037N4 Variable Speed Drive

Q1: What is the rated supply voltage range of the ATV32H037N4?

A1: The ATV32H037N4 operates within a rated supply voltage range of 380 to 500 V, with supply voltage limits ranging from 323 to 550 V.

Q2: What is the motor power rating of the ATV32H037N4?

A2: The ATV32H037N4 has a motor power rating of 0.37 kW or approximately 0.5 hp at 380 to 480 V, making it suitable for various motor-driven applications.

Q3: What motor control profiles are supported by the ATV32H037N4?

A3: The drive supports various motor control profiles, including voltage/frequency ratio, flux vector control without a sensor, and synchronous motor control profiles.

Q4: What is the noise level of the ATV32H037N4?

A4: The drive has a noise level of 43 dB, meeting the standards set by 86/188/EEC, ensuring a relatively quiet operation.

Q5: How many discrete inputs and outputs does the ATV32H037N4 have?

A5: The drive features 7 discrete inputs and 3 discrete outputs, providing flexibility for control and monitoring functions.

Q6: What is the tightening torque for the electrical connections of the ATV32H037N4?

A6: The specified tightening torque ensures secure connections and reliable electrical contact: 4.42 lbs. in (0.5 N.m) for control, 6.19 lbs. in (0.7 N.m) for motor/braking resistor, and 5.31 lbf.in (0.6 N.m) for power supply.

Q7: Can the ATV32H037N4 be used in applications with space constraints?

A7: The drive has a compact design, and its dimensions (1.77 in x 12.8 in x 9.65 in) make it suitable for installations with space constraints.

Q8: What standards and certifications does the ATV32H037N4 comply with?

A8: The drive complies with standards such as EN/IEC 61800-5-1, EN 55011 class A group 1, and holds certifications including CSA, C-Tick, GOST, NOM 117, UL, and CE marking.

Q9: What is the vibration resistance of the ATV32H037N4?

A9: The drive is designed to withstand vibrations up to 1.5 mm peak to peak in the frequency range of 13 to 200 Hz, adhering to EN/IEC 60068-2-6 standards.

Q10: Can the ATV32H037N4 withstand shocks in industrial environments?

A10: Yes, the drive has a shock resistance of 15 gn for 11 ms, making it suitable for applications where mechanical shocks may occur in industrial environments.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
