ATV61H075N4

2-year Warranty

Same Day Shipping

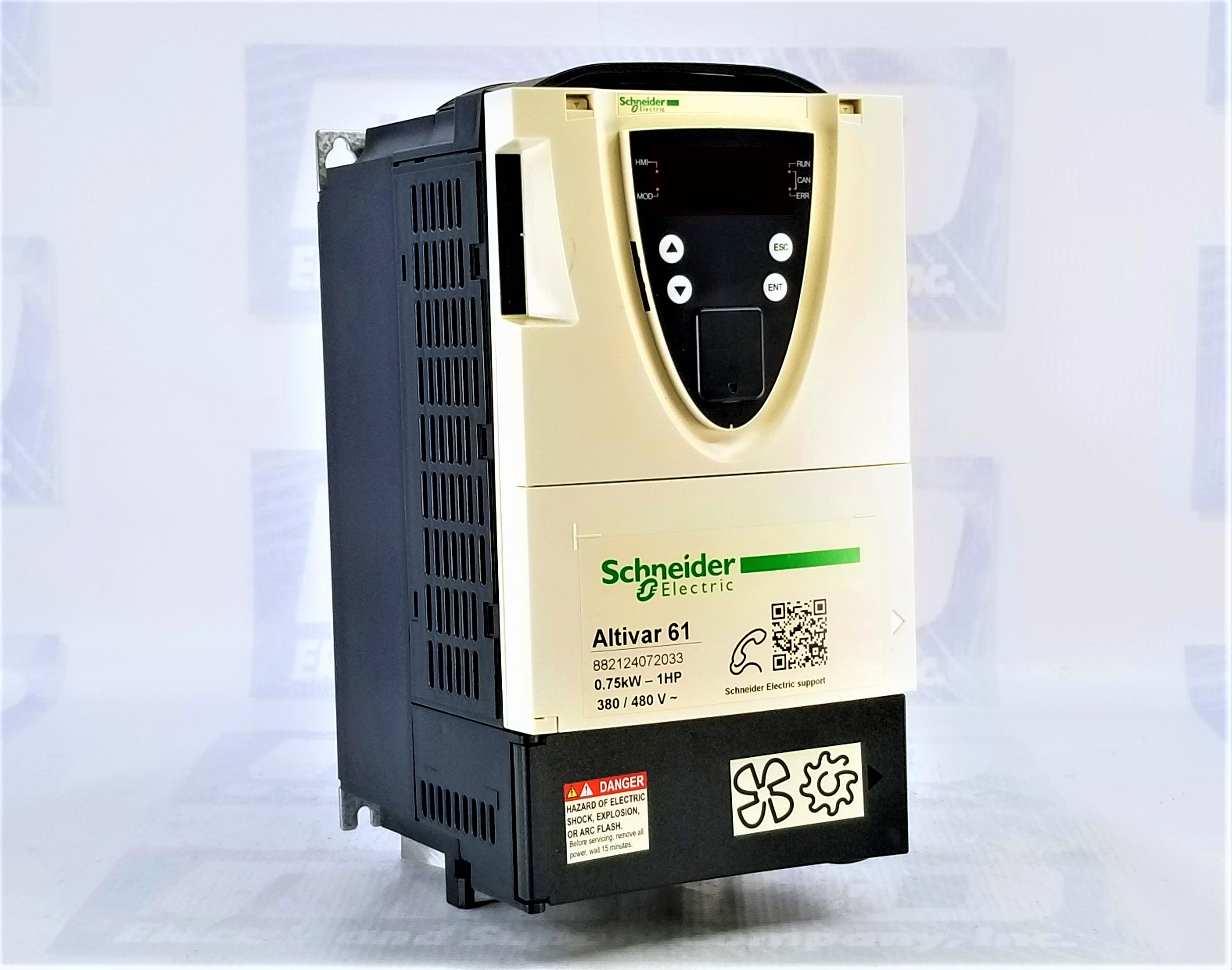

Schneider Electric ATV61H075N4

ALTIVAR 61 ATV61 0.75 KW 1 HP 480 VOLT 3-PHASE WITH EMC IP20
5/5
1 rating

Select Condition

Refurbished

Request Quote

New

2 in stock

$1,391.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberATV61H075N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Range of productAltivar 61
3.7 A for 380 V 3 phases 0.75 kW / 1 hp
12...16 kHz with derating factor
Voltage/frequency ratio, 2 points
Flux vector control without sensor, standard
Voltage/frequency ratio, 5 points
CANopen
Communication card for BACnet
Communication card for CC-Link
Controller inside programmable card
Communication card for DeviceNet
Communication card for EtherNet/IP
Communication card for Fipio
I/O extension card
Communication card for Interbus-S
Communication card for LonWorks
Communication card for METASYS N2
Communication card for Modbus Plus
Communication card for Modbus TCP
Communication card for Modbus/Uni-Telway
Multi-pump card
Communication card for Profibus DP
Communication card for Profibus DP V1
Product or component typeVariable speed drive
Product specific applicationPumping and ventilation machine
Component nameATV61
Motor power kW0.75 kW, 3 phases at 380...480 V
Motor power hp1 hp, 3 phases at 380...480 V
Power supply voltage380...480 V - 15...10 %
Supply number of phases3 phases
Line current3 A for 480 V 3 phases 0.75 kW / 1 hp
EMC filterClass C2 EMC filter integrated
Assembly styleWith heat sink
Apparent power2.4 kVA at 380 V 3 phases 0.75 kW / 1 hp
Maximum prospective line Isc5 kA for 3 phases
Maximum transient current2.7 A for 60 s, 3 phases
Nominal switching frequency12 kHz
Switching frequency1...16 kHz adjustable
Asynchronous motor controlVoltage/frequency ratio - Energy Saving, quadratic U/f
Synchronous motor control profileVector control without sensor, standard
Communication port protocolModbus
Type of polarizationNo impedance for Modbus
Option cardCommunication card for APOGEE FLN

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61H075N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61H075N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61H075N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 8lbs

Want it shipped today?

  • Order within the next 6 hours and 49 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61H075N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV61H075N4 Overview

Schneider Electric ATV61H075N4 AC Drive

The Schneider Electric ATV61H075N4 AC Drive is a flagship product within the Altivar 61 range, crafted by Schneider Electric, a global leader in energy management and automation solutions. This variable-speed drive represents the pinnacle of innovation and performance in industrial automation, offering unparalleled control and efficiency for pumping and ventilation machinery applications.

Advanced Features for Precise Control:

Equipped with advanced features, the ATV61H075N4 AC Drive provides precise control over motor operation, ensuring optimal performance and energy efficiency. With voltage/frequency ratio control, flux vector control without sensors, and multi-pump card capabilities, it offers versatile solutions tailored to the specific needs of pumping and ventilation systems.

Comprehensive Communication Options:

The ATV61H075N4 AC Drive boasts an extensive array of communication options, including CANopen, BACnet, CC-Link, DeviceNet, EtherNet/IP, Fipio, Interbus-S, LonWorks, METASYS N2, Modbus Plus, Modbus TCP, Modbus/Uni-Telway, Profibus DP, and Profibus DP V1. These communication protocols enable seamless integration with various automation networks, facilitating efficient data exchange and system interoperability.

Optimized Motor Power and Voltage:

With a motor power of 0.75 kW (1 hp) and compatibility with 3-phase power supply voltages ranging from 380V to 480V, the ATV61H075N4 AC Drive delivers robust performance and reliability in diverse industrial environments. Its ability to operate with line currents of 3A for 480V ensures efficient power utilization, while the integrated EMC filter ensures compliance with Class C2 EMC standards.

Flexible Assembly and Configuration:

Featuring an assembly style with a heat sink, the ATV61H075N4 AC Drive is designed for easy installation and integration into existing machinery setups. Its adjustable switching frequency, ranging from 1 to 16 kHz, allows for flexible configuration to suit specific application requirements. At the same time, asynchronous and synchronous motor control profiles cater to a wide range of motor types and operating conditions.

Enhanced Safety and Compliance:

Safety is paramount in industrial automation, and the ATV61H075N4 AC Drive prioritizes safety and compliance with stringent industry standards. Features such as a maximum prospective line Isc of 5 kA for 3 phases and a maximum transient current of 2.7A for 60 seconds ensure reliable operation and protection against electrical faults and overloads.

Seamless Integration with Option Cards:

The ATV61H075N4 AC Drive offers seamless integration with option cards, such as the communication card for APOGEE FLN, further expanding its functionality and connectivity options. This compatibility allows easy customization and adaptation to specific control requirements, ensuring maximum versatility and performance.

Frequently Asked Questions about the Schneider Electric ATV61H075N4 AC Drive:

Q: What is the Schneider Electric ATV61H075N4 AC Drive?

A: The Schneider Electric ATV61H075N4 AC Drive is a variable-speed drive designed to control and optimize pumping and ventilation machinery operation in industrial applications.

Q: What are the key features of the ATV61H075N4 AC Drive?

A: The key features include advanced control capabilities, comprehensive communication options, optimized motor power and voltage, flexible assembly and configuration, enhanced safety and compliance features, and seamless integration with option cards.

Q: What applications is the ATV61H075N4 AC Drive suitable for?

A: The ATV61H075N4 AC Drive is suitable for various applications, including pumping systems used in water treatment plants, HVAC systems in commercial buildings, and ventilation systems in industrial facilities.

Q: What communication protocols does the ATV61H075N4 AC Drive support?

A: The ATV61H075N4 AC Drive supports various communication protocols, including CANopen, BACnet, CC-Link, DeviceNet, EtherNet/IP, Fipio, Interbus-S, LonWorks, METASYS N2, Modbus Plus, Modbus TCP, Modbus/Uni-Telway, Profibus DP, and Profibus DP V1.

Q: How does the ATV61H075N4 AC Drive ensure safety and compliance?

A: The ATV61H075N4 AC Drive includes features such as an integrated EMC filter, maximum prospective line Isc protection, and maximum transient current protection, ensuring reliable operation and compliance with industry standards.

Q: Can the ATV61H075N4 AC Drive be customized for specific requirements?

A: Yes, the ATV61H075N4 AC Drive offers flexibility for customization through option cards, such as the communication card for APOGEE FLN, allowing users to adapt the drive to specific control requirements.
