ATV61HC11N4D

2-year Warranty

Same Day Shipping

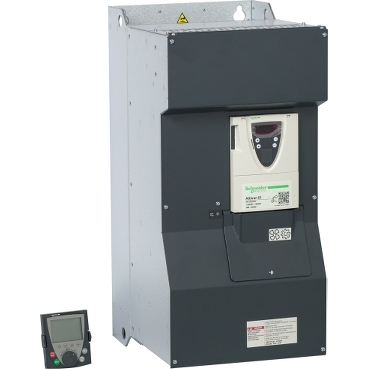

Schneider Electric ATV61HC11N4D

ALTIVAR 61 SPEED DRIVE 150 HP 460VATV61 NO DC CHOKE

5/5
1 rating

1 Available


2 Year warranty

Part NumberATV61HC11N4D
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Option cardCommunication card APOGEE FLN Communication card BACnet Communication card CC-Link Controller inside programmable card Communication card DeviceNet Communication card EtherNet/IP Communication card Fipio I/O extension card
ApplicationPumping and ventilation machine
Motor power110 kW, 3 phase 380-480 V
Max HP Rating150 hp, 3 phase 380...480 V
Power supply voltage380...480 V - 15...10 %
Phases3 phase
CommunicationCANopen, Modbus
Switching Freq2.5 kHz
Max transient current258 A 60 s, 3 phase
AssemblyWith heat sink
Apparent power133 kVA 380 V 3 phase 110 kW / 150 hp
Max prospective line Isc35 kA 3 phase
Motor ControlVector control without sensor
Asynchronous motor controlVoltage/frequency ratio, 2 points Voltage/frequency ratio, 5 points Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor, standard

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61HC11N4D to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HC11N4D we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61HC11N4D, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 150lbs

Want it shipped today?

  • Order within the next 15 hours and 42 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61HC11N4D for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV61HC11N4D Overview

Schneider Electric ATV61HC11N4D Variable Speed Drive Overview

The Schneider Electric ATV61HC11N4D is a high-performance variable-speed drive that delivers precise motor control in industrial applications. Part of the Altivar 61 series, this drive offers advanced features and robust construction to meet the demanding requirements of modern industrial environments.

Altivar 61 Series:

As a member of the Altivar 61 series, the ATV61HC11N4D exemplifies Schneider Electric's commitment to innovation and reliability in variable-speed drives. This series is renowned for its versatility, efficiency, and superior performance across various industrial applications.

150 HP Motor Control:

The ATV61HC11N4D drive can control motors up to 150 horsepower (HP) and provides ample power for demanding industrial machinery and equipment. This drive ensures precise speed and torque control for optimal performance, whether it's pumps, fans, conveyors, or other motor-driven systems.

Voltage and Frequency Compatibility:

The ATV61HC11N4D drive operates with a voltage range of 380-480 volts AC and supports 50Hz- and 60Hz frequencies. This broad compatibility ensures flexibility in deployment across different regions and industrial setups, making it suitable for global applications.

Three-Phase Operation:

Designed for three-phase power systems, the ATV61HC11N4D drive seamlessly integrates into standard industrial electrical configurations. Its compatibility with three-phase power ensures stable and reliable operation, even in fluctuating conditions.

IP 20 Protection:

The ATV61HC11N4D drive features an IP 20 (Ingress Protection) rating, protecting solid objects larger than 12.5mm. This makes it suitable for indoor use in clean industrial environments. This level of protection safeguards the drive from dust and debris, ensuring longevity and reliability.

No DC Choke Configuration:

The ATV61HC11N4D drive is configured without a DC choke, offering system design and installation flexibility. This configuration option simplifies setup and integration into motor control systems, reducing complexity and cost.

Enhanced Motor Control:

With its advanced control algorithms and parameter settings, the ATV61HC11N4D drive offers precise and efficient motor control. It provides smooth acceleration and deceleration, torque optimization, and dynamic speed regulation, ensuring smooth operation and reduced mechanical stress on connected equipment.

Energy Efficiency:

By enabling variable speed control of motors, the ATV61HC11N4D drive contributes to energy savings in industrial applications. It allows motors to operate at optimal speeds based on actual demand, reducing energy consumption and operating costs.

Frequently Asked Questions

Q: What is the Schneider Electric ATV61HC11N4D variable speed drive? A: The Schneider Electric ATV61HC11N4D is a variable-speed drive for precise motor control in industrial applications. It allows for adjusting motor speed to optimize performance and energy efficiency.

Q: What are the key features of the ATV61HC11N4D drive? A: The ATV61HC11N4D drive offers motor control up to 150 horsepower (HP), compatibility with 380-480 volts AC and 50/60Hz frequencies, three-phase operation, IP 20 protection for indoor use, and configuration without a DC choke for simplified installation.

Q: What applications is the ATV61HC11N4D drive suitable for? A: The ATV61HC11N4D drive is suitable for various industrial applications, including pumps, fans, conveyors, and other motor-driven systems where precise speed control and energy efficiency are required.

Q: How does the ATV61HC11N4D drive contribute to energy efficiency? A: By enabling variable speed control of motors, the ATV61HC11N4D drive allows motors to operate at optimal speeds based on actual demand, reducing energy consumption and lowering operating costs.

Q: What level of protection does the ATV61HC11N4D drive offer? A: The ATV61HC11N4D drive features an IP 20 rating, which protects solid objects larger than 12.5mm. This makes it suitable for indoor use in clean industrial environments.
