ATV61HC20Y

2-year Warranty

Same Day Shipping

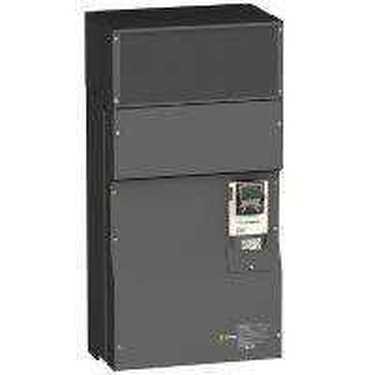

Schneider Electric ATV61HC20Y

MANUFACTURER: Schneider Electric
DESCRIPTION: Variable speed drive ATV61 - 200kW / 690V - 200HP / 575V - IP20
PRODUCT TYPE INFO: Altivar 61


Available


Free Shipping

2 Year warranty

Part NumberATV61HC20Y
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Range of productAltivar 61
200 kW, 3 phases at 690 V
199 A for 690 V 3 phases 160 kW / 200 hp
218 A for 500 V 3 phases 160 kW / 200 hp
2.5...4.9 kHz with derating factor
Voltage/frequency ratio, 5 points
Voltage/frequency ratio - Energy Saving, quadratic U/f
Flux vector control without sensor, standard
CANopen
Communication card for BACnet
Communication card for CC-Link
Controller inside programmable card
Communication card for DeviceNet
Communication card for EtherNet/IP
Communication card for Fipio
I/O extension card
Communication card for Interbus-S
Communication card for LonWorks
Communication card for METASYS N2
Communication card for Modbus Plus
Communication card for Modbus TCP
Communication card for Modbus/Uni-Telway
Multi-pump card
Communication card for Profibus DP
Communication card for Profibus DP V1
Product or component typeVariable speed drive
Product specific applicationPumping and ventilation machine
Component nameATV61
Motor power kW160 kW, 3 phases at 500 V
Motor power hp200 hp, 3 phases at 575 V
Power supply voltage500...690 V - 15...10 %
Supply number of phases3 phases
Line current197 A for 600 V 3 phases 160 kW / 200 hp
EMC filterLevel 3 EMC filter
Assembly styleWith heat sink
Maximum prospective line Isc35 kA for 3 phases
Maximum transient current288 A for 60 s, 3 phases
Nominal switching frequency2.5 kHz
Switching frequency2.5...4.9 kHz adjustable
Asynchronous motor controlVoltage/frequency ratio, 2 points
Synchronous motor control profileVector control without sensor, standard
Communication port protocolModbus
Type of polarizationNo impedance for Modbus
Option cardCommunication card for APOGEE FLN

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61HC20Y to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HC20Y we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61HC20Y, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 19 hours and 26 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61HC20Y for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV61HC20Y Overview

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV61HC20Y, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV61HC20Y products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
