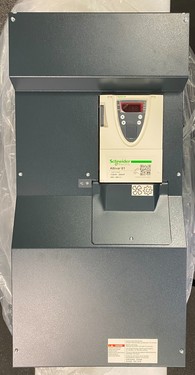

ATV61HC13N4D

ATV61HC13N4D

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: SPEED DRIVE, 200HP, 460V, ATV61-NO DC CHOKE

PRODUCT TYPE INFO: Altivar 61

1 Available

2 Year warranty

Categories

Part NumberATV61HC13N4D
ManufacturerSchneider Electric
SeriesAltivar 61
Model #ATV61HC13N4D
TypeAC Drives
Warranty2 Year
Motor power kW132 kW, 3 phase 380-480 V
Max Horse Power Rating200 hp, 3 phase 380...480 V
Phases3 phase
EMC filterLevel 3 EMC filter
AssemblyWith heat sink
Switching frequency2...8 kHz adjustable, 2.5...8 kHz with derating factor
CommunicationCANopen / Modbus
Output frequency0.1…500 Hz
Braking torque<= 125 % with braking resistor 30 % without braking resistor
Regulation loopFrequency PI regulator
Output voltage<= power supply voltage
Discrete output Two
Discrete input Seven
Analogue output One
Analogue inputTwo
DestinationSynchronous motors Asynchronous motors

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61HC13N4D to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HC13N4D we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61HC13N4D, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 207lbs

Want it shipped today?

  • Order within the next 9 hours and 53 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61HC13N4D for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Schneider Electric ATV61HC13N4D Overview

The Altivar 61 ATV61HC13N4D is a frequency inverter drive manufactured by Schneider Electric for use with three-phase synchronous and asynchronous motors.  It is manufactured for common fluid management of pumping and ventilation machines. The ATV 61 is designed to optimize energy consumption and increase overall equipment performance.

Features of the ATV61HC13N4D Frequency Inverter Drive

The Schneider Electric frequency inverter drive ATV61HC13N4D made for pumping and ventilation applications. The destination for the ATV 61 unit ATV61HC13N4D is for synchronous and asynchronous motors and has a motor power rating of 132 kW. This module is a 3-phase supply module with a voltage rating of 380-480 V. The power supply voltage limit on the ATV 61 is 325-528 V and the output frequency for this unit is 0.1…500 Hz. The ATV61HC13N4D drive module has a Level 3 EMC filter. This unit does not have a DC choke. A heat sink is part of the assembly of the inverter drive. The switching frequency is 2.5 kHz. The ATV 61 has two analog inputs and 1 analog output, and it also has two discrete outputs and 7 discrete inputs. The appropriate operating position for the Schneider Electric ATV61HC13N4D is Operating position Vertical +/- 10 degrees. The dimensions of the frequency drive unit are 14.17 in (h) x 30.79 in (w) x 14.84 in (d).

Design Functions of the Altivar 61

The Altivar 61 incorporates several integrated application functions while continuing to meet stringent industry requirements. The pump and fan applications for the ATV61HC13N4D drive include auto catching of a spinning load with speed detection, preset speeds, electricity and service hours meter, sleep function, and a wake-up function. It has an integrated PID regulator with preset PID references and auto and manual mode. The drive employs noise and resonance suppression due to the need to adjust frequency during operation. The ATV61 can detect the absence of fluid and flow detection.

Standards and Certifications for the ATV 61 Frequency Drive

Developed to meet environmental directives such as RoHS, REACH, WEEE, etc. as well as the European CE mark. The ATV61HC13N4D is UL, CSA, DNV, C-Tick, NOM, and GOST certified and complies with international standard IEC/EN 61800-3.

Energy Saving Features of the ATV 61 Drive

Schneider Electric designed the ATV61HC13N4D frequency drive to be environmentally friendly. The ATV 61 features a reduction in energy consumption for ventilation applications up to 70 % and for pumping applications up to 50 %. Fluid loss is kept to a minimum in distribution networks. Schneider Electric uses recyclable materials and conforms to the ISO environmental standard.

Option cards available for the ATV 61 drive:

Communication card APOGEE FLN

Communication card BACnet

Communication card CC-Link

Controller inside the programmable card

Communication card DeviceNet

Communication card EtherNet/IP

Communication card Fipio I/O extension card

Communication card Interbus-S

Communication card LonWorks

Communication card METASYS N2

Communication card Modbus Plus

Communication card Modbus TCP

Communication card Modbus/Uni-Telway Multi-pump card

Communication card Profibus DP

Communication card Profibus DP V1

The Altivar 61 ATV61HC13N4D frequency inverter drive manufactured by Schneider Electric comes with a two-year warranty.

Product Description

The ATV61HC13N4D is a SPEED DRIVE, 200HP, 460V, ATV61-NO DC CHOKE that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the altivar-61 line come with a 2 year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
