|Destination||Synchronous motors Asynchronous motors|
|Dimensions||210mm x 295mm x 213mm|
|Degree of Protection||IP20|
|Appkication||Pumping and Ventilation|
|Motor power||11 kW, 3 phase 380...480 V|
|Max hp Rating||15 hp, 3 phase 380...480 V|
|EMC filter||Level 3|
|Power supply voltage||380...480 V - 15...10 %|
|Maximum prospective line Isc||22 kA 3 phase|
|Apparent power||24.1 kVA 380 V 3 phase 11 kW / 15 hp|
|Nominal switching frequency||12 kHz|
|Output frequency||0.1…599 Hz|
|Power supply voltage limits||323…528 V|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV61HD11N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HD11N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV61HD11N4, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV61HD11N4 for credit when ordering from MRO Electric

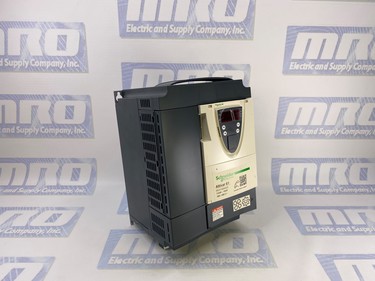

The Altivar 61 module ATV61HD11N4 is a variable speed drive made for synchronous and asynchronous motors and manufactured by Schneider Electric. The ATV 61 module ATV61HD11N4 is an IP20 drive with an integrated EMC filter. The supply voltage range for the ATV61HD11N4 Altivar 61 drive is 380...480 V 50/60 Hz. The Altivar 61 line is manufactured for pumps and fans in the industrial setting.
The Schneider Electric ATV61 is a frequency inverter module manufactured for 0.75 kW/1 HP to 2400 kW three-phase synchronous and asynchronous motors to bring smooth administration to your industrial applications. Increasing the performance of your industrial application means a reduction in operating costs and optimizes energy use.
There are several important features of the Altivar 61 line of drives. The rating features that are specific for the ATV61HD11N4 are the following. The Schneider Electric ATV61HD11N4 variable speed drive has a motor power rating of 11 kW and 15 hp. The line supply rating for the ATV61HD11N4 is 36.6 A at 380 V, and the line supply rating at 480 V is 30 V. The apparent power rating for the ATV61HD11N4 variable speed drive is 24.1 kVA with the max prospective line Isc being 22 kA. The Altivar 61 max continuous current rating at 380 V is 27.7 A. The max continuous current rating at 460 V for the ATV61HD11N4 is 21 A. The max transient current rating for 60 s is 33.2 A.
The dimensions of the Schneider Electric ATV61HD11N4 variable speed drive are 210 mm x 295 mm x 213 mm.
The type of cooling for the Altivar 61 is a heat sink or water-cooled.
The Schneider Electric ATV61HD11N4 Altivar 61 drive conforms to environmental standard ISO 14040 and was engineered to be environmentally friendly and is UL, CSA, DNV, C-Tick, NOM, and GOST certified The ATV 61 line conforms to international standards regarding electrical industrial control equipment IEC/EN 61800-2 and IEC/EN 61800-5-1.
The power section of the Altivar ATV61HD11N4 can be mounted outside of the enclosure. How is this beneficial in the industrial setting? Mounting the power section outside the enclosure substantially reduces dissipated deficiency in the enclosure. When mounted in this fashion, the max internal temperature within the enclosure can reach a higher temperature (60 °) without having to derate the drive current. To use this type of mounting, drill and cut out the back of the enclosure. The ATV61HD11N4 uses the mounting and fixing accessory kit VW3A9504 made specifically for flush-mounting in a dusty and or damp environment.
Another optional kit for the Altivar ATV61HD11N4 is the UL Type 1 conformity kit which allows for mounting the ATV61HD11N4 outside the enclosure. Kit VW3A9204 helps to maintain safety conforming with UL Type 1 when connecting cables with a tube. The connection is shielded inside the kit. For IP 21 or IP 31 conformity, kit VW3A9104 can be used. Optional braking resistors can also be used on the Altivar 61 line of drives. The braking resistor for the ATV61HD11N4 is VW3A7703.
The Schneider Electric variable speed drive Altivar ATV61HD11N4 comes with a two-year warranty.
The ATV61HD11N4 is a 11 KW 15 HP 480V 3 PHASES EMC IP20 WITH GRAPH TERM that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the altivar-61 line come with a 2 year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at email@example.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 3HAC023195-001, take a look at more from our Robotics line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV61HD11N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
