ATV61HD15M3X

2-year Warranty

Same Day Shipping

Schneider Electric ATV61HD15M3X

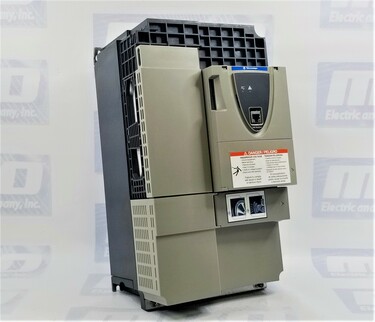

ALTIVAR 61 SPEED DRIVE 20 HP 230 V ATV6
5/5
1 rating

1 Available


2 Year warranty

Part NumberATV61HD15M3X
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Range of productAltivar 61
71.7 A for 200 V 3 phases 15 kW / 20 hp
12...16 kHz with derating factor
Voltage/frequency ratio, 2 points
Flux vector control without sensor, standard
Voltage/frequency ratio - Energy Saving, quadratic U/f
Modbus
Communication card for BACnet
Communication card for CC-Link
Controller inside programmable card
Communication card for DeviceNet
Communication card for EtherNet/IP
Communication card for Fipio
I/O extension card
Communication card for Interbus-S
Communication card for LonWorks
Communication card for METASYS N2
Communication card for Modbus Plus
Communication card for Modbus TCP
Communication card for Modbus/Uni-Telway
Multi-pump card
Communication card for Profibus DP
Communication card for Profibus DP V1
Product or component typeVariable speed drive
Product specific applicationPumping and ventilation machine
Component nameATV61
Motor power kW15 kW, 3 phases at 200...240 V
Motor power hp20 hp, 3 phases at 200...240 V
Power supply voltage200...240 V - 15...10 %
Supply number of phases3 phases
Line current61.6 A for 240 V 3 phases 15 kW / 20 hp
EMC filterWithout EMC filter
Assembly styleWith heat sink
Apparent power25.6 kVA at 240 V 3 phases 15 kW / 20 hp
Maximum prospective line Isc22 kA for 3 phases
Maximum transient current79.2 A for 60 s, 3 phases
Nominal switching frequency12 kHz
Switching frequency1...16 kHz adjustable
Asynchronous motor controlVoltage/frequency ratio, 5 points
Synchronous motor control profileVector control without sensor, standard
Communication port protocolCANopen
Type of polarizationNo impedance for Modbus
Option cardCommunication card for APOGEE FLN

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61HD15M3X to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HD15M3X we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61HD15M3X, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 45lbs

Want it shipped today?

  • Order within the next 4 hours and 39 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61HD15M3X for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV61HD15M3X Overview

Schneider Electric ATV61HD15M3X AC Drives: Precision Control for Pumping and Ventilation

The Schneider Electric ATV61HD15M3X variable-speed drive stands out for its efficiency. As part of the Altivar 61 product range, this AC drive delivers unparalleled performance and versatility, making it ideal for pumping and ventilation applications in industrial settings.

Unmatched Power and Precision:

With a 15 kW (20 hp) motor power and a 200-240 V supply voltage, the Schneider Electric ATV61HD15M3X AC Drive offers exceptional power and precision to drive pumping and ventilation machinery quickly. Its robust construction and advanced control algorithms ensure smooth and accurate operation, even in the most demanding environments.

Advanced Control Features:

Equipped with a comprehensive range of control features, the ATV61HD15M3X AC Drive enables precise motor control and optimization. From voltage/frequency ratio control to flux vector control without a sensor, users can access advanced control strategies to enhance efficiency and performance in their applications.

Flexible Communication Options:

The Schneider Electric ATV61HD15M3X AC Drive has many communication options, including Modbus, BACnet, CC-Link, DeviceNet, EtherNet/IP, and more. These options enable seamless integration with existing control systems and facilitate communication with other devices for enhanced interoperability.

Tailored Configuration for Diverse Needs:

With support for various option cards, including I/O extension cards, communication cards for different protocols, and multi-pump cards, the ATV61HD15M3X AC Drive offers unparalleled flexibility and customization. Users can easily tailor the drive's configuration to meet the specific requirements of their pumping and ventilation systems.

Reliable and Robust Design:

Built to withstand the rigors of industrial environments, the Schneider Electric ATV61HD15M3X AC Drive features a rugged assembly style with a heat sink for efficient thermal management. Its EMC filter ensures reliable operation, while its maximum prospective line Isc and transient current ratings protect against overcurrent conditions.

Seamless Integration with APOGEE FLN:

For users requiring integration with APOGEE FLN systems, the Schneider Electric ATV61HD15M3X AC Drive offers compatibility with communication cards specifically designed for this purpose. This seamless integration ensures interoperability with building automation systems, enabling centralized control and monitoring of pumping and ventilation processes.

FAQs about the Schneider Electric ATV61HD15M3X AC Drive:

What is the Schneider Electric ATV61HD15M3X AC Drive?

The Schneider Electric ATV61HD15M3X AC Drive is a variable-speed drive designed for controlling motors in pumping and ventilation applications. It offers precise control over motor speed and torque, optimizing energy consumption and system performance.

What are the key specifications of the Schneider Electric ATV61HD15M3X AC Drive?

The ATV61HD15M3X AC Drive has a motor power of 15 kW (20 hp) and operates on a supply voltage of 200-240 V with three phases. It supports a line current of 61.6 A for 240 V and offers advanced control features such as voltage/frequency ratio control and flux vector control without sensors.

What makes the Schneider Electric ATV61HD15M3X AC Drive suitable for pumping and ventilation applications?

The ATV61HD15M3X AC Drive is tailored explicitly for pumping and ventilation machines, offering precise motor speed and torque control. Its advanced control algorithms and flexible communication options make it ideal for optimizing energy consumption and enhancing system performance in these applications.

What communication options are available with the Schneider Electric ATV61HD15M3X AC Drive?

The ATV61HD15M3X AC Drive supports many communication protocols, including Modbus, BACnet, CC-Link, DeviceNet, EtherNet/IP, and more. This enables seamless integration with existing control systems and facilitates communication with other devices for enhanced interoperability.

How customizable is the Schneider Electric ATV61HD15M3X AC Drive?

The ATV61HD15M3X AC Drive offers extensive customization options and supports various option cards, including I/O extension cards and communication cards for different protocols. This allows users to tailor the drive's configuration to meet the specific requirements of their pumping and ventilation systems.

Is the Schneider Electric ATV61HD15M3X AC Drive suitable for harsh industrial environments?

Yes, the ATV61HD15M3X AC Drive is built to withstand the rigors of industrial environments with its rugged design and efficient thermal management. Its EMC filter ensures reliable operation, while its maximum prospective line Isc and transient current ratings protect against overcurrent conditions.

What integration options are available for building automation systems?

The Schneider Electric ATV61HD15M3X AC Drive offers compatibility with communication cards designed for integration with APOGEE FLN systems. This allows seamless interoperability with building automation systems, enabling centralized control and monitoring of pumping and ventilation processes.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
