ATV61HD22N4

2-year Warranty

Same Day Shipping

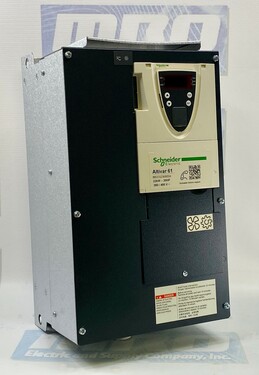

Schneider Electric ATV61HD22N4

ALTIVAR 22 KW 30 HP 480 VOLT 3-PHASE WITH EMC IP20
5/5
2 ratings

8 in stock


2 Year warranty

Part NumberATV61HD22N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Product Range Altivar 61
Application specificPumping and ventilation machine
Motor power22 kW, 3 phases at 380...480 V
Motor horsepower30 hp, 3 phases at 380...480 V
Phases3 phases
EMC filterLevel 3
AssemblyHeat sink
Voltage380...480 V - 15...10 %
Switching frequency12 kHz
Adjustable frequency1...16 kHz
Frequency derating12...16 kHz
Speed range1…100 in open-loop mode, w/o speed feedback
Analog input2 input
Diagnostic 1 RED LED (drive voltage)
