ATV61HD37N4

2-year Warranty

Same Day Shipping

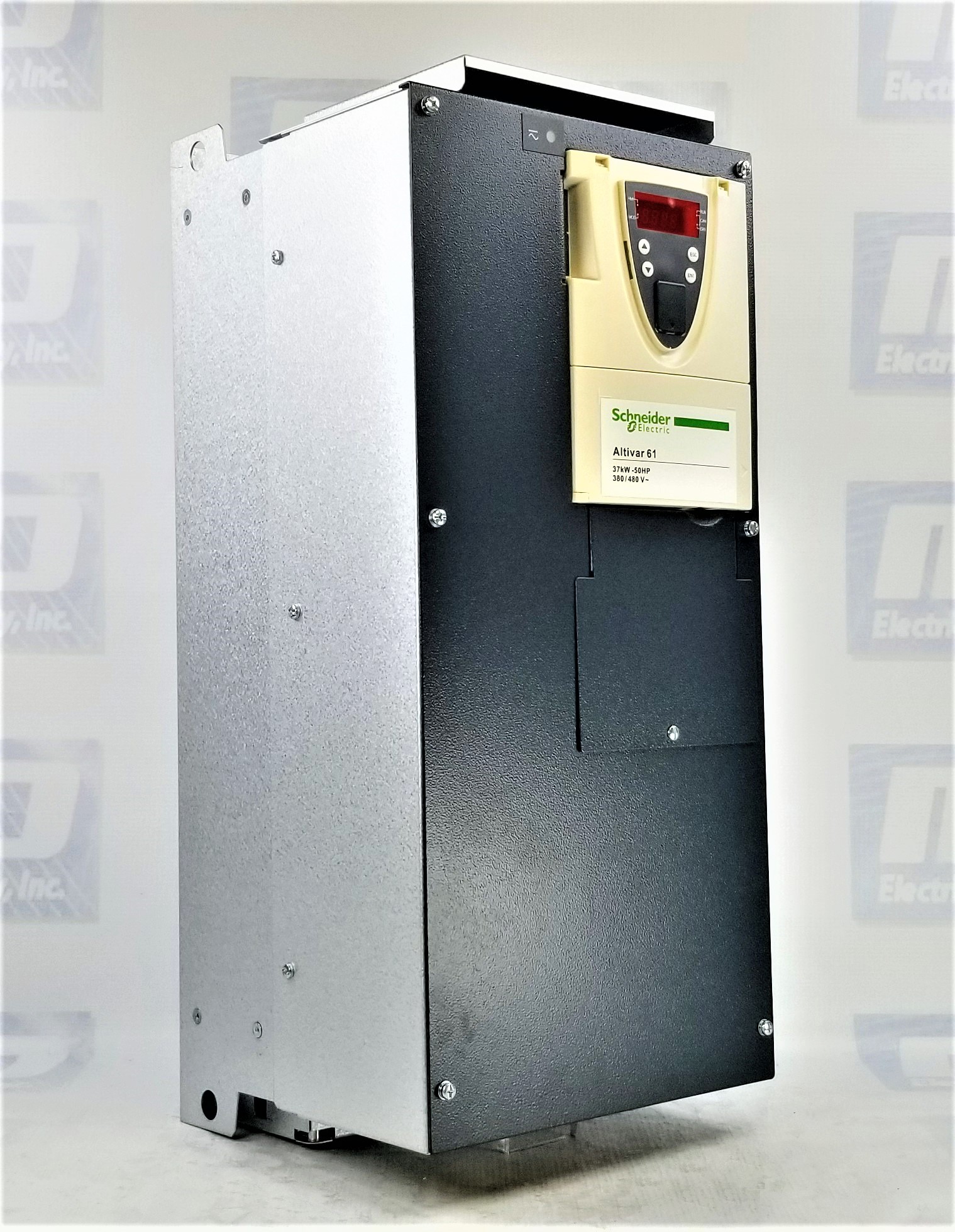

Schneider Electric ATV61HD37N4

ALTIVAR 61 VARIABLE SPEED DRIVE ATV61 37 KW 50 HP 3-PHASE 480 VOLT EMC IP20
5/5
5 ratings

Select Condition

Refurbished

1 in stock

New

4 in stock

$2,997.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
Part NumberATV61HD37N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Application specificPumping/ventilation
Phases3 Phase
Motor power37 kW, 3 phase 380...480 V
Power supply380...480 V - 15...10 %
EMC filterLevel 3 EMC filter
Line current69 A 480 V 3 phase 37 kW / 50 hp 84 A 380 V 3 phase 37 kW / 50 hp
Assembly typeWith heat sink
Communication port protocolCANopen/Modbus
Max transient current94.8 A 60 s, 3 phase
Power supply frequency50...60 Hz - 5...5 %
Output frequency0.1…599 Hz
Speed range1…100 in open-loop mode, without speed feedback

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61HD37N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HD37N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61HD37N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 63lbs

Want it shipped today?

  • Order within the next 10 hours and 28 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61HD37N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV61HD37N4 Overview

Unveiling the Schneider Electric ATV61HD37N4: A Versatile AC Drive Solution

Manufacturer: Schneider Electric

Schneider Electric introduces the ATV61HD37N4, a high-performance AC Drive tailored to meet the demanding requirements of industrial applications. With Schneider Electric's reputation for innovation and reliability, this drive offers advanced features and robust construction for superior performance.

Tailored for Pumping and Ventilation Applications

The ATV61HD37N4 is designed specifically for pumping and ventilation applications, offering precise control and efficient operation in environments where reliable airflow and fluid management are essential. With its specialized features, this AC Drive ensures optimal performance and energy efficiency in diverse industrial settings.

Powerful 3-Phase Operation

Operating on a 3-phase power system, the ATV61HD37N4 delivers a motor power of 37 kW within a voltage range of 380 to 480 V. Whether driving pumps, fans, or other equipment, this drive provides the necessary power and stability to meet the demands of industrial operations.

Robust Construction with Heat Sink Assembly

Featuring a robust assembly with an integrated heat sink, the ATV61HD37N4 ensures efficient heat dissipation, allowing for continuous operation even under demanding conditions. This design minimizes the risk of overheating and extends the lifespan of critical components, reducing maintenance requirements and downtime.

Advanced Communication and Control

Equipped with a CANopen/Modbus communication port protocol, the ATV61HD37N4 offers seamless integration into automation networks, allowing for easy monitoring and control of drive parameters. This communication capability enhances flexibility and scalability, enabling streamlined operation in complex industrial environments.

Precision Speed Control and Wide Frequency Range

With an output frequency range of 0.1 to 599 Hz, the ATV61HD37N4 provides precise speed control for a wide range of applications. Whether operating in open-loop mode or closed-loop mode with speed feedback, this drive offers exceptional accuracy and responsiveness to meet dynamic operational requirements.

Ensuring Stability with EMC Filter and Transient Current Protection

The ATV61HD37N4 is equipped with a Level 3 EMC filter to minimize electromagnetic interference and ensure stable operation in sensitive electronic environments. Additionally, it features transient current protection, with a maximum transient current rating of 94.8 A for 60 seconds, providing robust protection against power surges and fluctuations.

Specifications at a Glance

Part Number: ATV61HD37N4

Manufacturer: Schneider Electric

Type: AC Drives

Application: Pumping/Ventilation

Phases: 3 Phase

Motor Power: 37 kW, 3 Phase 380-480 V

Power Supply: 380-480 V, -15 to +10%

EMC Filter: Level 3 EMC Filter

Line Current: 69 A (480 V), 84 A (380 V)

Assembly Type: With Heat Sink

Communication Port Protocol: CANopen/Modbus

Max Transient Current: 94.8 A (60 s, 3 Phase)

Power Supply Frequency: 50-60 Hz, -5 to +5%

Output Frequency: 0.1-599 Hz

Speed Range: 1-100 in Open-Loop Mode, Without Speed Feedback

Revolutionizing Performance: The Schneider Electric ATV61HD37N4 AC Drive

Manufacturer: Schneider Electric

Schneider Electric introduces the ATV61HD37N4 AC Drive, a high-performance solution designed to elevate control and efficiency in industrial applications. With Schneider Electric's reputation for innovation and reliability, this AC drive delivers precision and power to meet the demands of modern manufacturing.

Unleashing the Potential: ATV61HD37N4 Overview

The ATV61HD37N4 is a versatile AC drive tailored for specific applications, notably pumping and ventilation systems. With its robust design and advanced features, this drive offers exceptional control and flexibility, making it ideal for a wide range of industrial processes.

Powerful Performance: Key Specifications

Equipped with a 37 kW motor power rating and designed for 3-phase power supply within the range of 380 to 480 volts, the ATV61HD37N4 ensures optimal performance in demanding applications. With an EMC filter ensuring Level 3 EMC compliance, this drive minimizes electromagnetic interference, enhancing system reliability.

Customized Assembly: With Heat Sink

The ATV61HD37N4 comes with an integrated heat sink assembly, providing efficient thermal management to maintain optimal operating temperatures. This feature ensures prolonged component lifespan and reliable performance even in harsh operating environments.

Seamless Communication: CANopen/Modbus Protocol

Featuring a communication port supporting CANopen and Modbus protocols, the ATV61HD37N4 facilitates seamless integration into industrial networks. This enables real-time monitoring and control, enhancing operational efficiency and responsiveness.

FAQ

What are the typical applications for the ATV61HD37N4 AC Drive?

The ATV61HD37N4 is specifically designed for pumping and ventilation systems but can also be used in various other industrial applications requiring precise motor control and speed regulation.

What is the maximum transient current rating of the ATV61HD37N4?

The ATV61HD37N4 can handle a maximum transient current of 94.8 A for 60 seconds in 3-phase operation, ensuring reliable performance under transient load conditions.

What is the power supply frequency range supported by the ATV61HD37N4?

The ATV61HD37N4 supports power supply frequencies ranging from 50 to 60 Hz, with a tolerance of ±5%, providing compatibility with a wide range of power systems.

What speed range does the ATV61HD37N4 offer in open-loop mode?

In open-loop mode, the ATV61HD37N4 offers a speed range from 1 to 100, allowing for precise speed control without the need for speed feedback devices.

Does the ATV61HD37N4 support motor protection features?

Yes, the ATV61HD37N4 includes built-in motor protection features such as overload protection, short-circuit protection, and thermal protection, ensuring the safe and reliable operation of connected motors.
