ATV61HD55N4

2-year Warranty

Same Day Shipping

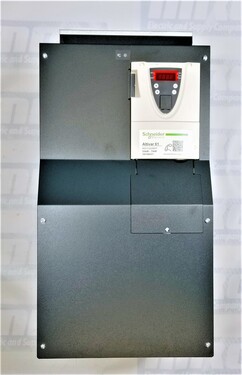

Schneider Electric ATV61HD55N4

ALTIVAR 61 VARIABLE SPEED DRIVE ATV61 - 45KW / 690V - 75HP / 575V - IP20

5/5
1 rating

Select Condition

Refurbished

Request Quote

New

5 in stock

$5,997.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
Part NumberATV61HD55N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Range of productAltivar 61
120 A for 380 V 3 phases 55 kW / 75 hp
12...16 kHz with derating factor
Voltage/frequency ratio, 5 points
Voltage/frequency ratio - Energy Saving, quadratic U/f
Voltage/frequency ratio, 2 points
CANopen
Communication card for BACnet
Communication card for CC-Link
Controller inside programmable card
Communication card for DeviceNet
Communication card for EtherNet/IP
Communication card for Fipio
I/O extension card
Communication card for Interbus-S
Communication card for LonWorks
Communication card for METASYS N2
Communication card for Modbus Plus
Communication card for Modbus TCP
Communication card for Modbus/Uni-Telway
Multi-pump card
Communication card for Profibus DP
Communication card for Profibus DP V1
Product or component typeVariable speed drive
Product specific applicationPumping and ventilation machine
Component nameATV61
Motor power kW55 kW, 3 phases at 380...480 V
Motor power hp75 hp, 3 phases at 380...480 V
Power supply voltage380...480 V - 15...10 %
Supply number of phases3 phases
Line current101 A for 480 V 3 phases 55 kW / 75 hp
EMC filterLevel 3 EMC filter
Assembly styleWith heat sink
Apparent power79 kVA at 380 V 3 phases 55 kW / 75 hp
Maximum prospective line Isc22 kA for 3 phases
Maximum transient current139.2 A for 60 s, 3 phases
Nominal switching frequency12 kHz
Switching frequency1...16 kHz adjustable
Asynchronous motor controlFlux vector control without sensor, standard
Synchronous motor control profileVector control without sensor, standard
Communication port protocolModbus
Type of polarizationNo impedance for Modbus
Option cardCommunication card for APOGEE FLN
