ATV61HD75N4

2-year Warranty

Same Day Shipping

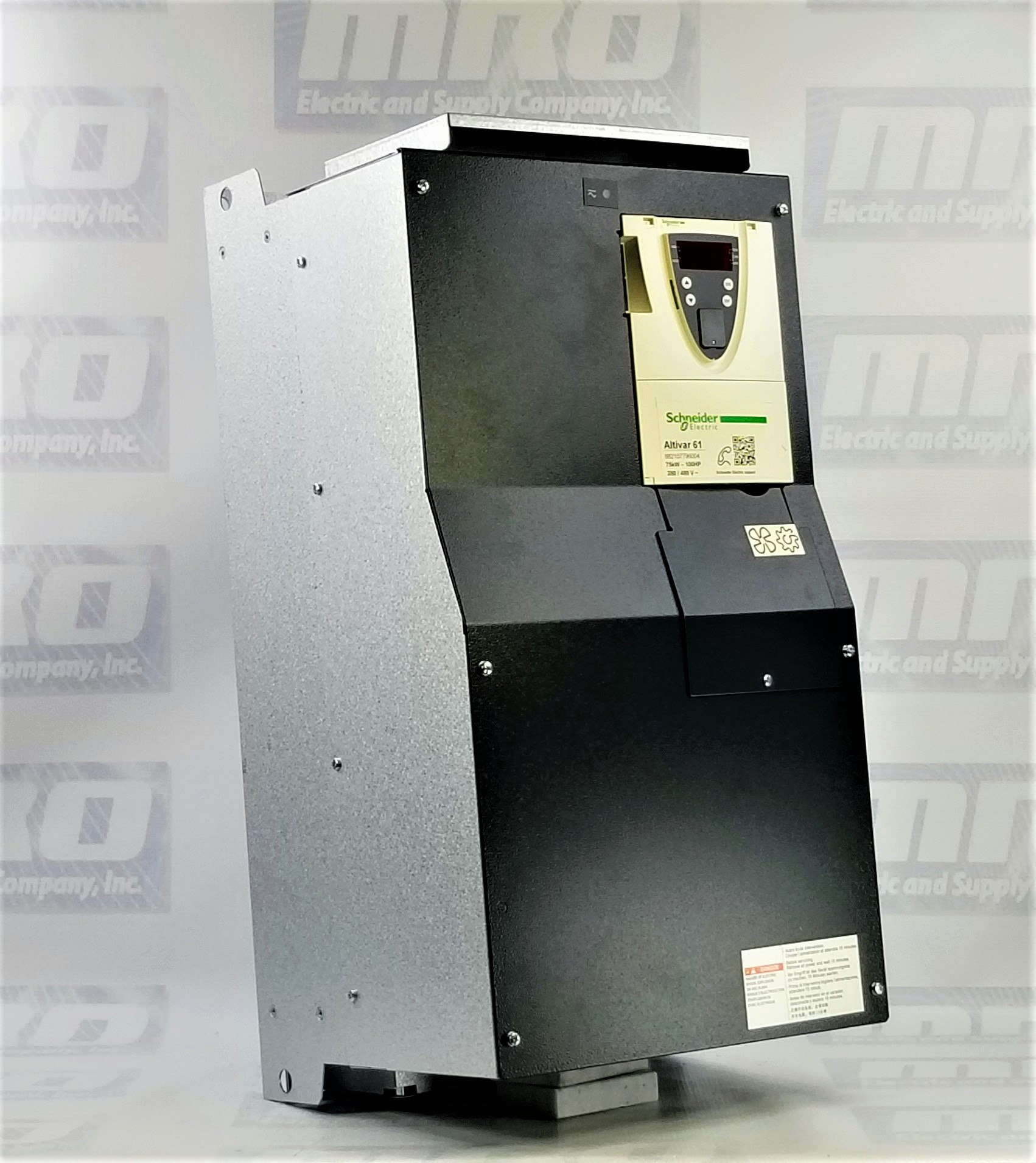

Schneider Electric ATV61HD75N4

ALTIVAR 61 SPEED DRIVE 460 VOLT 100 HP

5/5
2 ratings

Select Condition

Refurbished

Request Quote

New

1 in stock

$6,997.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberATV61HD75N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Range of productAltivar 61
167 A for 380 V 3 phases 75 kW / 100 hp
12...16 kHz with derating factor
Voltage/frequency ratio, 5 points
Flux vector control without sensor, standard
Voltage/frequency ratio, 2 points
Modbus
Communication card for BACnet
Communication card for CC-Link
Controller inside programmable card
Communication card for DeviceNet
Communication card for EtherNet/IP
Communication card for Fipio
I/O extension card
Communication card for Interbus-S
Communication card for LonWorks
Communication card for METASYS N2
Communication card for Modbus Plus
Communication card for Modbus TCP
Communication card for Modbus/Uni-Telway
Multi-pump card
Communication card for Profibus DP
Communication card for Profibus DP V1
Product or component typeVariable speed drive
Product specific applicationPumping and ventilation machine
Component nameATV61
Motor power kW75 kW, 3 phases at 380...480 V
Motor power hp100 hp, 3 phases at 380...480 V
Power supply voltage380...480 V - 15...10 %
Supply number of phases3 phases
Line current137 A for 480 V 3 phases 75 kW / 100 hp
EMC filterLevel 3 EMC filter
Assembly styleWith heat sink
Apparent power109.9 kVA at 380 V 3 phases 75 kW / 100 hp
Maximum prospective line Isc22 kA for 3 phases
Maximum transient current192 A for 60 s, 3 phases
Nominal switching frequency12 kHz
Switching frequency1...16 kHz adjustable
Asynchronous motor controlVoltage/frequency ratio - Energy Saving, quadratic U/f
Synchronous motor control profileVector control without sensor, standard
Communication port protocolCANopen
Type of polarizationNo impedance for Modbus
Option cardCommunication card for APOGEE FLN

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61HD75N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HD75N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61HD75N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 17 hours and 10 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61HD75N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV61HD75N4 Overview

Schneider Electric ATV61HD75N4 AC Drive

The Schneider Electric ATV61HD75N4 is an advanced AC drive from the Altivar 61 range designed to provide exceptional performance and control for a variety of industrial applications. This variable-speed drive is engineered to handle the demanding requirements of pumping and ventilation systems, among other motor-driven machines. Its robust construction and versatile features make it a reliable solution for optimizing motor control, enhancing energy efficiency, and ensuring seamless operation in industrial environments.

Motor Power and Efficiency

The ATV61HD75N4 can drive motors with a power rating of 75 kW (100 horsepower) in a 3-phase configuration at a supply voltage range of 380 to 480 volts. It can handle a line current of up to 137 amps at 480 volts, providing substantial power for heavy-duty applications. The drive's apparent power rating is 109.9 kVA at 380 volts, making it suitable for many applications that demand high power output. Additionally, it features a voltage/frequency ratio with five-point control, allowing for precise and efficient motor operation.

Advanced Motor Control Capabilities

This AC drive offers a variety of motor control methods, including flux vector control without a sensor, which is the standard for high-performance motor control applications. It also supports voltage/frequency ratio control with two—and five-point settings, providing flexibility in how the drive adapts to different motor types and application needs. The ATV61HD75N4 is designed to optimize energy consumption through its energy-saving mode, which is particularly useful for variable torque applications such as fans and pumps.

Flexible Communication Options

The ATV61HD75N4 has a wide range of communication card options to ensure seamless integration into modern automation systems. These include Modbus, Modbus TCP, Modbus Plus, DeviceNet, Profibus DP, Profibus DP V1, EtherNet/IP, LonWorks, Interbus-S, Fipio, BACnet, and APOGEE FLN, among others. These options enable the drive to communicate with virtually any network protocol used in industrial environments, ensuring compatibility and flexibility in system design. This makes the drive particularly suitable for applications where communication with other devices and control systems is critical.

Enhanced Protection and Durability

The ATV61HD75N4 is built to withstand challenging industrial conditions. It features a level 3 EMC filter to reduce electromagnetic interference and ensure stable operation in environments with high electrical noise. The drive is designed with a built-in heat sink, enhancing its thermal management capabilities and allowing it to operate reliably within a temperature range of -10 to +50 degrees Celsius. The maximum transient current capability is 192 amps for 60 seconds, ensuring the drive can handle short bursts of high power without compromising performance or safety.

Versatile Application Potential

This variable speed drive is ideal for various applications, particularly those involving pumping and ventilation systems. It can be deployed in HVAC systems, water treatment plants, industrial process cooling systems, and more, where precise motor control and energy efficiency are paramount. The multi-pump card and I/O extension card options further expand their application range, enabling the power of multiple pumps and additional input/output functionalities.

User-Friendly Features and Integration

The ATV61HD75N4 is designed for easy installation and integration. It supports CANopen as a standard communication protocol, simplifying networking and control. The drive’s adjustable switching frequency, ranging from 1 to 16 kHz, allows users to tailor the drive’s performance to specific motor and application requirements, reducing noise and optimizing efficiency. The drive also features internal options for overvoltage, undervoltage, and overload protection, providing an additional layer of security against unexpected operational conditions.

Warranty and Additional Benefits

The ATV61HD75N4 comes with a 2-year MRO Electric and Supply warranty, offering peace of mind and quality assurance. Customers also benefit from free shipping, making this AC drive a cost-effective and reliable choice for enhancing industrial motor control applications. With its comprehensive feature set, robust construction, and advanced control capabilities, the Schneider Electric ATV61HD75N4 stands out as a top-tier solution for various demanding applications.

FAQ for the Schneider Electric ATV61HD75N4 Variable Speed Drive

What is the ATV61HD75N4?

The ATV61HD75N4 is a variable speed drive (VSD) from Schneider Electric's Altivar 61 series, designed for controlling three-phase asynchronous motors. It suits applications requiring high performance, energy efficiency, and easy integration in HVAC, pumping, and other industrial systems.

What are the key specifications of the ATV61HD75N4?

  • Power Rating: 75 kW (100 HP)
  • Voltage Range: 380-480 V AC, three-phase
  • Current Rating: 150 A
  • Frequency Range: 0.5 to 500 Hz
  • Ingress Protection: IP20
  • Operating Temperature: -10°C to +50°C (+14°F to +122°F)

What communication protocols are supported by the ATV61HD75N4?

The ATV61HD75N4 supports multiple communication protocols, including Modbus, Ethernet/IP, and BacNet. It can also be expanded with optional communication cards for other protocols such as Profibus, DeviceNet, and CANopen.

What are the main functions and features of the ATV61HD75N4?

  • Energy Saving: Optimized motor control algorithms for reduced energy consumption.
  • Advanced Motor Control: Vector control and V/f control for high precision.
  • User-Friendly Interface: Integrated graphic display and navigation buttons for easy parameterization and monitoring.
  • Safety Features: Includes safety stop function, fault relay, and thermal protection for the drive and motor.
  • Built-in EMC Filter: Compliance with electromagnetic compatibility standards.

Can the ATV61HD75N4 be used for regenerative braking?

The ATV61HD75N4 supports regenerative braking when equipped with an optional braking resistor or a DC bus connection. This functionality helps in applications requiring quick stopping or deceleration of the motor.

How can the drive be monitored and configured?

The drive can be monitored and configured through its integrated display and keypad or via Schneider Electric’s SoMove software. Remote monitoring and control are also possible using the communication ports.

Is the ATV61HD75N4 compatible with any environmental conditions?

The drive is designed to operate in environments with temperatures ranging from -10°C to +50°C. It features a conformal coating to protect against dust, humidity, and corrosive elements. Additional protective enclosures may be necessary for harsher environments.

What type of motor can be controlled using the ATV61HD75N4?

The ATV61HD75N4 can control three-phase asynchronous (induction) motors. It supports both squirrel cage and wound rotor motor types, allowing flexible use in various applications.

Are there any accessories available for the ATV61HD75N4?

Yes, there are several accessories available for the ATV61HD75N4, including:

  • Communication modules for additional protocols.
  • Braking resistors for regenerative braking applications.
  • Remote graphic display terminals.
  • Line chokes and filters for enhanced EMC performance

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV61HD75N4, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV61HD75N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
