ATV61HU22N4

2-year Warranty

Same Day Shipping

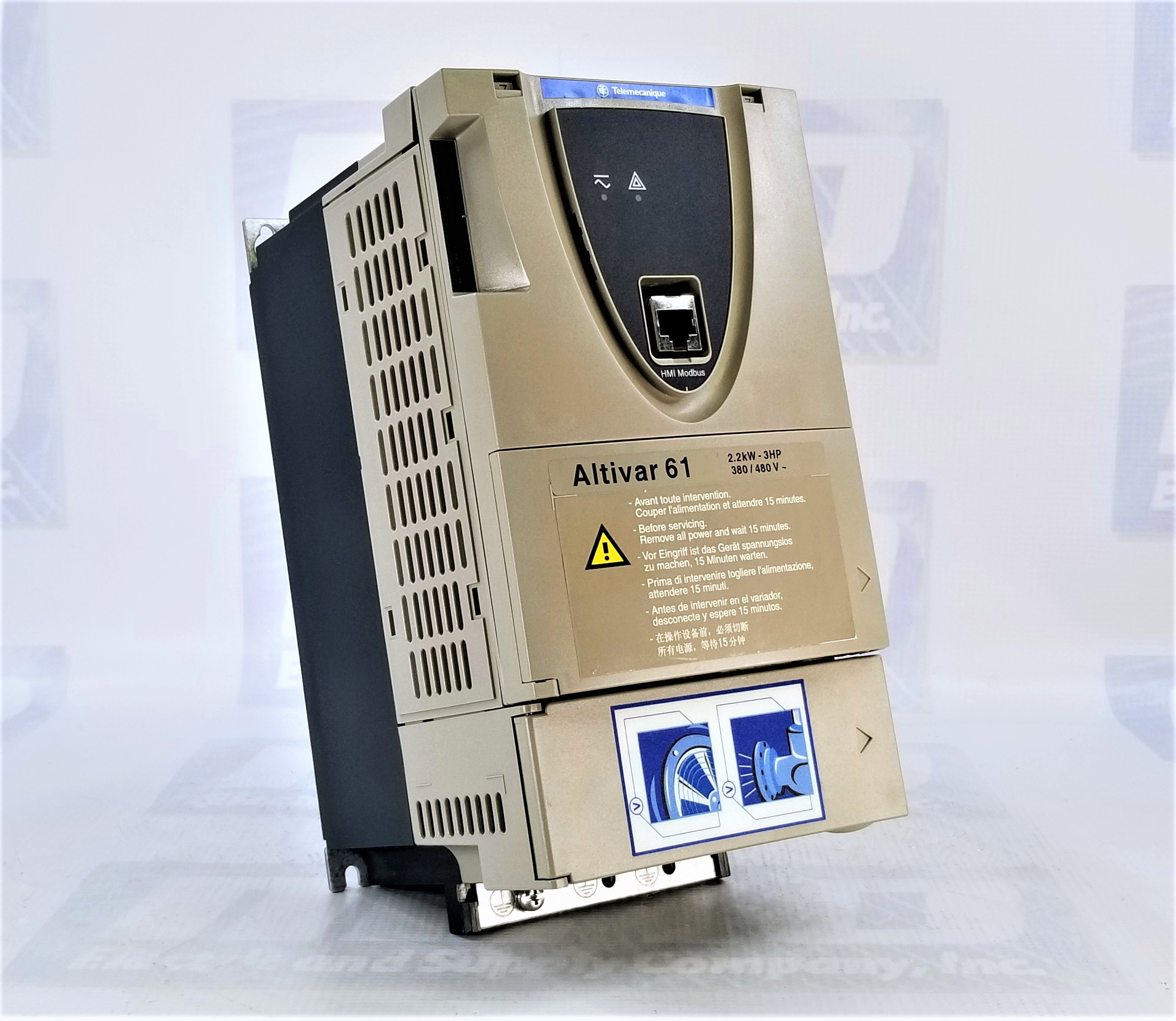

Schneider Electric ATV61HU22N4

Rated 5/5 on 3 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: 3-Phase 2.2 kW 460 Volt AC Drive

PRODUCT TYPE INFO: Altivar 61


5 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberATV61HU22N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Range of productAltivar 61
8.2 A for 380 V 3 phases 2.2 kW / 3 hp
12...16 kHz with derating factor
Flux vector control without sensor, standard
Voltage/frequency ratio, 5 points
Voltage/frequency ratio - Energy Saving, quadratic U/f
CANopen
Communication card for BACnet
Communication card for CC-Link
Controller inside programmable card
Communication card for DeviceNet
Communication card for EtherNet/IP
Communication card for Fipio
I/O extension card
Communication card for Interbus-S
Communication card for LonWorks
Communication card for METASYS N2
Communication card for Modbus Plus
Communication card for Modbus TCP
Communication card for Modbus/Uni-Telway
Multi-pump card
Communication card for Profibus DP
Communication card for Profibus DP V1
Product or component typeVariable speed drive
Product specific applicationPumping and ventilation machine
Component nameATV61
Motor power kW2.2 kW, 3 phases at 380...480 V
Motor power hp3 hp, 3 phases at 380...480 V
Power supply voltage380...480 V - 15...10 %
Supply number of phases3 phases
Line current7.1 A for 480 V 3 phases 2.2 kW / 3 hp
EMC filterLevel 3 EMC filter
Assembly styleWith heat sink
Apparent power5.4 kVA at 380 V 3 phases 2.2 kW / 3 hp
Maximum prospective line Isc5 kA for 3 phases
Maximum transient current6.9 A for 60 s, 3 phases
Nominal switching frequency12 kHz
Switching frequency1...16 kHz adjustable
Asynchronous motor controlVoltage/frequency ratio, 2 points
Synchronous motor control profileVector control without sensor, standard
Communication port protocolModbus
Type of polarizationNo impedance for Modbus
Option cardCommunication card for APOGEE FLN

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61HU22N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HU22N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61HU22N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 10lbs

Want it shipped today?

  • Order within the next 8 hours and 38 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61HU22N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV61HU22N4 Overview

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

Schneider Electric ATV61HU22N4

The ATV61HU22N4 is a variable speed drive showcasing advanced features and capabilities tailored for pumping and ventilation machines. This model, part of the Altivar 61 range from FANUC, is a variable-speed drive with a power rating of 2.2 kW (3 HP) and is specifically designed for three-phase systems operating at 380-480 V.

Key Technical Specifications:

Variable Speed Drive for Pumping and Ventilation:

  • The ATV61HU22N4 is purpose-built for applications in pumping and ventilation machines. This specialization ensures that it meets the unique requirements and challenges posed by these industrial processes, delivering optimal performance and efficiency.

Power and Voltage Ratings:

  • With a motor power of 2.2 kW (3 HP), the drive caters to the power demands of pumping and ventilation systems. The operating voltage range of 380-480 V ensures compatibility with standard three-phase power supplies commonly found in industrial settings.

EMC IP20 with Graphical Terminal:

  • The drive is designed with an EMC (Electromagnetic Compatibility) level of IP20, offering protection against electromagnetic interference. The inclusion of a graphical terminal enhances the user interface, providing operators with a visual representation of drive parameters and performance.

Assembly Style and Apparent Power:

  • The ATV61HU22N4 features an assembly style with a heat sink, promoting effective heat dissipation. The apparent power is rated at 5.4 kVA for 380 V, ensuring that the drive can handle the reactive power component efficiently.

Frequency and Speed Control:

  • The drive operates over a frequency range of 0.1 to 599 Hz, allowing precise control over motor speed. In open-loop mode, it can achieve a speed range of 1 to 100 without the need for speed feedback, contributing to versatile and adaptable performance.

Communication Ports and Protocols:

  • Equipped with communication ports supporting Modbus and CANopen protocols, the ATV61HU22N4 facilitates seamless integration into industrial networks. This connectivity enhances the drive's ability to communicate with other devices and systems in the automation ecosystem.

Safety and Protection Features:

  • The drive incorporates multiple safety and protection features, including protection against input phase loss, line supply overvoltage, line supply undervoltage, overcurrent between output phases and earth, and thermal protection for both the drive and motor.

Diagnostic LEDs and Display Unit:

  • A diagnostic LED (red) provides visual cues for drive voltage status. The graphical terminal serves as an additional display unit, offering operators a comprehensive view of drive parameters and diagnostics.

Environmental Considerations:

  • The ATV61HU22N4 is designed to operate within a wide temperature range, from -10 to 60 °C without derating and up to 70 °C for storage. Its robust design and adherence to environmental standards make it suitable for a variety of industrial conditions.

Compliance and Certification:

  • The drive complies with various international standards, including IEC 61800-5-1 and EN 55011 class A group 1. It holds certifications from CSA, GOST, UL, DNV, NOM 117, and C-Tick, attesting to its quality and reliability.

In summary, the ATV61HU22N4 is a versatile and high-performance variable-speed drive designed to meet the specific demands of pumping and ventilation applications. With advanced features, communication capabilities, and robust safety measures, it stands as a reliable and efficient solution in the ever-evolving landscape of industrial automation. Its integration of advanced technologies and adherence to international standards position it as a key player in the optimization of motor control in industrial processes.
