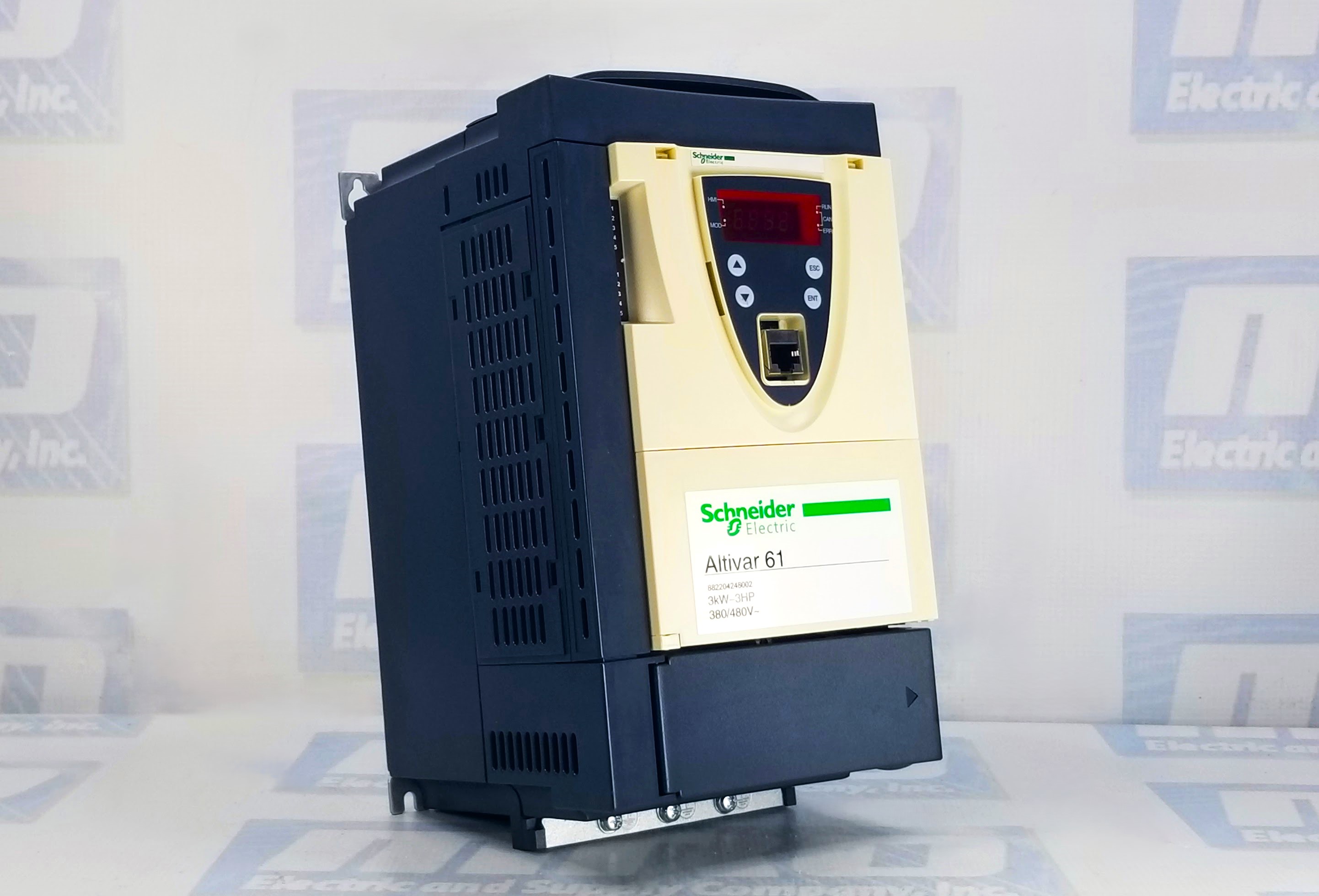

ALTIVAR 61 ATV61 3 KW 480V 3 PHASES EMC IP20 WITH GRAPH TERM
Available
Free Shipping
2 Year warranty
Part Number | ATV61HU30N4 |
Manufacturer | Schneider Electric |
Type | AC Drives |
Warranty | 2 Year |
Range of product | Altivar 61 |
10.7 A for 380 V 3 phases 3 kW | |
12...16 kHz with derating factor | |
Voltage/frequency ratio, 5 points | |
Voltage/frequency ratio, 2 points | |
Flux vector control without sensor, standard | |
Modbus | |
Communication card for BACnet | |
Communication card for CC-Link | |
Controller inside programmable card | |
Communication card for DeviceNet | |
Communication card for EtherNet/IP |
Communication card for Fipio | |
I/O extension card | |
Communication card for Interbus-S | |
Communication card for LonWorks | |
Communication card for METASYS N2 | |
Communication card for Modbus Plus | |
Communication card for Modbus TCP | |
Communication card for Modbus/Uni-Telway | |
Multi-pump card | |
Communication card for Profibus DP | |
Communication card for Profibus DP V1 | |
Product or component type | Variable speed drive |
Product specific application | Pumping and ventilation machine |
Component name | ATV61 |
Motor power kW | 3 kW, 3 phases at 380...480 V |
Power supply voltage | 380...480 V - 15...10 % |
Supply number of phases | 3 phases |
Line current | 9 A for 480 V 3 phases 3 kW |
EMC filter | Class C2 EMC filter integrated |
Assembly style | With heat sink |
Apparent power | 7 kVA at 380 V 3 phases 3 kW |
Maximum prospective line Isc | 5 kA for 3 phases |
Maximum transient current | 9.3 A for 60 s, 3 phases |
Nominal switching frequency | 12 kHz |
Switching frequency | 1...16 kHz adjustable |
Asynchronous motor control | Voltage/frequency ratio - Energy Saving, quadratic U/f |
Synchronous motor control profile | Vector control without sensor, standard |
Communication port protocol | CANopen |
Type of polarization | No impedance for Modbus |
Option card | Communication card for APOGEE FLN |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV61HU30N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HU30N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV61HU30N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty ATV61HU30N4 for credit when ordering from MRO Electric
The Schneider Electric ATV61HU30N4 is a high-performance variable-speed AC drive explicitly designed to optimize the operation of pumping and ventilation machines. As a member of the Altivar 61 product range, this drive delivers advanced functionality and energy efficiency tailored to meet the demands of HVAC and industrial fluid movement applications. With a motor power rating of 3 kW and a three-phase voltage supply range of 380 to 480 volts (with a tolerance of -15% to +10%), it provides versatile operation in a broad spectrum of environments. The ATV61HU30N4 offers a line current of 9 A at 480 V and has an apparent power rating of 7 kVA at 380 V, indicating robust performance for medium-sized motor applications.
The drive includes a factory-integrated Class C2 EMC filter, ensuring compliance with electromagnetic compatibility standards. It is assembled with a heat sink, enhancing thermal management and promoting operational longevity. Its nominal switching frequency is 12 kHz, while the adjustable range spans from 1 to 16 kHz, offering flexibility to reduce noise and harmonics or to adapt to specific motor control needs. For transient conditions, the drive can handle a current of 9.3 A for up to 60 seconds, ensuring reliability during load spikes.
The ATV61HU30N4 supports control strategies such as voltage/frequency (V/f) ratio control—optimized for energy savings and suited for quadratic torque loads—and sensorless vector control, which provides precise motor regulation without the need for an external sensor. This dual compatibility makes it suitable for various asynchronous and synchronous motor applications.
Connectivity and communication are standout features of the ATV61HU30N4. It comes standard with Modbus and CANopen communication protocols, and it supports a wide array of optional communication cards, including BACnet, CC-Link, DeviceNet, EtherNet/IP, Fipio, Interbus-S, LonWorks, METASYS N2, Modbus Plus, Modbus TCP, Modbus/Uni-Telway, and Profibus DP/DP V1. This extensive support makes the drive ideal for integrating complex building automation systems and industrial networks. Additional options such as multi-pump cards and I/O extension cards enhance functionality, enabling expanded control schemes and feedback options.
The drive includes an internal programmable controller card, adding another control layer and customization. The device is rated for a maximum prospective line short-circuit current (Isc) of 5 kA, underscoring its robust design. Its type of polarization includes no impedance for Modbus, which enhances signal reliability in specific configurations. The product is backed by a two-year MRO Electric and Supply warranty, providing end users peace of mind and support.
What type of motor can the ATV61HU30N4 control?
The ATV61HU30N4 is designed to control both asynchronous and synchronous motors using voltage/frequency (V/f) control or sensorless vector control, offering great versatility for HVAC and industrial fluid applications.
Is the ATV61HU30N4 compatible with building automation systems?
Thanks to its wide range of optional communication cards, including BACnet, LonWorks, Modbus TCP, and METASYS N2, it is highly compatible with various systems.
Can the switching frequency be adjusted?
Absolutely. The switching frequency on the ATV61HU30N4 is adjustable between 1 and 16 kHz, allowing for customization based on noise reduction needs and motor performance.
What is the main application of this drive?
Its primary applications are in pumping and ventilation systems, making it ideal for HVAC and fluid handling installations.
Does it include EMC filtering?
A Class C2 EMC filter is integrated into the unit, helping meet electromagnetic compliance standards immediately.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV61HU30N4, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV61HU30N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
