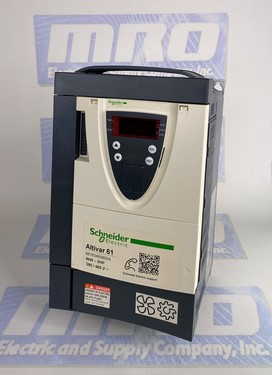

MANUFACTURER: Schneider Electric
DESCRIPTION: 3-Phase 4 kW 460 Volt AC Drive
PRODUCT TYPE INFO: Altivar 61
4 in stock
Free Shipping
2 Year warranty
Part Number | ATV61HU40N4 |
Manufacturer | Schneider Electric |
Type | AC Drives |
Warranty | 2 Year |
Range of product | Altivar 61 |
14.1 A for 380 V 3 phases 4 kW / 5 hp | |
12...16 kHz with derating factor | |
Voltage/frequency ratio, 2 points | |
Flux vector control without sensor, standard | |
Voltage/frequency ratio - Energy Saving, quadratic U/f | |
CANopen | |
Communication card for BACnet | |
Communication card for CC-Link | |
Controller inside programmable card | |
Communication card for DeviceNet | |
Communication card for EtherNet/IP |
Communication card for Fipio | |
I/O extension card | |
Communication card for Interbus-S | |
Communication card for LonWorks | |
Communication card for METASYS N2 | |
Communication card for Modbus Plus | |
Communication card for Modbus TCP | |
Communication card for Modbus/Uni-Telway | |
Multi-pump card | |
Communication card for Profibus DP | |
Communication card for Profibus DP V1 | |
Product or component type | Variable speed drive |
Product specific application | Pumping and ventilation machine |
Component name | ATV61 |
Motor power kW | 4 kW, 3 phases at 380...480 V |
Motor power hp | 5 hp, 3 phases at 380...480 V |
Power supply voltage | 380...480 V - 15...10 % |
Supply number of phases | 3 phases |
Line current | 11.5 A for 480 V 3 phases 4 kW / 5 hp |
EMC filter | Level 3 EMC filter |
Assembly style | With heat sink |
Apparent power | 9.3 kVA at 380 V 3 phases 4 kW / 5 hp |
Maximum prospective line Isc | 5 kA for 3 phases |
Maximum transient current | 12.6 A for 60 s, 3 phases |
Nominal switching frequency | 12 kHz |
Switching frequency | 1...16 kHz adjustable |
Asynchronous motor control | Voltage/frequency ratio, 5 points |
Synchronous motor control profile | Vector control without sensor, standard |
Communication port protocol | Modbus |
Type of polarization | No impedance for Modbus |
Option card | Communication card for APOGEE FLN |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV61HU40N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HU40N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV61HU40N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty ATV61HU40N4 for credit when ordering from MRO Electric
The ATV 61 HU40N4 ATV 61 variable speed drive for synchronous motor control is manufactured by Schneider Electric. Manufactured for pumping and ventilation machines, the Altivar 61 drive is a 3-phase module with a nominal switching frequency of 12 kHz. The ATV 61 HU40N4 module has a supply voltage of 380 to 480 V and 50 to 60 Hz. The Altivar 61 series drive module ATV 61 HU40N4 is an IP 20 module with an integrated EMC filter. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
The Altivar 61 variable speed drive weighs 4.0 kg. The max transient current (for 60 s) is 12.6 A. The maximum continuous current at 380 V (IEC) is 10.5 A and the maximum continuous current at 460 V (NEC) is 7.6 A. The motor power for the Altivar 611 ATV 61 HU40N4 is 4 kW and 5 hp. The line current for the Schneider Electric ATV 61 HU40N4 is 14.1 A at 380 V and 11.5 A at 480 V. The apparent power at 380 V is 9.3 kVA. The maximum prospective line ISC is 5 kA. The Schneider Electric ATV 61 drive module has a Level 3 EMC filter. The ATV 61 HU40N4 has a Level 3 EMC filter.
The two communication protocols for the Schneider Electric ATV 61 HU40N4 are Modbus and CANopen.
Several option cards are available for this ATV61 module:
For diagnostic purposes, the Schneider Electric ATV 61 HU40N4 has one red LED for drive voltage. The speed range for this ATV 61 module 1 to 100 in an open-loop mode without speed feedback - with accuracy at +/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback. The torque accuracy is +/- 15 % in open-loop mode, without speed feedback. The transient over-torque is 130 % of nominal motor torque +/- 10 % for 60 s. The braking torque for the ATV 61 HU40N4 drive module is <= 125 % with a braking resistor 30 % without a braking resistor.
The Schneider Electric ATV 61 HU40N4 has several types of cable and mounting options:
With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC
With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC
Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC
Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV61HU40N4, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV61HU40N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
