ATV61HU40M3

2-year Warranty

Same Day Shipping

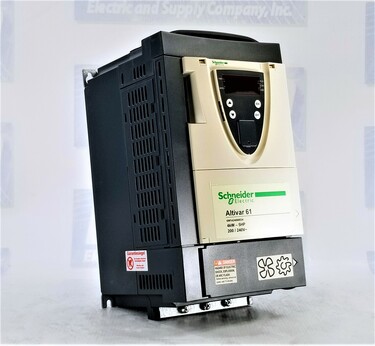

Schneider Electric ATV61HU40M3

Rated 4.5/5 on 2 reviews

Rate this product


MANUFACTURER: Schneider Electric
DESCRIPTION: ATV61 4 kW 5HP 240V single phase EMC IP20 with graphic term
PRODUCT TYPE INFO: Altivar 61


2 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberATV61HU40M3
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Range of productAltivar 61
4 kW, 3 phases at 200...240 V
Single phase
22.9 A for 240 V 3 phases 4 kW / 5 hp
25.8 A for 200 V 3 phases 4 kW / 5 hp
25.9 A for 200 V single phase 3 kW
9.5 kVA at 240 V 3 phases 4 kW / 5 hp
5 kA for single phase
16.4 A for 60 s, single phase
12...16 kHz with derating factor
Voltage/frequency ratio - Energy Saving, quadratic U/f
Voltage/frequency ratio, 2 points
Voltage/frequency ratio, 5 points
Modbus
Communication card for BACnet
Communication card for CC-Link
Controller inside programmable card
Communication card for DeviceNet
Communication card for EtherNet/IP
Communication card for Fipio
I/O extension card
Communication card for Interbus-S
Communication card for LonWorks
Communication card for METASYS N2
Communication card for Modbus Plus
Communication card for Modbus TCP
Communication card for Modbus/Uni-Telway
Multi-pump card
Communication card for Profibus DP
Communication card for Profibus DP V1
Product or component typeVariable speed drive
Product specific applicationPumping and ventilation machine
Component nameATV61
Motor power kW3 kW, single phase at 200...240 V
Motor power hp5 hp, 3 phases at 200...240 V
Power supply voltage200...240 V - 15...10 %
Supply number of phases3 phases
Line current22 A for 240 V single phase 3 kW
EMC filterLevel 3 EMC filter
Assembly styleWith heat sink
Apparent power5.3 kVA at 240 V single phase 3 kW
Maximum prospective line Isc5 kA for 3 phases
Maximum transient current21 A for 60 s, 3 phases
Nominal switching frequency12 kHz
Switching frequency1...16 kHz adjustable
Asynchronous motor controlFlux vector control without sensor, standard
Synchronous motor control profileVector control without sensor, standard
Communication port protocolCANopen
Type of polarizationNo impedance for Modbus
Option cardCommunication card for APOGEE FLN

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61HU40M3 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HU40M3 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61HU40M3, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 12 hours and 2 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61HU40M3 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV61HU40M3 Overview

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
