ATV630C22N4

2-year Warranty

Same Day Shipping

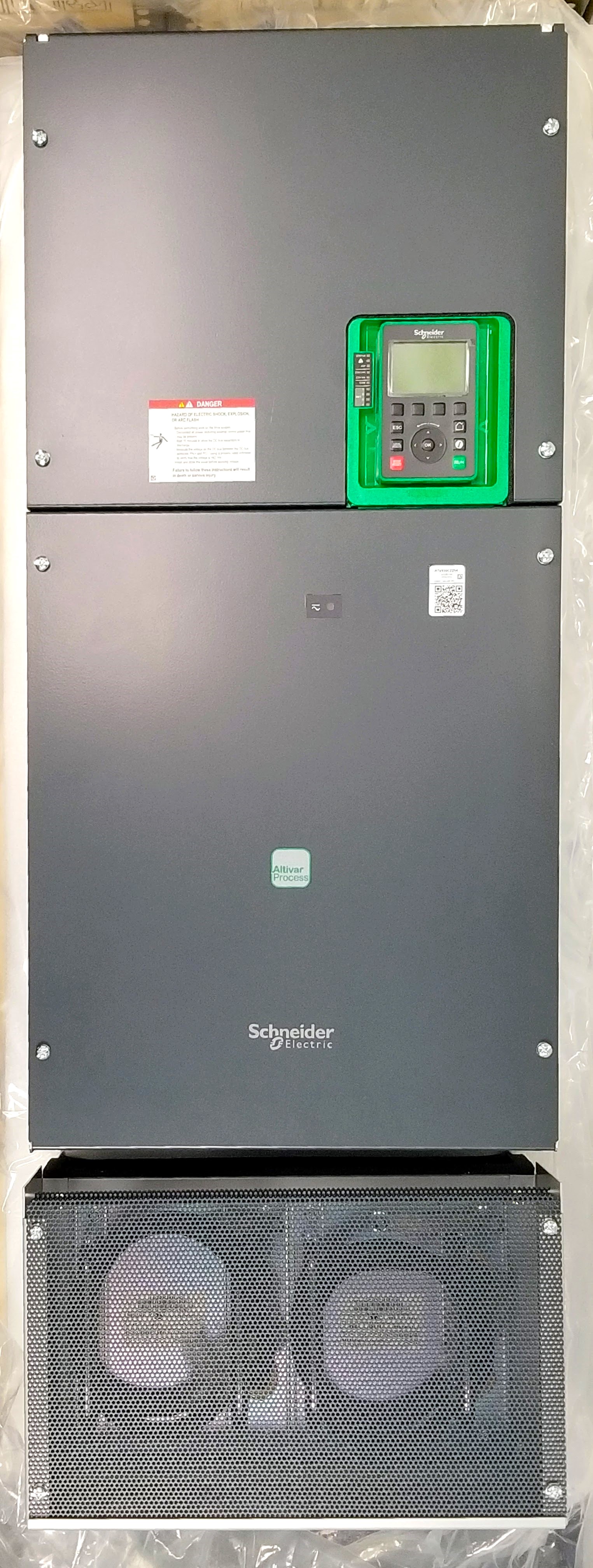

Schneider Electric ATV630C22N4

DRIVE, ALTIVAR PROCESS ATV600, VARIABLE SPEED, 220KW, THREE-PHASE SUPPLY VOLTAGE: 380-480 VAC, 50/60 HZ, WALL-MOUNTING DRIVES

5/5
1 rating

Select Condition

Refurbished

Request Quote

New

1 in stock

$11,791.00

Request a Quote
  • Ships Today
  • 2 Year Warranty
Part NumberATV630C22N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
RangeAltivar Process
CategoryATV600
DescriptionVariable Speed Drive
Power rating220 kW
Supply voltage380–480 VAC
Phase3-PH
Frequncy50/60 Hz
MountWall mount
Horsepower350 HP
Internal motor overload protectionClass 10
ProtectionIP00
Output0-380-480 3-PH
Current Output427 A

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV630C22N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV630C22N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV630C22N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 150lbs

Want it shipped tomorrow?

  • Order within the next 20 hours and 5 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV630C22N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV630C22N4 Overview

Schneider Electric ATV630C22N4 Variable Speed Drive

The Schneider Electric ATV630C22N4 is a high-performance, wall-mounted variable speed drive for energy efficiency, reliability, and versatility in industrial applications. As part of the Altivar Process ATV600 series, this drive is specifically engineered to optimize process control, reduce energy usage, and increase motor lifespan across various sectors, including water treatment, HVAC, material handling, and more. With a power rating of 220 kW, this robust drive is well-suited for controlling large motors and maintaining operational consistency in demanding environments.

Power and Supply Specifications

This drive operates on a three-phase supply voltage of 380–480 VAC, with a frequency range of 50/60 Hz, providing compatibility with global industrial power systems. The 220 kW rating ensures it can handle substantial motor loads, offering precise control over motor speed and torque. Its dependable performance makes it ideal for large-scale operations that require sustained power and efficient energy management, while maintaining compliance with international electrical standards.

Advanced Control and Energy Efficiency

The ATV630C22N4 leverages advanced motor control algorithms to enhance performance, reduce energy consumption, and improve process stability. Designed with embedded intelligence, it adapts to process demands in real time, thereby optimizing energy use and reducing operational costs. The drive includes built-in monitoring, diagnostics, and predictive maintenance features, ensuring plant managers have the data they need to maintain system efficiency and uptime. Additionally, it supports various control modes, including voltage/frequency ratio, sensorless flux vector control, and energy-saving applications.

Installation and Integration

Wall-mounted for space-saving installation, the ATV630C22N4 is engineered for straightforward integration into new and existing systems. Its compact yet durable design facilitates installation in industrial control rooms and electrical enclosures, while the intuitive user interface simplifies commissioning and daily operations. With compatibility for multiple industrial communication protocols, including Modbus and Ethernet, it seamlessly integrates into modern automation networks, making it a highly adaptable solution for centralized control systems.

Durability and Support

Schneider Electric, a global leader in automation and energy management, manufactures the ATV630C22N4, which is built to endure the harsh conditions typical of industrial environments. It is enclosed in a sturdy housing that protects it from dust, heat, and vibrations. This drive also includes a 2-year MRO Electric and Supply warranty, providing additional peace of mind and product assurance. With Schneider's global support infrastructure, users are backed by reliable service and technical assistance throughout the drive's lifecycle.

Application Flexibility

Designed for a wide range of applications, the ATV630C22N4 excels in industries that demand high power and precise control. Whether used in centrifugal pumps, fans, compressors, or conveyor systems, the drive ensures stable operation, optimal motor efficiency, and adaptable control. Its intelligent features and scalable performance make it a preferred choice for operations prioritizing energy savings, low maintenance, and system responsiveness.

Frequently Asked Questions (FAQs)

What is the power rating of the ATV630C22N4?

The drive's power rating is 220 kW, making it suitable for large motors in demanding industrial applications.

What voltage does this drive support?

It supports a three-phase input voltage of 380–480 VAC, compatible with most industrial power systems.

Is this drive wall-mounted or cabinet-mounted?

The ATV630C22N4 is a wall-mounted drive, offering flexibility in installation and saving valuable floor space.

What kind of motor can this drive control?

It can control three-phase asynchronous and synchronous motors, offering flexibility in motor types and performance needs.

Does the drive support communication protocols like Modbus or Ethernet?

It supports Modbus, Ethernet, and other industrial communication protocols for easy integration.

Is there a warranty included with the drive?

Yes, MRO Electric and Supply provides a 2-year warranty on this product.

Can this drive be used in energy-saving applications?

Absolutely. It is designed for energy efficiency, with features that adapt motor control to reduce energy usage.

Is the drive suitable for HVAC systems?

Due to its intelligent process control, the ATV630C22N4 is ideal for HVAC, water treatment, and pump control systems.

How user-friendly is the setup and configuration?

It features a straightforward interface and guided setup, making installation and commissioning straightforward.

What makes the Altivar Process ATV600 series different?

The ATV600 series includes built-in intelligence, energy monitoring, and predictive maintenance capabilities, setting it apart from traditional drives.
