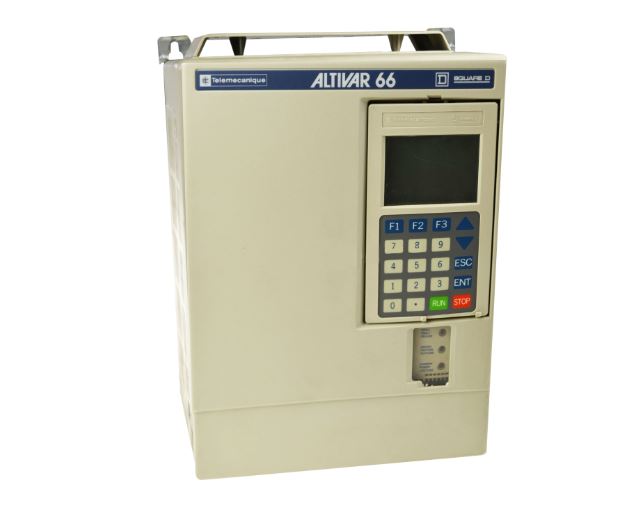

ALTIVAR 66 VARIABLE SPEED DRIVE
Available
Free Shipping
2 Year warranty
Part Number | ATV66D12N4U |
Manufacturer | Schneider Electric |
Type | AC Drives |
Warranty | 2 Year |
Range | ALTIVAR |
Category | ATV66 |
Description | Adjustable Speed Drive |
Voltage | 380...460 V - 10...10 % |
Phase | 3-PH |
Motor power | 11 kW 380...460 V |
Frequency | 50/60 Hz |
Current | 26.5 A 380 V, 21 A 460 V |
Switching frequency | 0.5...4 kHz 8...16 kHz with current derating |
Max Hp | 15 Hp |
Output | 400 V |
Interface | RS485 multidrop serial link |
Communication | Modbus |
Local Signaling | 1 graphic display terminal |
Protection | IP00 |
Transmission Rate | 9.6...19.2 kbauds |
Ambient temp | 32…104 °F |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV66D12N4U to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV66D12N4U we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV66D12N4U, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV66D12N4U for credit when ordering from MRO Electric
The Schneider Electric ATV66D12N4U is a high-performance adjustable speed drive designed for demanding motor control applications. Part of the ALTIVAR ATV66 series, this AC drive provides superior control for three-phase motors with power ratings up to 15 HP (11 kW). Built for efficiency and flexibility, it ensures smooth motor startup, speed control, and reliable operation in industrial environments.
With a voltage range of 380 to 460 V and support for 50/60 Hz frequencies, the ATV66D12N4U provides precise control in various applications. It offers output currents of 26.5 A at 380 V and 21 A at 460 V, making it suitable for moderate- to high-demand systems. The unit features a switching frequency of 0.5 to 4 kHz, which can be extended up to 16 kHz with current derating, offering silent operation and efficient power delivery.
Equipped with an RS485 multidrop serial link, this drive supports Modbus communication, allowing seamless integration into automated systems. Local signaling is made easy with a graphic display terminal, enabling precise and real-time status updates. Transmission rates range from 9.6 to 19.2 kbauds, ensuring reliable data flow and system coordination.
The Schneider ATV66D12N4U is housed in an IP00-rated enclosure, ideal for cabinet-mounted installations. It is engineered to operate in ambient temperatures between 32°F and 104°F (0 °C and 40°C), maintaining durability and performance even in fluctuating conditions. Whether you're managing pumps, fans, conveyors, or machine tools, this drive offers consistent, scalable motor control.
As a Schneider Electric product, the ATV66D12N4U benefits from the brand's global reputation for innovation and reliability in industrial automation. It comes with a 2-year warranty from MRO Electric and Supply, ensuring peace of mind and product support. This model is available for immediate shipping, and free shipping is offered for parts under 20 lbs.
What type of motors can the ATV66D12N4U control?
It is designed for 3-phase motors up to 15 HP at 460 V.
Is this drive compatible with Modbus communication?
Yes, it supports Modbus over an RS485 serial link.
Can I use this drive in high-temperature environments?
Yes, it operates safely in temperatures ranging from 32°F to 104°F.
Is a display terminal included?
Yes, the drive features a built-in graphic display terminal for easy monitoring.
How fast is the communication link?
It supports transmission rates of 9.6 to 19.2 kbauds.
Does the unit support high switching frequencies?
Yes, the switching frequency ranges from 0.5 kHz to 4 kHz and can be increased to 16 kHz with derating.
What type of enclosure does it have?
The drive has an IP00 rating, making it suitable for protected installations, such as inside panels.
Is this drive available for immediate shipping?
Yes, MRO Electric has it in stock and ready to ship.
What is the warranty on this unit?
It includes a 2-year warranty from MRO Electric and Supply.
