ATV71HD22M3X

2-year Warranty

Same Day Shipping

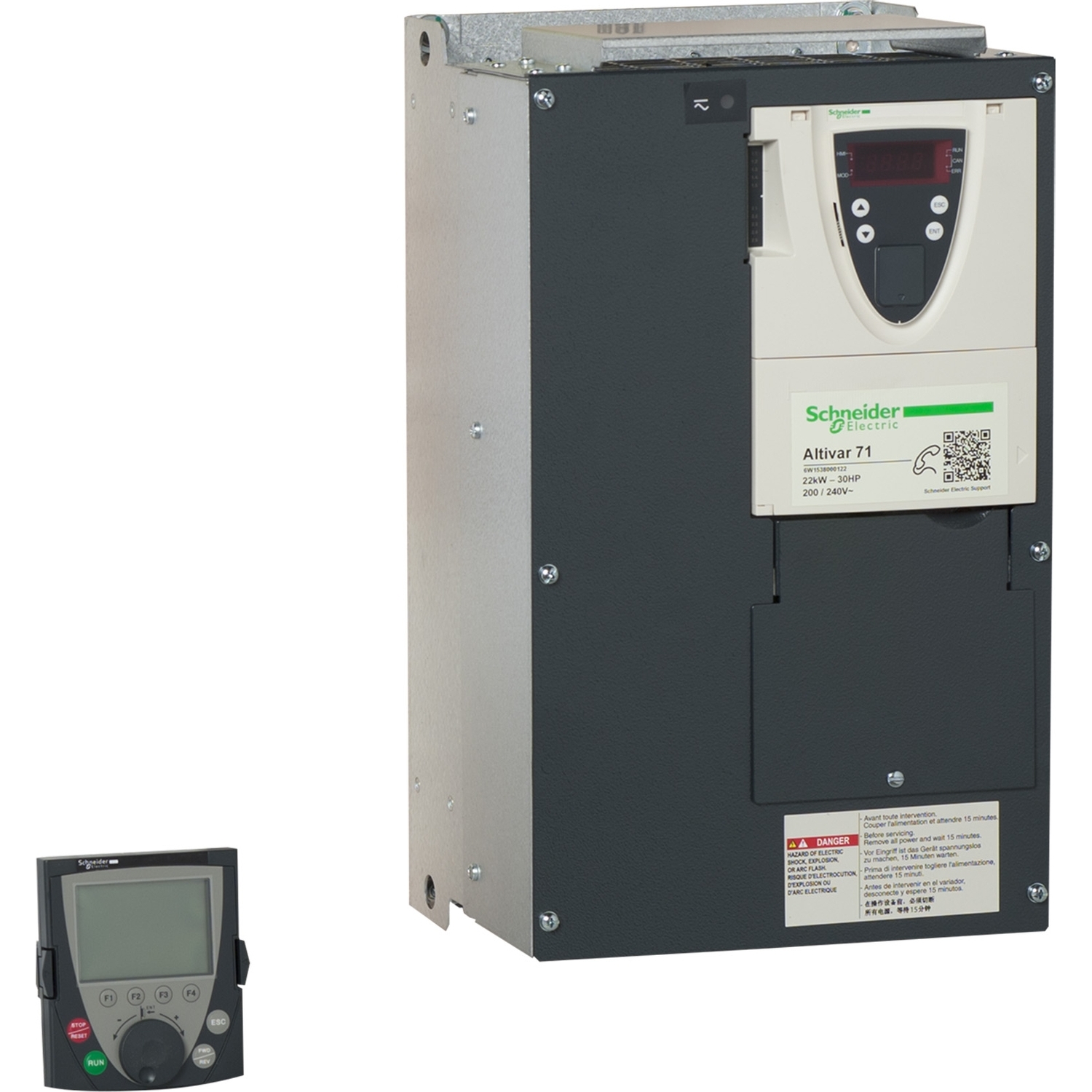

Schneider Electric ATV71HD22M3X

ALTIVAR VARIABLE SPEED DRIVE 22KW-30HP - 240V - W/O EMC FILTER-GRAPHIC TERMINAL
5/5
1 rating

1 Available


2 Year warranty

Part NumberATV71HD22M3X
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Range of productAltivar 71
200 m unshielded cable
88 A for 200 V 3 phases 22 kW / 30 hp
145 A for 2 s 3 phases 22 kW / 30 hp
2.5...16 kHz with derating factor
Sensorless flux vector control (SFVC) (voltage or current vector)
Flux vector control (FVC) with sensor (current vector)
Voltage/frequency ratio (2 or 5 points)
Product or component typeVariable speed drive
Product specific applicationComplex, high-power machines
Component nameATV71
Motor power kW22 kW, 3 phases at 200...240 V
Motor power hp30 hp, 3 phases at 200...240 V
Maximum motor cable length100 m shielded cable
Power supply voltage200...240 V - 15...10 %
Network number of phases3 phases
Line current80 A for 240 V 3 phases 22 kW / 30 hp
EMC filterWithout EMC filter
Assembly styleWith heat sink
Apparent power33.3 kVA at 240 V 3 phases 22 kW / 30 hp
Prospective line Isc22 kA for 3 phases
Nominal output current88 A at 2.5 kHz 230 V 3 phases 22 kW / 30 hp
Maximum transient current132 A for 60 s 3 phases 22 kW / 30 hp
Output frequency0.1…599 Hz
Nominal switching frequency2.5 kHz
Switching frequency1...16 kHz adjustable
Asynchronous motor control profileENA (Energy adaptation) system for unbalanced loads
Type of polarizationNo impedance for Modbus

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV71HD22M3X to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HD22M3X we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV71HD22M3X, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 53lbs

Want it shipped tomorrow?

  • Order within the next 18 hours and 9 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV71HD22M3X for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV71HD22M3X Overview

Schneider Electric ATV71HD22M3X AC Drive

The Schneider Electric ATV71HD22M3X stands at the forefront of AC drive technology, offering unparalleled performance and versatility for complex, high-power machines. As part of the Altivar 71 range, this drive redefines precision control and efficiency in industrial applications, setting new standards for reliability and innovation.

Robust and Dynamic Design:

Engineered with precision and durability in mind, the ATV71HD22M3X boasts a robust assembly style with a built-in heat sink, ensuring optimal thermal management and longevity in demanding operating environments. Its compact yet robust design makes it ideal for high-power performance applications.

Advanced Control Capabilities:

Equipped with sensorless flux vector control (SFVC), flux vector control (FVC), and voltage/frequency ratio functionalities, this variable speed drive delivers precise and responsive motor control. Whether it's voltage or current vector control, the ATV71HD22M3X ensures smooth operation and efficient performance.

Optimized Performance Parameters:

This drive demonstrates exceptional power handling capabilities with a motor power of 22 kW (30 hp) and a line current of 80 A for 240 V 3 phases. Its nominal output current of 88 A at 2.5 kHz and maximum transient current of 132 A for 60 seconds underscore its ability to handle high-load scenarios efficiently.

Flexible Frequency and Switching Options:

The ATV71HD22M3X offers a wide output frequency range from 0.1 to 599 Hz, catering to diverse operational requirements. Its nominal switching frequency of 2.5 kHz, adjustable up to 16 kHz, provides flexibility in adapting to varying load conditions and optimizing motor performance.

Integrated Energy Adaptation System:

This drive features the Energy Adaptation (ENA) system, which excels in controlling unbalanced loads, ensuring optimal energy utilization and stability across all operating conditions. It dynamically adjusts motor parameters to match load variations, enhancing efficiency and reducing energy consumption.

Reliable and Efficient Operation:

With a maximum motor cable length of 100 meters for shielded cable and an apparent power rating of 33.3 kVA at 240 V 3 phases, the ATV71HD22M3X guarantees reliable performance and efficient power transmission. Its robust construction and high prospective line Isc rating of 22 kA ensure uninterrupted operation in challenging environments.

Seamless Integration and Control:

Designed for ease of integration, the ATV71HD22M3X supports Modbus communication without impedance, facilitating seamless connectivity with control systems and peripherals. Its intuitive interface and adjustable parameters enable precise control and monitoring, empowering users to optimize operational efficiency.

FAQ - Schneider Electric ATV71HD22M3X AC Drive

Q: What is the Schneider Electric ATV71HD22M3X? A: The Schneider Electric ATV71HD22M3X is an advanced AC drive designed to control and efficiently operate complex, high-power machines in industrial applications.

Q: What are the key features of the ATV71HD22M3X AC drive? A: The ATV71HD22M3X features sensorless flux vector control (SFVC), flux vector control (FVC), and voltage/frequency ratio functionalities for precise motor control. It also offers a wide output frequency range, adjustable switching frequencies, and an integrated Energy Adaptation (ENA) system for controlling unbalanced loads.

Q: What are the performance parameters of the ATV71HD22M3X? A: The ATV71HD22M3X has a motor power of 22 kW (30 hp) and a line current of 80 A for 240 V 3 phases. It offers a nominal output current of 88 A at 2.5 kHz and a maximum transient current of 132 A for 60 seconds, ensuring reliable performance under varying load conditions.

Q: How does the ATV71HD22M3X ensure efficient operation? A: The ATV71HD22M3X features advanced thermal management with a built-in heat sink, ensuring optimal cooling and longevity in demanding environments. Its integrated Energy Adaptation (ENA) system dynamically adjusts motor parameters to match load variations, enhancing energy efficiency.

Q: What communication options does the ATV71HD22M3X support? A: The ATV71HD22M3X supports Modbus communication with no impedance, facilitating seamless integration with control systems and peripherals. This enables users to monitor and control the drive remotely, optimizing operational efficiency.

Q: Is the ATV71HD22M3X suitable for handling high-power applications? A: The ATV71HD22M3X is specifically designed for high-power applications, with a motor power of 22 kW (30 hp) and a maximum transient current of 132 A for 60 seconds. Its robust construction and high prospective line Isc rating of 22 kA ensures reliable performance under demanding conditions.

Q: How does the ATV71HD22M3X contribute to precise motor control? A: The ATV71HD22M3X offers sensorless flux vector control (SFVC), flux vector control (FVC), and voltage/frequency ratio functionalities, allowing for precise control of motor speed and torque. This ensures smooth operation and optimal performance in industrial applications.

Q: What are the installation requirements for the ATV71HD22M3X? A: The ATV71HD22M3X requires a power supply voltage of 200 to 240 V with 3 phases. It also requires appropriate mounting and electrical connections per Schneider Electric's installation guidelines for AC drives.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
