ATV71HD22N4

2-year Warranty

Same Day Shipping

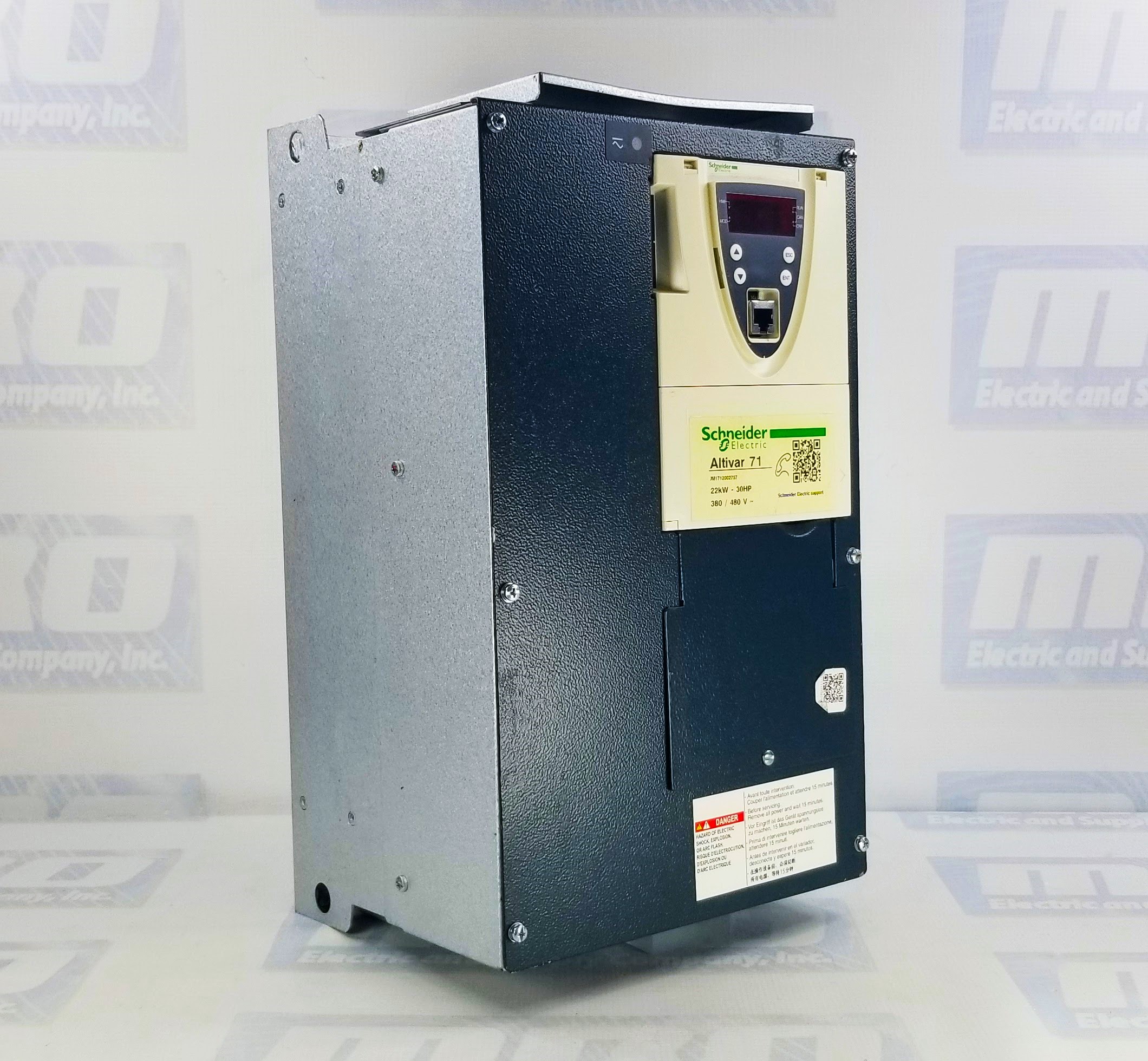

Schneider Electric ATV71HD22N4

ALTIVAR 71 22 KW 30 HP 480 VOLT EMC FILTER
5/5
4 ratings

Select Condition

Refurbished

1 in stock

New

4 in stock

$2,925.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberATV71HD22N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Motor power22 kW, 3 phases at 380...480 V
Horsepower30 hp, 3 phases at 380...480 V
Max motor cable length100 m shielded cable 200 m unshielded cable
Power supply voltage380...480 V - 15...10 %
Phases3 phases
EMC filterIntegrated
AssemblyHeat sink
Output Current40 A at 4 kHz 460 V 3 phases 22 kW / 30 hp 48 A at 4 kHz 380 V 3 phases 22 kW / 30 hp
Output Frequency0.1…599 Hz
Max transient current72 A for 60 s 3 phases 22 kW / 30 hp 79.2 A for 2 s 3 phases 22 kW / 30 hp
Switching frequency4 kHz
Adjustable switching frequency1...16 kHz
Derating switching frequency4...16 kHz
Braking torque<= 150 % with braking or hoist resistor 30 % without braking resistor

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV71HD22N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HD22N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV71HD22N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 20 hours and 39 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV71HD22N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV71HD22N4 Overview

Schneider Electric ATV71HD22N4: A Comprehensive Overview

Powerful Performance for Complex Machines

The Schneider Electric ATV71HD22N4 stands out as a variable-speed drive specifically engineered for the intricate demands of complex, high-power machines. With a motor power of 22 kW (30 hp) at 380-480 V and 3 phases, this drive delivers a robust and versatile solution for motor control and optimization.

Integrated EMC Filter for Smooth Operation

A notable feature of the ATV71HD22N4 is its integrated EMC filter, effectively reducing electromagnetic interference and ensuring compliance with electromagnetic compatibility standards. The inclusion of a heat sink in the assembly style contributes to efficient heat dissipation during operation.

Voltage and Current Specifications

Operating with a rated supply voltage of 380-480 V and a line current of 42 A for 480 V and 50 A for 380 V, the drive exhibits a powerful performance. The apparent power of 32.9 kVA at 380 V positions it as a reliable choice for demanding applications.

Advanced Motor Control Features

Equipped with the ENA (Energy Adaptation) system for unbalanced loads, flux vector control (FVC) with a sensor, sensorless flux vector control (SFVC), and voltage/frequency ratio control, the ATV71HD22N4 provides advanced motor control capabilities.

Compatibility and Speed Range

The drive supports asynchronous motors and synchronous motors, operating within a speed range of 0.1 to 599 Hz. Its impressive speed accuracy of +/- 0.01% of nominal speed in closed-loop mode with encoder feedback ensures precision in motor performance.

Comprehensive Protection Mechanisms

Ensuring the longevity and reliability of the system, the drive incorporates comprehensive protection features. These include safeguards against limit speed exceeding, input phase loss, control circuit breaks, line supply overvoltage/undervoltage, overcurrent, overheating, DC bus overvoltages, short-circuits between motor phases, motor phase breaks, power removal, and insulation resistance checks.

Adjustable Acceleration and Deceleration

The ATV71HD22N4 offers flexibility with adjustable acceleration and deceleration ramps. Automatic adaptation of the ramp in case of braking capacity exceeding, combined with DC injection for braking to a standstill, adds to the drive's versatility.

Connectivity Options for Seamless Integration

With multiple analog and discrete inputs and outputs, the drive provides flexibility for interfacing with external devices. Supporting communication protocols such as CANopen and Modbus, it ensures seamless integration into industrial networks.

Compact Design and Physical Specifications

Physically, the ATV71HD22N4 boasts a compact design with dimensions of 16.54 inches (height) x 9.29 inches (depth) x 9.06 inches (width) and a weight of 46.3 pounds. Its vertical operating position, with a tolerance of +/- 10 degrees, makes it adaptable to various installation environments.

Frequently Asked Questions

Q1: What is the main application of the Schneider Electric ATV71HD22N4?

A1: The ATV71HD22N4 is specifically designed for complex, high-power machines, making it ideal for applications that require precise motor control and optimization.

Q2: What are the motor power and voltage specifications of the ATV71HD22N4?

A2: The drive has a motor power of 22 kW (30 hp) at 380-480 V with 3 phases, catering to the power needs of demanding industrial setups.

Q3: What does the integrated EMC filter in the ATV71HD22N4 do?

A3: The integrated EMC filter helps reduce electromagnetic interference, ensuring smooth operation and compliance with electromagnetic compatibility standards.

Q4: Can the ATV71HD22N4 operate with unbalanced loads?

A4: Yes, the drive incorporates the ENA (Energy Adaptation) system specifically designed to handle unbalanced loads effectively.

Q5: What protection features does the ATV71HD22N4 offer?

A5: The drive provides comprehensive protection against various factors, including limit speed exceeding, input phase loss, overcurrent, overheating, short circuits, and more. These mechanisms contribute to the longevity and reliability of the system.

Q6: Does the ATV71HD22N4 support different motor types?

A6: Yes, the drive is compatible with both asynchronous and synchronous motors, offering flexibility for various motor applications.

Q7: What is the speed range of the ATV71HD22N4?

A7: The drive operates within a speed range of 0.1 to 599 Hz, providing versatility for different motor types and applications.

Q8: Can the ATV71HD22N4 be integrated into industrial networks?

A8: Yes, the drive supports communication protocols such as CANopen and Modbus, facilitating seamless integration into industrial networks.

Q9: What are the physical dimensions of the ATV71HD22N4?

A9: The drive has compact dimensions of 16.54 inches (height) x 9.29 inches (depth) x 9.06 inches (width) and weighs 46.3 pounds.

Q10: Is there a programmable card option available for the ATV71HD22N4?

A10: Yes, the drive offers an option card for a programmable controller inside, enhancing its flexibility for specific applications.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV71HD22N4, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV71HD22N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
