ATV71HD37Y

ATV71HD37Y

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Schneider Electric

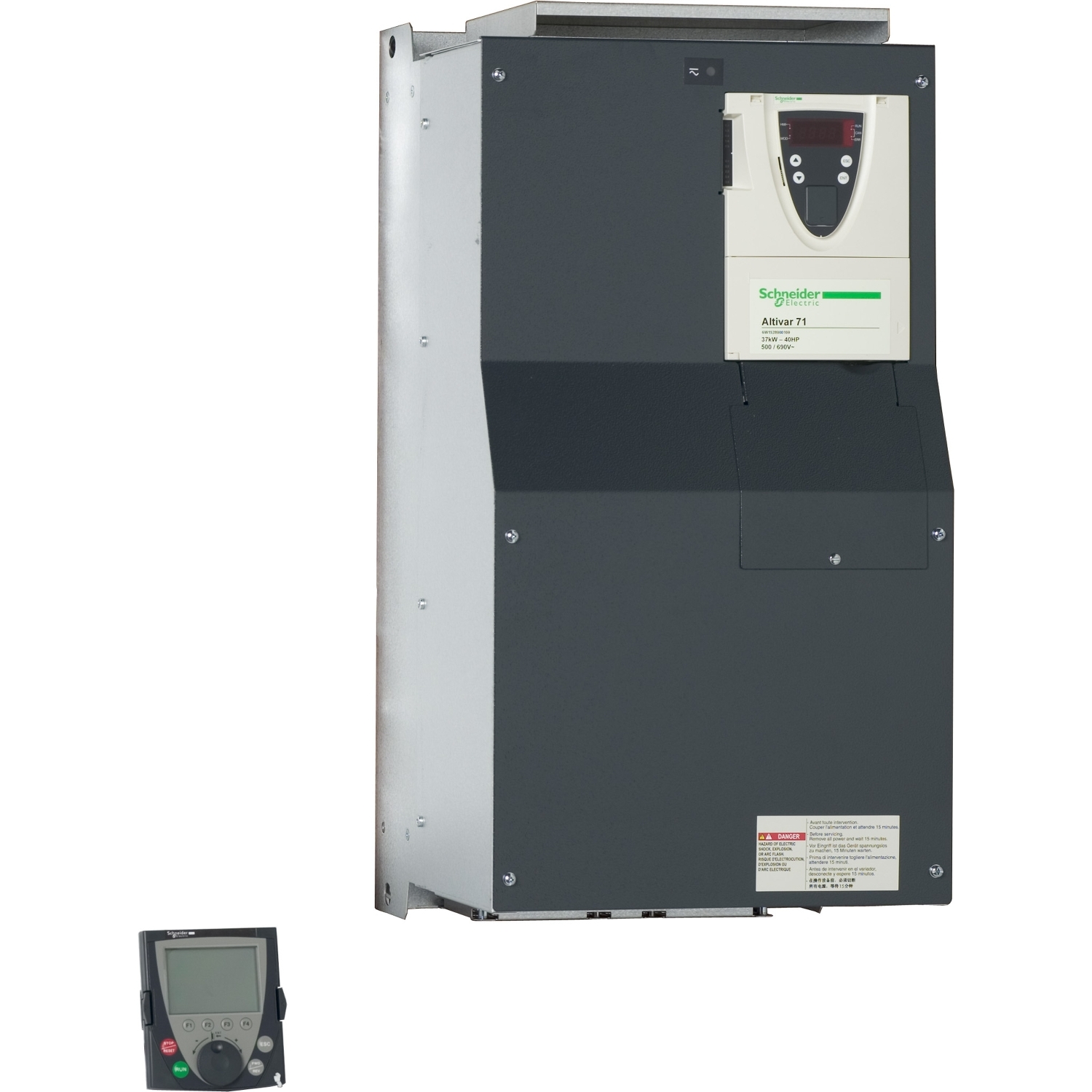

DESCRIPTION: Variable speed drive ATV71 - 37kW - 690V - EMC filter-graphic terminal
PRODUCT TYPE INFO: Altivar 71


Available

Free Shipping
2 Year warranty

Categories

Part NumberATV71HD37Y
ManufacturerSchneider Electric
SeriesAltivar 71
Model #ATV71HD37Y
TypeAC Drives
Warranty2 Year
Range of productAltivar 71
37 kW, 3 phases at 690 V
10 m unshielded cable
47 A for 690 V 3 phases 37 kW
48 A for 500 V 3 phases 30 kW
43 A at 2.5 kHz 690 V 3 phases 37 kW
47 A at 2.5 kHz 500 V 3 phases 30 kW
77.55 A for 2 s 3 phases / 40 hp
77.55 A for 2 s 3 phases 37 kW
2.5...4.9 kHz with derating factor
ENA (Energy adaptation) system for unbalanced loads
Flux vector control (FVC) with sensor (current vector)
Voltage/frequency ratio (2 or 5 points)
Product or component typeVariable speed drive
Product specific applicationComplex, high-power machines
Component nameATV71
Motor power kW30 kW, 3 phases at 500 V
Motor power hp40 hp, 3 phases at 575 V
Maximum motor cable length10 m shielded cable
Power supply voltage500...690 V - 15...10 %
Network number of phases3 phases
Line current41 A for 600 V 3 phases / 40 hp
EMC filterIntegrated
Assembly styleWith heat sink
VariantReinforced version
Prospective line Isc22 kA for 3 phases
Nominal output current41 A at 2.5 kHz 575 V 3 phases / 40 hp
Maximum transient current70.5 A for 60 s 3 phases 30 kW
Output frequency0.1…500 Hz
Nominal switching frequency2.5 kHz
Switching frequency2.5...4.9 kHz adjustable
Asynchronous motor control profileSensorless flux vector control (SFVC) (voltage or current vector)
Type of polarizationNo impedance for Modbus

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV71HD37Y to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HD37Y we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV71HD37Y, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 3 hours and 54 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV71HD37Y for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The ATV71HD37Y is a Variable speed drive ATV71 - 37kW - 690V - EMC fi... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the altivar-71 line come with a 2 year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
