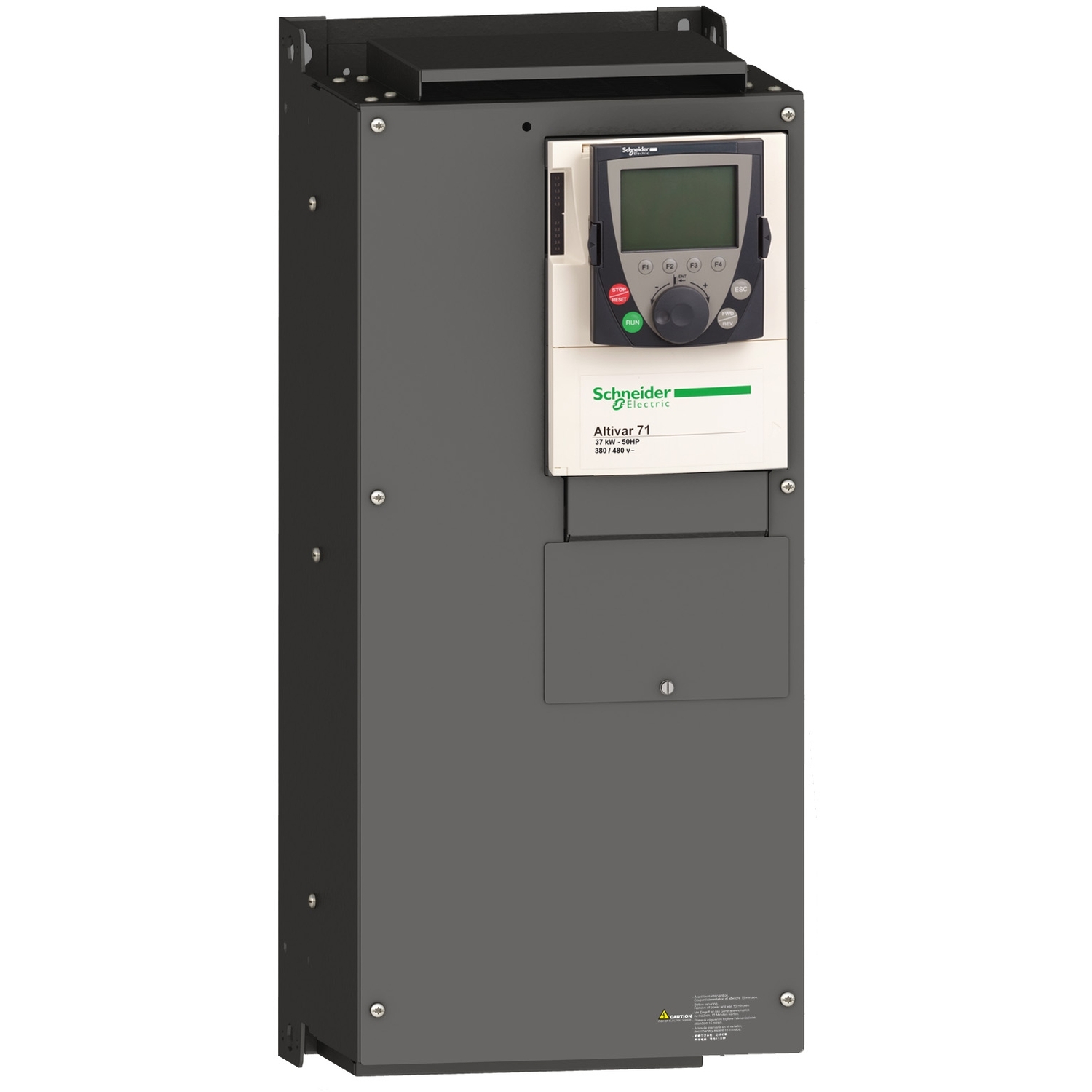

Schneider Electric ATV71HD55N4

ALTIVAR 71 ATV71 VARIABLE SPEED DRIVE 55 KW 75 HP 480 VOLT EMC FILTER

5/5
1 rating

Select Condition

Refurbished

Request Quote

New

1 in stock

$5,879.00

Request a Quote
  • Ships Today
  • 2 Year Warranty
Part NumberATV71HD55N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Range of productAltivar 71
200 m unshielded cable
120 A for 380 V 3 phases 55 kW / 75 hp
96 A at 2.5 kHz 460 V 3 phases 55 kW / 75 hp
191 A for 2 s 3 phases 55 kW / 75 hp
2.5...16 kHz with derating factor
Voltage/frequency ratio (2 or 5 points)
Flux vector control (FVC) with sensor (current vector)
ENA (Energy adaptation) system for unbalanced loads
Product or component typeVariable speed drive
Product specific applicationComplex, high-power machines
Component nameATV71
Motor power kW55 kW, 3 phases at 380...480 V
Motor power hp75 hp, 3 phases at 380...480 V
Maximum motor cable length100 m shielded cable
Power supply voltage380...480 V - 15...10 %
Network number of phases3 phases
Line current101 A for 480 V 3 phases 55 kW / 75 hp
EMC filterIntegrated
Assembly styleWith heat sink
Apparent power79 kVA at 380 V 3 phases 55 kW / 75 hp
Prospective line Isc22 kA for 3 phases
Nominal output current116 A at 2.5 kHz 380 V 3 phases 55 kW / 75 hp
Maximum transient current174 A for 60 s 3 phases 55 kW / 75 hp
Output frequency0.1…500 Hz
Nominal switching frequency2.5 kHz
Switching frequency1...16 kHz adjustable
Asynchronous motor control profileSensorless flux vector control (SFVC) (voltage or current vector)
Type of polarizationNo impedance for Modbus

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV71HD55N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HD55N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV71HD55N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 115lbs

Want it shipped today?

  • Order within the next 13 hours and 42 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV71HD55N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV71HD55N4 Overview

High-Performance Control with Schneider Electric ATV71HD55N4

The Schneider Electric ATV71HD55N4 is a powerful AC variable speed drive engineered for high-demand industrial applications. As part of the advanced Altivar 71 series, this drive delivers precise motor control, increased energy efficiency, and reliable operation in complex machinery. Rated for 55 kW (75 hp) motors on a three-phase 380–480 V supply, it is ideally suited for equipment in industries such as material handling, process manufacturing, pumping, and HVAC systems.

Engineered for Demanding Environments

This model is purpose-built to manage complex, high-power machine operations with enhanced motor dynamics. It supports advanced control algorithms such as Flux Vector Control (FVC) with sensors and Sensorless Flux Vector Control (SFVC), enabling superior torque and speed regulation under all load conditions. The ENA (Energy Adaptation) system dynamically compensates for load imbalances, enhancing operational efficiency and motor longevity in fluctuating environments.

Powerful Electrical Characteristics

Operating at a nominal output current of 116 A (at 2.5 kHz, 380 V), the ATV71HD55N4 can deliver high torque consistently across a broad operating range. It handles up to 96 A at 460 V and 120 A at 380 V, with a maximum transient current of 174 A for 60 seconds, supporting peak load demands without performance loss. The drive ensures precise control for low and high-speed applications with a switching frequency adjustable between 1 kHz and 16 kHz and a frequency output range from 0.1 to 500 Hz.

Design, Installation, and Durability

Equipped with an integrated EMC filter, the ATV71HD55N4 helps reduce electrical noise and ensures compliance with industrial electromagnetic standards. It supports motor cable lengths of up to 100 meters shielded and 200 meters unshielded, offering flexibility for equipment layout. The unit comes in a heat sink assembly style, providing effective thermal management and reliability during continuous duty cycles. With a prospective line short-circuit current (Isc) of 22 kA, it can operate safely in fault-prone environments.

Immediate Availability and Warranty Support

The ATV71HD55N4 is now available through MRO Electric and Supply, with free shipping and a 2-year warranty. MRO provides expert support and fast delivery, ensuring minimal downtime and maximum operational continuity. Whether upgrading existing systems or commissioning new projects, this drive delivers power, flexibility, and performance across various industrial automation needs.

Frequently Asked Questions

What is the power rating of the ATV71HD55N4?

It is rated for 55 kW (75 hp) motors operating at 380–480 V.

What control modes does this drive support?

It supports Flux Vector Control (FVC) with sensors and Sensorless Flux Vector Control (SFVC).

What is the maximum transient current it can handle?

It can handle up to 174 A for 60 seconds.

What is the output frequency range?

The drive supports an output frequency of 0.1 to 500 Hz.

Can the switching frequency be adjusted?

Depending on application needs, it can be set between 1 and 16 kHz.

Is an EMC filter included?

Yes, the drive comes with an integrated EMC filter for electromagnetic compliance.

What kind of motor cable lengths are supported?

It supports up to 100 m shielded and 200 m unshielded cables.

What is the apparent power of the unit?

It provides 79 kVA at 380 V, 3-phase.

What safety capacity does the drive offer?

It supports a prospective short-circuit current of 22 kA and includes overload handling.

Is the ATV71HD55N4 available with support and warranty?

It's available from MRO Electric with a 2-year warranty.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
