ATV71HU22N4

2-year Warranty

Same Day Shipping

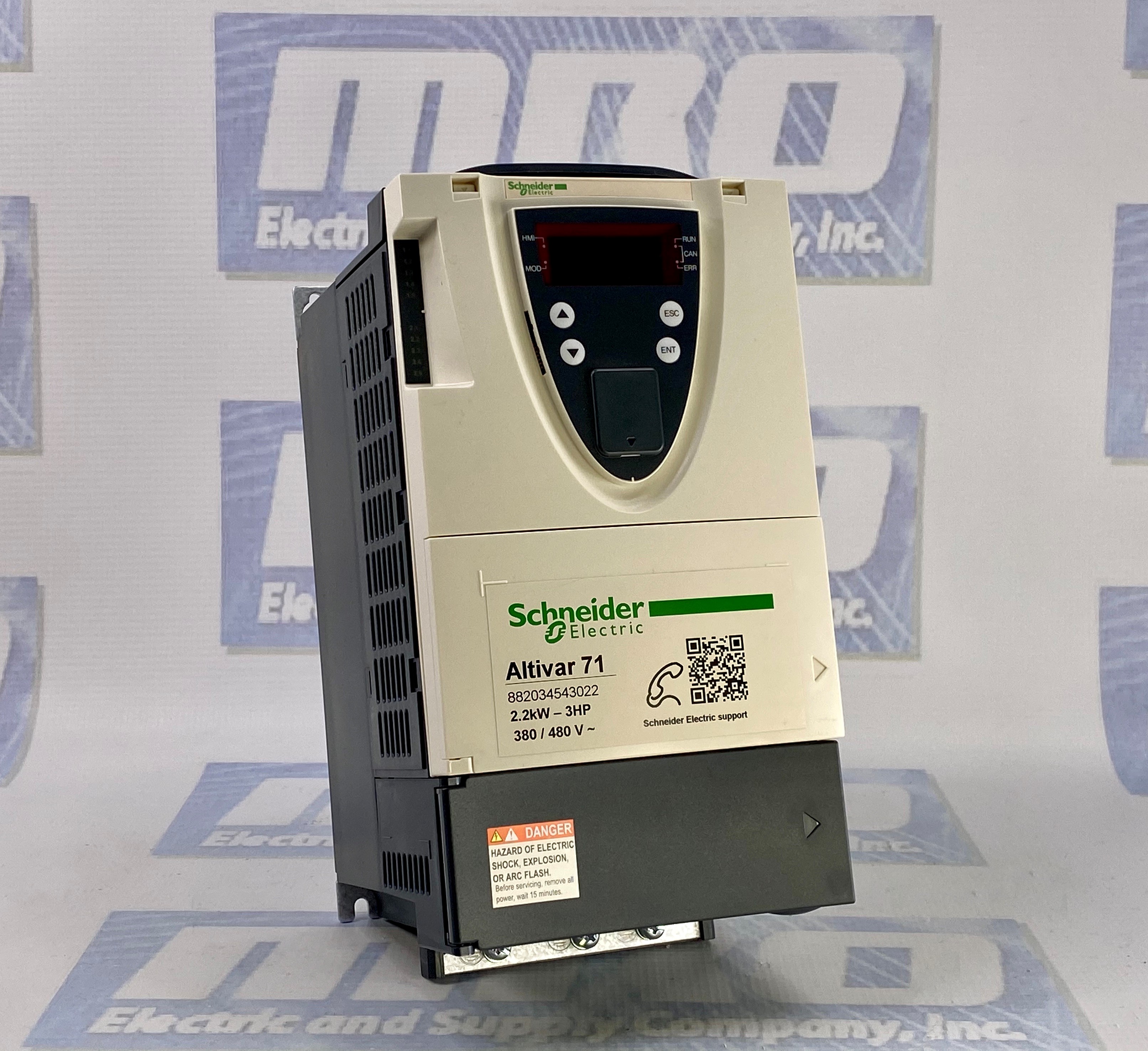

Schneider Electric ATV71HU22N4

TELEMECANIQUE ALTIVAR 71 SPEED DRIVE 2.2 KW 460 VOLT
5/5
3 ratings

Select Condition

Refurbished

Request Quote

New

4 in stock

$1,697.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberATV71HU22N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Range of productAltivar 71
100 m unshielded cable
8.2 A for 380 V 3 phases 2.2 kW / 3 hp
5.8 A at 4 kHz 380 V 3 phases 2.2 kW / 3 hp
9.6 A for 2 s 3 phases 2.2 kW / 3 hp
4...16 kHz with derating factor
Flux vector control (FVC) with sensor (current vector)
Voltage/frequency ratio (2 or 5 points)
ENA (Energy adaptation) system for unbalanced loads
Product or component typeVariable speed drive
Product specific applicationComplex, high-power machines
Component nameATV71
Motor power kW2.2 kW, 3 phases at 380...480 V
Motor power hp3 hp, 3 phases at 380...480 V
Maximum motor cable length50 m shielded cable
Power supply voltage380...480 V - 15...10 %
Network number of phases3 phases
Line current7.1 A for 480 V 3 phases 2.2 kW / 3 hp
EMC filterIntegrated
Assembly styleWith heat sink
Apparent power5.4 kVA at 380 V 3 phases 2.2 kW / 3 hp
Prospective line Isc5 kA for 3 phases
Nominal output current4.8 A at 4 kHz 460 V 3 phases 2.2 kW / 3 hp
Maximum transient current8.7 A for 60 s 3 phases 2.2 kW / 3 hp
Output frequency0.1…599 Hz
Nominal switching frequency4 kHz
Switching frequency1...16 kHz adjustable
Asynchronous motor control profileSensorless flux vector control (SFVC) (voltage or current vector)
Type of polarizationNo impedance for Modbus

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV71HU22N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HU22N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV71HU22N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 5lbs

Want it shipped tomorrow?

  • Order within the next 17 hours and 27 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV71HU22N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV71HU22N4 Overview

Altivar Variable Speed Drive ATV71HU22N4

The Altivar variable speed drive module ATV71HU22N4 is manufactured by Schneider Electric for use with three-phase motors. The ATV 71 500 V three-phase, serving complex machines, has a power range for 50-60 Hz line supply of 0.37kW-630hp/0.5kW 700 hp. The degree of protection for the variable speed drive is IP 20.  These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

What is the cooling method for the ATV71HU22N4? The Schneider Electric variable speed drive uses three cooling methods; heatsink, base plate, or water-cooled system.

Features of the Schneider Electric ATV71HU22N4

The Altivar ATV71HU22N4 is supplied with a remote graphic display terminal that is user-friendly. Drop-down menus offer easy access to complex functions and online help screens. The ATV 71 has a standard six language availability with additional available via flash memory. Up to four configuration files are able to be stored and the machine is customizable for your particular needs.

Maintenance and monitoring

For diagnostics, the Altivar ATV 71 variable speed drive modules employ built-in functions for maintenance and monitoring.  Some of these functions include test functions on the diagnostic screen. These functions are displayed on the remote graphic display terminal. The Altivar ATV 71 has built-in I/O maps, communication maps (for the different ports), and display terminal languages loaded in the flash memory. Remote use of these functions happens by connecting the drive to a modem via the Modbus port. It maintains an Oscilloscope function that can be viewed using the SoMove setup software. The drive is able to store messages of up to 5 lines of 24 characters. Error logs with a display of the value of up to 16 variables on the occurrence of a fault. The drive is capable of identification of the drive's component parts as well as the software versions. Through the use of microprocessors with flash memory, there is the management of the drive installed base.

Option cards for the variable speed drive

Schneider Electric offers many option cards designed for the Altivar to elevate adaptation to applications making the drive more flexible. Up to three different option cards at the same time. Two of them are cards like I/O extension cards, and communication cards, and one encoder interface. Encoder interface cards include RS 422-compatible differential outputs; with open collector outputs (NPN); with push-pull outputs; resolver; with SinCos, SinCos Hiperface®, EnDat®, or SSI universal outputs; with RS 422-compatible differential outputs plus encoder emulation (RS 422 ESIM).

Encoder interface cards improve the value of the Altivar drive. They are used for Flux Vector Control operation ( w/ sensor) for asynchronous motors, or Vector control operation ( w/ speed feedback) for synchronous motors.

Mounting the Altivar ATV 71

Remote mounting is available on an enclosure door with IP 54 or IP 56 degree of protection on IP 20 drives.

Communication for the ATV 71 module

The ATV71HU22N4 variable speed drive utilizes Modbus and CANopen communication. Communication options available for the ATV 71 are the Modbus TCP Daisy Chain, Modbus/Uni-Telway, EtherNet/IP (RSTP), DeviceNet, PROFIBUS DP V0, and V1, Interbus, CC-Link, Profinet, EtherCAT, and POWERLINK.

FAQs (Frequently Asked Questions)

1. What distinguishes the Schneider Electric ATV71HU22N4 AC drive from other models in the Altivar 71 range?

  • The ATV71HU22N4 AC drive offers advanced features such as Flux Vector Control (FVC) with a sensor and an Energy Adaptation (ENA) system for unbalanced loads, making it ideal for complex, high-power machines. These features set it apart from other models in the Altivar 71 range, providing enhanced control and efficiency.

2. What is the maximum motor cable length supported by the ATV71HU22N4 AC drive?

  • The ATV71HU22N4 AC drive supports a maximum motor cable length of 50 meters with shielded cable, ensuring flexibility in installation and compatibility with various industrial setups.

3. Can the ATV71HU22N4 AC drive operate with unshielded cables?

  • Yes, the ATV71HU22N4 AC drive supports operation with unshielded cables of up to 100 meters in length, offering versatility in cable selection while maintaining optimal performance.

4. How does the integrated EMC filter benefit users of the ATV71HU22N4 AC drive?

  • The integrated EMC filter helps to mitigate electromagnetic interference, ensuring compliance with EMC regulations and standards. This feature simplifies installation and reduces the risk of electromagnetic interference-related issues in industrial environments.

5. What are the typical applications suited for the ATV71HU22N4 AC drive?

  • The ATV71HU22N4 AC drive is well-suited for a wide range of applications, particularly those involving complex, high-power machines. Its versatility and advanced control capabilities make it suitable for tasks such as pump control, fan control, conveyor systems, and more.

6. Can the ATV71HU22N4 AC drive accommodate voltage fluctuations in industrial power supplies?

  • Yes, the ATV71HU22N4 AC drive is designed to operate within a wide voltage range of 380 to 480 volts with a tolerance of -15% to +10%, allowing it to adapt to variations in industrial power supplies and ensuring consistent performance.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV71HU22N4, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV71HU22N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
