Schneider Electric ATV930D90N4

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Drives from other manufacturers such as Modicon and ABB.

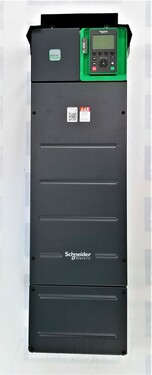

The ATV930D90N4, part of the Altivar Process ATV900 series, is a high-performance variable-speed drive designed for industrial applications. With a motor power of 90.0 kW (equivalent to 125.0 hp in normal duty or 100.0 hp in heavy duty), this drive offers robust control for both synchronous and asynchronous motors in 3-phase configurations.

Power and Voltage

The ATV930D90N4 is capable of handling a wide voltage range, from 380 V to 480 V, with a permissible variation of 15% to 10%. Its motor power output of 90.0 kW makes it suitable for a range of industrial processes.

Communication Protocols

This variable speed drive supports various communication protocols, including EtherNet/IP, Modbus serial, and Modbus TCP. These communication options enable seamless integration into industrial automation and control systems.

EMC Filter and Protection

The drive comes equipped with an integrated EMC filter, ensuring electromagnetic compatibility. Additionally, it offers an option for an EMC plate. The IP21 degree of protection and UL Type 1 design make it suitable for various industrial environments.

Option Module Support

The ATV930D90N4 features option module slots, such as Profibus DP V1, PROFINET, DeviceNet, EtherCAT, and CANopen, allowing for flexibility and customization based on specific application requirements. These slots accommodate various communication interfaces and expansion modules.

Motor Control Profiles

This variable-speed drive offers a wide range of motor control profiles to cater to different motor types. It supports constant torque and variable torque profiles for asynchronous motors and permanent magnet motors. Synchronous reluctance motors are also compatible.

Output Frequency and Switching Frequency

The ATV930D90N4 provides a maximum output frequency of 599 Hz, giving users precise control over motor speed. The switching frequency is adjustable, ranging from 1 to 8 kHz, with derating options from 2.5 to 8 kHz. The nominal switching frequency is set at 2.5 kHz.

Discrete Inputs and Outputs

The drive features ten discrete inputs, with DI1 to DI8 being programmable at 24 V DC and DI7 and DI8 programmable as pulse inputs. STOA and STOB are discrete inputs suitable for safe torque-off applications. Additionally, there are two discrete outputs with logic output capabilities.

Analog Inputs and Outputs

It provides three analog input channels (AI1, AI2, AI3) that are software-configurable for voltage (0-10 V DC) or current (0-20 mA/4-20 mA) signals. Two analog output channels (AQ1, AQ2) are software-configurable for voltage (0-10 V DC) or current (0-20 mA).

Relay Outputs

The drive includes three configurable relay outputs (R1, R2, R3) suitable for various control and monitoring functions, such as fault relay, sequence relay, and more.

Safety Features

Safety is a priority with features like Safe Torque Off (STO), Safe Stop 1 (SS1), and Safe Torque Off drive and motor protection mechanisms. These safety functions enhance the drive's suitability for industrial applications with strict safety requirements.

Physical Dimensions and Weight

The ATV930D90N4 is designed for wall mounting and measures 11.42 inches in width, 36.30 inches in height, and 12.81 inches in depth. Its net weight is 131.18 lbs (59.5 kg).

Electrical Connections

The drive provides various screw terminal connections for control, line side, motor, and DC bus connections, ensuring secure and reliable electrical connections.

Environmental Considerations

The drive is suitable for a wide range of environmental conditions, with operating temperature ranges from -15°C to 50°C without derating and up to 60°C with derating. It is also capable of operating at altitudes of up to 3280.84 feet without derating, with derating factors applied at higher altitudes.

Certifications and Standards

The ATV930D90N4 complies with various industry standards, including UL, CSA, TÜV, and CE. It adheres to standards like UL 508C, EN/IEC 61800-3, IEC 61000-3-12, and more, ensuring its reliability and safety in industrial applications.

In summary, the ATV930D90N4 is a powerful and versatile variable-speed drive designed for demanding industrial applications. With a wide range of control options, communication capabilities, safety features, and compliance with industry standards, it provides precise and reliable motor control while meeting stringent industrial requirements. Its robust construction and adaptability make it an ideal choice for a variety of industrial processes.
