Schneider Electric ATV930U40M3

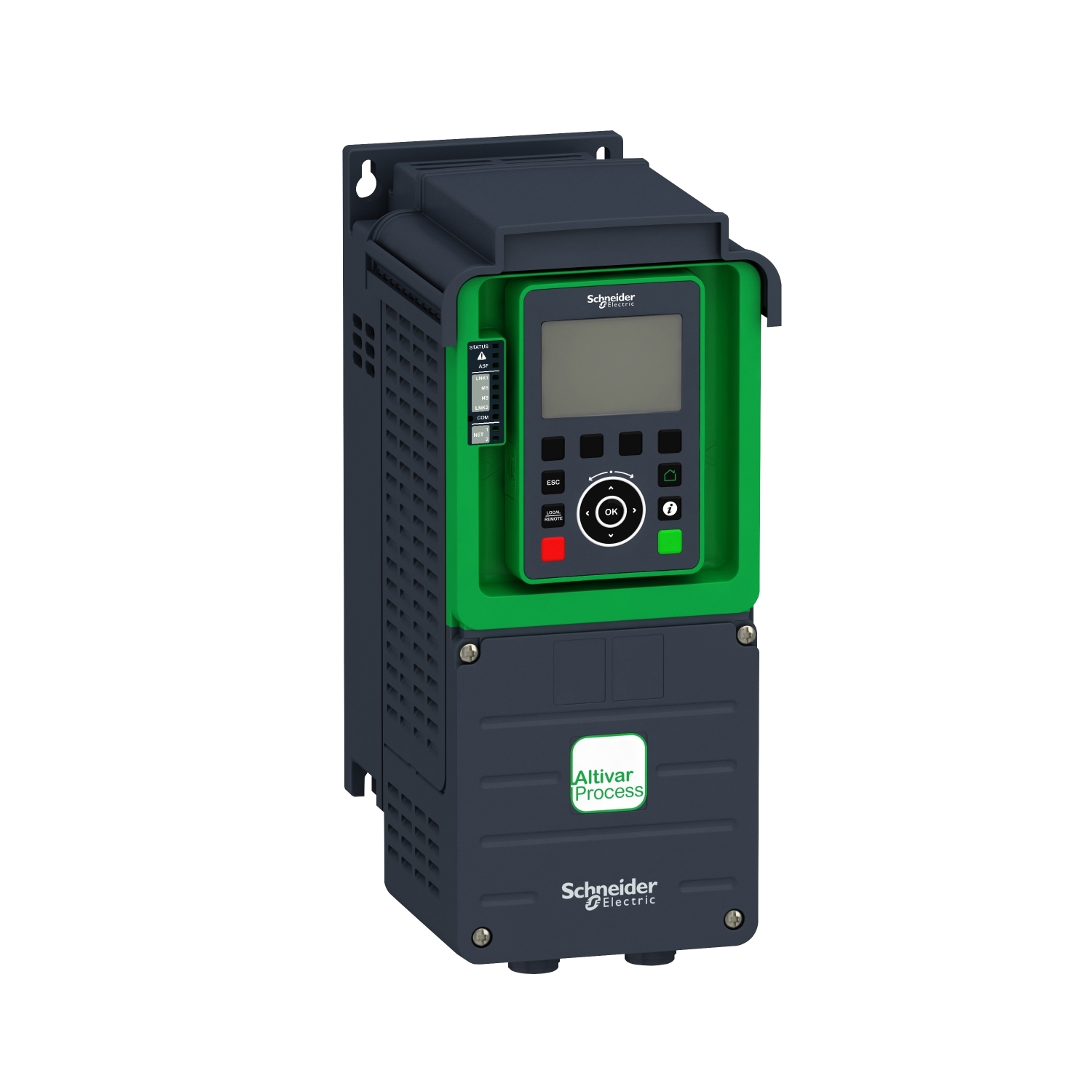

Schneider ATV930U40M3 Altivar 920 Variable Speed Drive 4kW 5HP 200–240V 3PH IP20

The Schneider Electric ATV930U40M3 is a high-performance variable speed drive from the Altivar Process range, engineered to deliver precise motor control, optimized energy efficiency, and robust durability for a variety of industrial applications. With a power rating of 4 kW (5 HP), this drive is designed for demanding processes where accuracy, adaptability, and reliability are critical. It supports three-phase input at 200–240 V, with a frequency range of 50/60 Hz, and can output up to 240 V three-phase with a maximum output current of 18.7 amps.

Performance and Control

This drive offers exceptional control flexibility, allowing operators to fine-tune motor speed and torque for maximum process efficiency. With a maximum input current of 15.1 amps, the ATV930U40M3 delivers smooth acceleration and deceleration, reducing mechanical stress on motors and equipment. Its variable frequency capabilities make it ideal for optimizing performance while minimizing wear, downtime, and energy costs.

Industrial Applications

Part of the Altivar 920 series, the ATV930U40M3 is suitable for a wide variety of applications, including pumps, fans, conveyors, mixers, and other equipment used in manufacturing, water treatment, food processing, and HVAC systems. It supports both constant torque and variable torque applications, making it a versatile choice for many industries.

Energy Efficiency

One of the primary advantages of the ATV930U40M3 is its ability to reduce operational energy consumption. By matching motor output precisely to process demands, the drive prevents unnecessary energy waste, helping businesses achieve sustainability targets while lowering utility costs.

Durability and Protection

Built with robust components and designed to withstand industrial environments, the ATV930U40M3 offers IP20 protection against solid objects larger than 12.5 mm. This ensures a long service life in control panels and indoor installations. In addition, the drive is equipped with protective features such as overload protection, short circuit prevention, and thermal safeguards to ensure safe, uninterrupted operation.

Ease of Use and Integration

The Altivar Process series is known for its user-friendly interface, and the ATV930U40M3 is no exception. It offers simple setup procedures, clear display menus, and a comprehensive parameter list for quick adjustments. This makes integration into existing systems straightforward, reducing commissioning time and simplifying maintenance.

Availability and Warranty

MRO Electric and Supply offers the Schneider Electric ATV930U40M3 with free shipping, immediate availability, and a 2-year warranty. This ensures that customers receive both rapid delivery and long-term support for their drive investment.

Frequently Asked Questions

What is the power rating of the ATV930U40M3?

It has a power rating of 4 kW, equivalent to 5 HP.

What is the input voltage range?

The drive operates at 200–240 V, three-phase.

What is the maximum input current?

It has a maximum input current of 15.1 A.

What is the output voltage range?

It can output 0–240 V, three-phase.

What is the maximum output current?

The drive can output up to 18.7 A.

What protection rating does it have?

It offers IP20 protection for indoor environments.

Does it support both 50 Hz and 60 Hz input?

Yes, it is compatible with both frequencies.

What applications is it best suited for?

It is used in pumps, fans, conveyors, mixers, and other industrial machinery.

Is it energy efficient?

Yes, it optimizes motor performance to reduce energy use.

Does it come with a warranty?

Yes, it comes with a 2-year warranty from MRO Electric.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Drives from other manufacturers such as Modicon and ABB.
