BMEXBP0400

2-year Warranty

Same Day Shipping

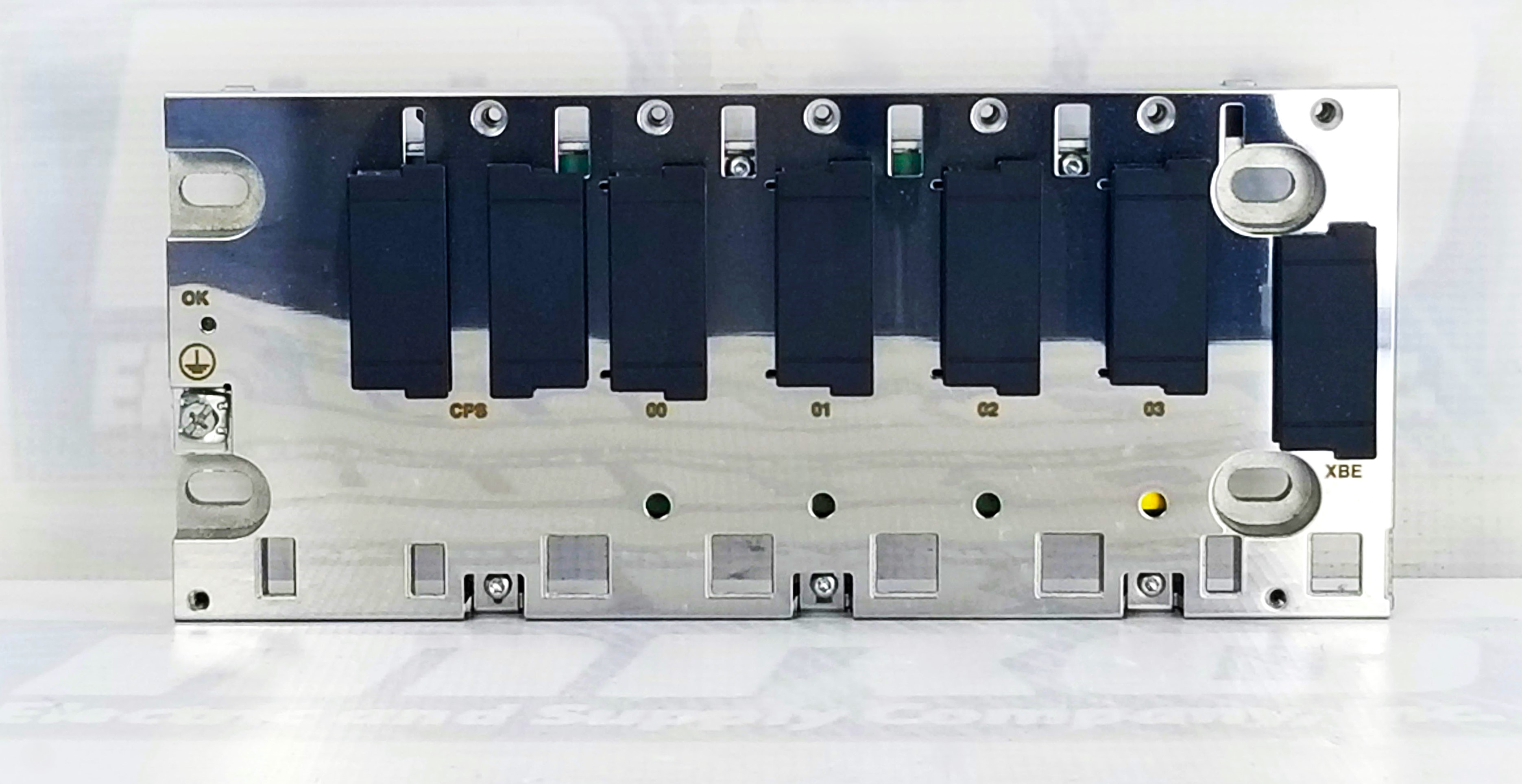

Schneider Electric BMEXBP0400

4-SLOTS, ETHERNET BACKPLANE, SCREW MOUNTED, 162 MW 3.3 V DC, 2.8 W 24 V DC, 1 CONNECTOR, IP20

Select Condition

Refurbished

Request Quote

New

2 in stock

$521.00

Request a Quote
  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberBMEXBP0400
ManufacturerSchneider Electric
TypeRacks
Warranty2 Year

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed BMEXBP0400 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this BMEXBP0400 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty BMEXBP0400, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 15 hours and 38 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty BMEXBP0400 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric BMEXBP0400 Overview

Schneider Electric BMEXBP0400 – 4-Slot Ethernet Backplane

Product Overview

The Schneider Electric BMEXBP0400 is a reliable and high-performance Ethernet backplane designed for use within the Modicon M580 automation platform. As a 4-slot backplane, it integrates automation modules and supports secure and efficient communication between processor modules, power supplies, and various I/O components. Engineered for demanding industrial environments, the BMEXBP0400 combines robust electrical characteristics with advanced networking capabilities to provide consistent, high-speed data flow throughout the control system.

Industrial-Grade Build and Mounting Design

Built to last, the BMEXBP0400 features a screw-mounted design that ensures solid, vibration-resistant installation within industrial control cabinets. This mechanical reliability is essential in applications where equipment is subject to movement or harsh environmental conditions. Its IP20 protection rating suits it for control panels and enclosures where environmental protection is provided, ensuring internal components remain safe from dust and accidental contact.

Power and Performance Specifications

The BMEXBP0400 supports four modules and ensures efficient power distribution throughout the backplane. It operates with a power consumption of 162 mW at 3.3 V DC and 2.8 W at 24 V DC, optimizing energy efficiency while supporting stable system performance. These electrical characteristics make the backplane suitable for large-scale systems and compact installations where power efficiency is a priority.

High-Speed Ethernet Connectivity

This model includes one high-speed Ethernet connector, enabling rapid data transfer and seamless integration into Ethernet-based control systems. The communication backbone supports real-time control, diagnostics, and data logging across distributed systems, making it an essential component in modern, digitally connected automation environments.

Versatility Within the Modicon M580 Ecosystem

The BMEXBP0400 is fully compatible with the Modicon M580 ePAC (Ethernet Programmable Automation Controller) platform, which is widely recognized for its reliability, openness, and cybersecurity features. This backplane supports various modules from the Modicon series, enabling flexibility in the design and expansion of automation systems. Whether used in discrete manufacturing or process control, this backplane provides the foundation for scalable and future-ready automation solutions.

Warranty and Shipping Benefits

MRO Electric and Supply offers a 2-year warranty on the BMEXBP0400, affirming its commitment to product quality and customer satisfaction. The product includes free shipping, making it an even more appealing choice for automation engineers and system integrators seeking fast, cost-effective solutions for their projects.

Frequently Asked Questions

What is the function of the BMEXBP0400?

It is a 4-slot Ethernet backplane that enables communication and power distribution among automation modules in the Modicon M580 platform.

How is it mounted?

The backplane is screw-mounted, providing secure installation in control cabinets.

What is the input power consumption?

It consumes 162 mW at 3.3 V DC and 2.8 W at 24 V DC.

What is the unit's protection rating?

It has an IP20 rating, protecting against dust and accidental contact.

Does this backplane support Ethernet communication?

Yes, it features a single Ethernet connector for high-speed network communication.

Is the backplane compatible with Modicon M580 controllers?

Yes, it is designed explicitly for the Modicon M580 automation platform.

How many modules can be installed?

It supports up to four modules in total.

Is there a warranty included?

Yes, it comes with a 2-year warranty from MRO Electric and Supply.

What environments is this backplane suitable for?

It is ideal for industrial control environments where enclosures provide necessary environmental protection.

Is shipping included in the purchase?

Yes, MRO Electric offers free shipping on this product.
