BMXDDI6402K

2-year Warranty

Same Day Shipping

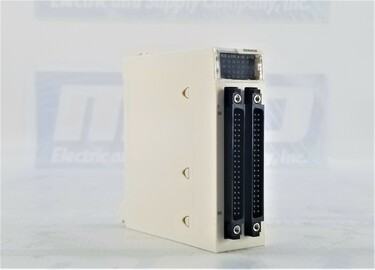

Schneider Electric BMXDDI6402K

M340 DIGITAL 62 INPUT VDC I/O MODULE

5/5
1 rating

5 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberBMXDDI6402K
ManufacturerSchneider Electric
TypeI/O Modules
Model #BMX-DDI-6402K
Warranty2 Year
RangeModicon X80
CategoryDiscrete input
Number input64 discrete
Input impedance40000 Ohm
Compatibility2-wire/3-wire proximity sensor IEC 60947-5-2 2-wire/3-wire proximity sensor IEC 61131-2 Type 1
Input typeIsolated discrete
MTBF reliability510000 H
Input Current sink
Power dissipation4.3 W
Sensor power supply19...30 V
Voltage24 V DC positive
Insulation resistance> 10 MOhm 500 V DC
Input current0.6 mA
DC max response time7 ms
Current consumption160 mA 3.3 V DC
Status LED1 LED (Green) +32 channels indicator 1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O
ProtectionIP20

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed BMXDDI6402K to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this BMXDDI6402K we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty BMXDDI6402K, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 9 hours and 52 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty BMXDDI6402K for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric BMXDDI6402K Overview

Schneider Electric BMX-DDI-6402K I/O Module

The Schneider Electric BMX-DDI-6402K is a robust and versatile I/O module, part of Schneider Electric's highly reliable Modicon X80 range. Known for its adaptability and durable construction, this module is designed to handle discrete input tasks in industrial automation systems. Built for compatibility and ease of use, the BMX-DDI-6402K is ideal for applications requiring reliable data acquisition and input processing, such as manufacturing, process control, and monitoring systems. This model is favored for its compact design, high input count, and straightforward integration with other components, making it a reliable choice for managing inputs in complex control systems.

High Input Capacity and Efficient Design

The BMX-DDI-6402K module features an impressive 64 discrete inputs, making it capable of handling multiple input channels simultaneously, which enhances its efficiency in data acquisition tasks. It is designed for isolated discrete input types, supporting current sinking inputs and a wide input impedance of 40000 Ohm. The module operates on a 24 V DC positive input voltage, with each input channel having a current of 0.6 mA, optimizing it for low-power applications without sacrificing performance. Additionally, it has a power dissipation of 4.3 W, allowing it to run efficiently and reducing the risk of overheating or energy loss, making it suitable for continuous industrial applications.

Compatibility and Sensor Integration

Engineered for versatility, the BMX-DDI-6402K is compatible with both 2-wire and 3-wire proximity sensors, meeting IEC 60947-5-2 and IEC 61131-2 Type 1 standards. This compatibility makes it an ideal choice for systems that require seamless integration with proximity sensors, such as in automation and monitoring setups. The module's compatibility with these sensor types enhances its flexibility, allowing users to incorporate a variety of sensors based on application needs without compatibility concerns. This adaptability is valuable in industrial environments where changing requirements may necessitate diverse sensor configurations.

Reliable Performance and Durability

The BMX-DDI-6402K module is built to perform reliably over extended periods, boasting an MTBF (Mean Time Between Failures) reliability rating of 510,000 hours, underscoring its durability and stability. With an insulation resistance of over 10 MOhm at 500 V DC, the module is designed to protect against electrical noise and ensure stable operation. It features an IP20 protection rating, which guards it against dust and particle ingress, making it a solid choice for use in controlled industrial settings. Schneider Electric's two-year warranty through MRO Electric and Supply and the free shipping option provide added quality and reliability assurance.

User-Friendly Status and Diagnostic LEDs

The BMX-DDI-6402K is designed with a comprehensive set of LEDs that improve ease of use and diagnostic capabilities. A green LED indicates module operation (RUN), while each of the 32 channels has an individual indicator LED for precise, quick monitoring. The module also includes a green diagnostic LED per channel, a red error LED (ERR) for module-level issues, and a red LED for I/O status, making it easy for users to monitor module status and troubleshoot as needed. This visual feedback helps reduce downtime by allowing operators to identify issues promptly and efficiently.

FAQs

1. What is the primary function of the BMX-DDI-6402K module?

This module is designed for discrete input handling in automation systems, allowing it to acquire data from multiple input channels and efficiently process the information in real-time applications.

2. What type of sensors is the BMX-DDI-6402K compatible with?

The BMX-DDI-6402K is compatible with 2-wire and 3-wire proximity sensors, following IEC 60947-5-2 and IEC 61131-2 Type 1 standards, allowing for flexible sensor integration.

3. How many input channels does the BMX-DDI-6402K module support?

This model supports 64 discrete input channels, making it suitable for high-density input applications in complex systems.

4. What is the power dissipation of this module?

The module's power dissipation rating is 4.3 W, which enables it to operate efficiently while minimizing the risk of overheating.

5. Is there a warranty and support available for this module?

Yes, MRO Electric and Supply offers a two-year warranty and free shipping, ensuring reliable customer support and enhanced product assurance.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like BMXDDI6402K, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our BMXDDI6402K products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
