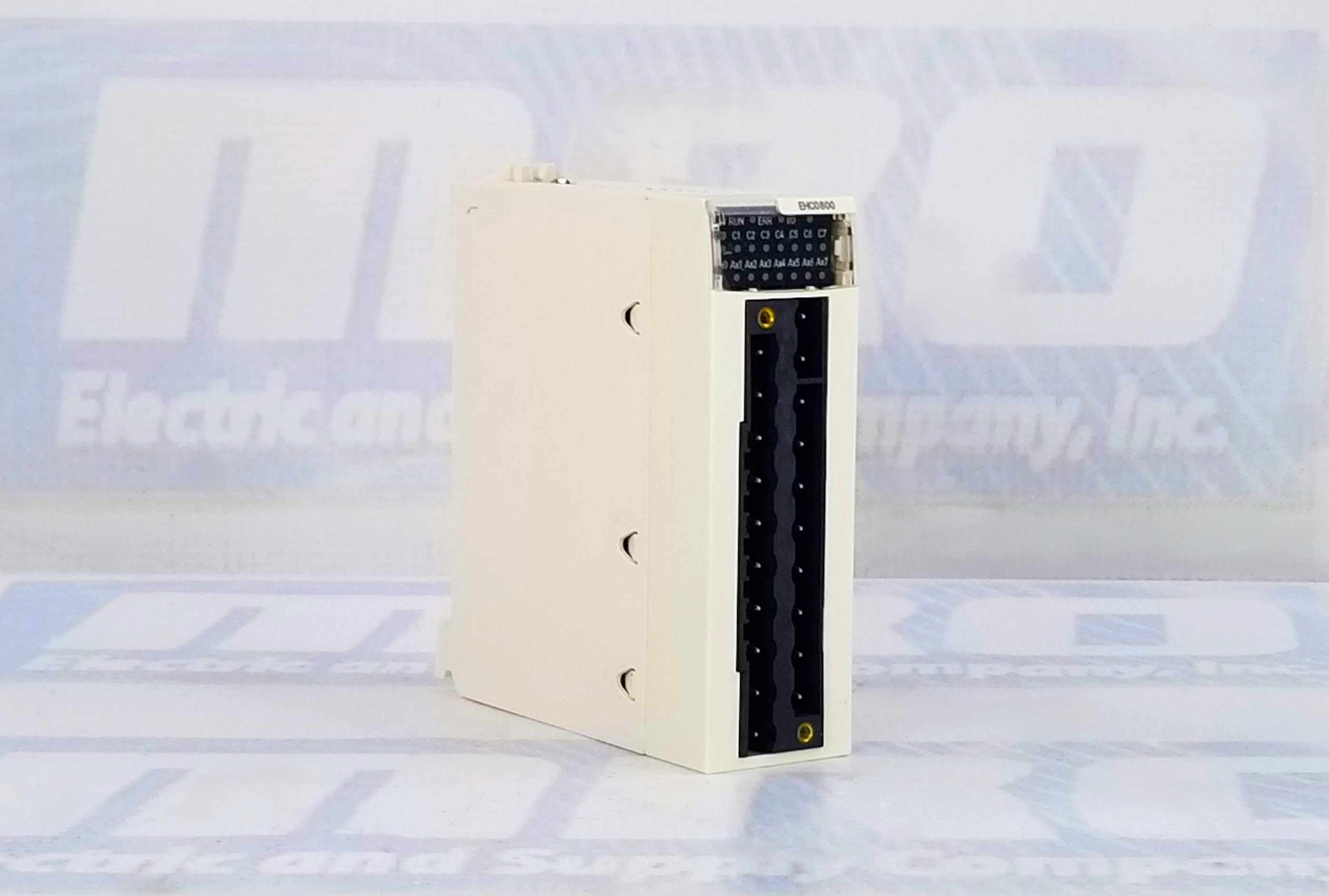

8 CHANNEL HIGH SPEED COUNTER MODULE
| Part Number | BMXEHC0800 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | BMX-EHC-0800 |
| Warranty | 2 Year |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed BMXEHC0800 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this BMXEHC0800 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty BMXEHC0800, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty BMXEHC0800 for credit when ordering from MRO Electric
Advanced High-Speed Counting Performance
The Schneider Electric BMXEHC0800 is a high-performance, high-speed counter module designed for use with the Modicon M340 automation platform. Engineered for fast, accurate, and reliable input signal processing, this module supports up to 8 counting channels and offers a maximum counting frequency of 10,000 Hz. It is specifically designed for industrial applications requiring rapid response times, precise pulse counting, and event tracking across various automation environments. Whether in manufacturing, material handling, or process control, the BMXEHC0800 delivers speed and precision to enhance system performance.
With its high-speed capabilities, the BMXEHC0800 enables real-time processing of encoder pulses, proximity sensors, and other high-frequency input signals. It features two single-mode input channels and three special dual-phase mode inputs, offering flexible configuration options tailored to various application requirements. The dual-phase input capability is handy for quadrature encoder processing, enabling accurate position and direction tracking for motion control and conveyor systems. Its versatile input support allows users to integrate the module into a wide range of automated systems.
Operating at 24 VDC, the BMXEHC0800 is classified as a Type 3 input module, designed to meet the demands of industrial voltage and signal standards. This ensures compatibility with common field devices and industrial controllers. The module is rated IP20, making it suitable for use in protected cabinet environments within control panels. Its rugged design and compact form factor make it ideal for modern control system architectures, especially where space is limited and high-speed performance is critical.
Installation and configuration of the BMXEHC0800 are straightforward within the Modicon M340 system. It integrates seamlessly with Unity Pro or EcoStruxure Control Expert software, enabling users to quickly configure counting modes, preset values, and diagnostic parameters. The module features LED indicators for status monitoring and diagnostics, enabling operators to identify issues such as signal loss or fault conditions quickly. These real-time diagnostics support faster maintenance and minimal system downtime.
The Schneider Electric BMXEHC0800 is immediately available through MRO Electric and Supply, complete with a 2-year warranty and free shipping. MRO Electric provides fast delivery and reliable customer support, ensuring that your automation systems can be upgraded or maintained without delay. As industrial automation continues to demand speed, reliability, and flexibility, the BMXEHC0800 stands out as a trusted solution for high-speed counting and signal input needs. It meets global standards and integrates seamlessly with existing Schneider Electric platforms, making it a future-proof investment for automation professionals.
What is the primary function of the BMXEHC0800 module?
It serves as a high-speed counter for input signal processing in automation systems.
How many channels does this module support?
It supports up to 8 input channels.
What is the maximum counting frequency it can handle?
The module can count input pulses at speeds up to 10,000 Hz.
What voltage does the module operate on?
It operates at 24 VDC and is rated as a Type 3 input.
What kind of inputs are supported?
It supports two single-mode inputs and three dual-phase special mode inputs.
Is this module compatible with quadrature encoders?
Yes, the dual-phase input mode supports quadrature encoder signals.
Which software is used to configure the module?
It is configured using Unity Pro or EcoStruxure Control Expert.
What is the environmental protection rating of the module?
It is rated IP20, suitable for installation in protected enclosures.
Is it available for immediate shipment?
Yes, MRO Electric offers immediate availability with free shipping.
Does it come with a warranty?
Yes, the module includes a 2-year warranty from MRO Electric and Supply.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like BMXEHC0800, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our BMXEHC0800 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
