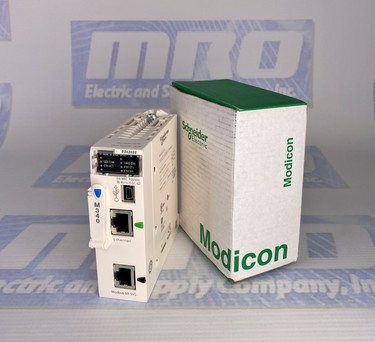

Schneider Electric BMXP342020

Technical Description: BMXP342020 Processor Module M340

General Overview

The BMXP342020 is a key component of the Modicon M340 automation platform. This processor module is designed for a wide range of applications and offers a Transparent Ready concept alongside CANopen connectivity. As a testament to its capabilities, it supports a maximum of 1024 discrete I/O in multi-rack configuration and 256 analog I/O.

Key Specifications

• Product Range: Modicon M340 automation platform.
• Type: Processor module.
• Concept: Transparent Ready and CANopen.
• Rack Capacity: Maximum of 4 racks.
• Slot Capacity: Total of 11 slots.
• Discrete I/O Capacity: 1024 I/O in multi-rack and 704 I/O in single-rack configurations.
• Analog I/O Capacity: 256 I/O in multi-rack and 66 I/O in single-rack configurations.
• Application Specific Channels: 36 in total.

Communication Capabilities

• Integrated Connections:
• Non-isolated serial link with varying modes and transmission capacities.
• USB port at a speed of 12 Mbit/s.
• Ethernet TCP/IP RJ45, with a transmission speed of 10/100 Mbit/s.
• Port Specifications: Ethernet 10BASE-T/100BASE-TX.
• Bus Length and Addresses:
• Ranges from 0-1000m for serial links, depending on isolation and mode.
• Addresses range from 0-248, based on the mode.
• Memory:
• Internal RAM with capacities of 4096 kB, 256 kB for data, and 3584 kB for program constants and symbols.
• Supplied memory card (BMXRMS008MP) for backup and web server activation.
• Processing and Overhead:
• Execution time per instruction varies from 0.12 µs to 1.16 µs based on the operation.
• System overhead is 0.13 ms for fast tasks and 0.7 ms for master tasks.

Physical and Environmental Characteristics

• Weight: 0.205 kg.
• Operating Conditions: Ambient air temperature range is 0–60 °C, and the relative humidity range is 10–95% without condensation.
• Protection and Directives: The device comes with an IP20 degree of protection and adheres to several European directives, including low voltage, electromagnetic compatibility, and WEEE directives.
• Certifications: Certified as a Green Premium product, Mercury free, and has received the China RoHS declaration.
• Disposal: In the European Union, the product should be disposed of following specific waste collection guidelines.

FAQs

• Q: What is the main use of the BMXP342020 Processor Module?
• A: It is primarily used in the Modicon M340 automation platform to control and manage a wide range of applications.
• Q: How many racks and slots does it support?
• A: It supports up to 4 racks and has 11 slots.
• Q: What is the maximum discrete I/O capacity?
• A: 1024 I/O in multi-rack configuration.
• Q: How is the device protected against external factors?
• A: It has an IP20 degree of protection.
• Q: How should the product be disposed of in the European Union?
• A: The product must be disposed of following specific waste collection guidelines.

Advanced Connectivity and Monitoring

The BMXP342020 Processor Module M340 boasts an extensive suite of connectivity features that ensure it can seamlessly integrate into most industrial settings. With an array of non-isolated serial link configurations, it can easily adapt to communication standards. Especially noteworthy is its compatibility with both Modbus RTU/ASCII and character modes, allowing it to function efficiently within existing Modbus networks. Furthermore, its Ethernet capabilities facilitate real-time data transfer at impressive speeds, making it suitable for applications demanding swift data exchanges. Integrated monitoring tools, such as the diagnostic and event counters via Modbus, allow for a streamlined troubleshooting process and proactive maintenance, ensuring the system remains operational with minimal disruptions.
