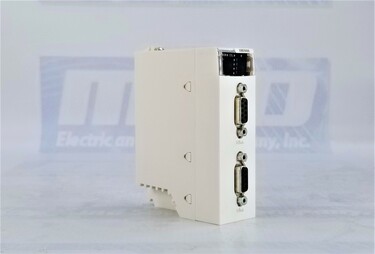

M340 BACKPLANE EXTENDER - STANDARD
| Part Number | BMXXBE1000 |
| Manufacturer | Schneider Electric |
| Type | Backplane Models |
| Model # | BMX-XBE-1000 |
| Warranty | 2 Year |
| Function | Backplane Extender |
| Power supply | 24/3.3VDC |
| Connectors | 2 FEMALE 9PIN D-SUB |
| Indicators | LED |
| Protection | IP20 |
| Rating | 160/22MA |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed BMXXBE1000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this BMXXBE1000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty BMXXBE1000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty BMXXBE1000 for credit when ordering from MRO Electric
The Schneider Electric BMXXBE1000 is a compact yet powerful backplane extender module designed to enhance the connectivity and expandability of automation control systems. As part of Schneider Electric's robust portfolio, this model provides a seamless way to extend the backplane in automation setups, enabling users to connect additional modules without compromising system integrity or performance. The BMXXBE1000 is engineered to support various applications, particularly in manufacturing and industrial automation, where reliable data transfer and module extension are essential for system efficiency and flexibility.
With a power supply requirement of 24 VDC and 3.3 VDC, the BMXXBE1000 efficiently powers the backplane extension, ensuring consistent performance across connected modules. It has a rated current of 160 mA at 24 VDC and 22 mA at 3.3 VDC, providing the power needed to manage multiple modules while minimizing energy consumption. This design makes the BMXXBE1000 ideal for applications requiring low power but high reliability, allowing it to be used in various automation systems without straining power resources.
The BMXXBE1000 features two female 9-pin D-sub connectors, which make it highly adaptable to multiple automation components. These connectors facilitate straightforward and secure connections between devices, simplifying setup and configuration for users. The D-sub connectors are a reliable choice in industrial settings, providing a durable connection that resists disconnection due to vibrations or other environmental factors common in industrial and manufacturing environments.
For operational monitoring, the BMXXBE1000 includes LED indicators that provide real-time feedback on module status, ensuring users are promptly informed of any issues or status changes. These indicators are valuable in fast-paced industrial environments where quick identification of connectivity or power issues is crucial to maintaining productivity. LED indicators also simplify troubleshooting and system maintenance, helping operators quickly identify and address potential problems without halting the entire operation.
Designed for industrial environments, the BMXXBE1000 offers IP20-rated protection, shielding it from dust and small particles while ensuring safe operation. Although it does not provide waterproof protection, the IP20 rating is sufficient for most indoor automation applications where exposure to water is minimal. This protection level supports the module's durability, making it suitable for long-term use in various controlled environments, including control rooms and production floors.
The BMXXBE1000’s compact size makes it easy to integrate into existing systems without requiring significant space, making it ideal for setups with limited physical room. Schneider Electric has designed this model with ease of installation in mind, allowing users to install and connect the module with minimal hassle. This flexibility and compatibility with Schneider’s other automation products make it a practical addition to any control system.
The BMXXBE1000 is backed by a two-year warranty from MRO Electric and Supply, giving users confidence in the product's reliability and Schneider Electric's commitment to quality. This warranty includes support for repairs and replacements, ensuring the module’s long-lasting performance in demanding industrial environments.
Q: What is the primary function of the BMXXBE1000 module?
A: The BMXXBE1000 is a backplane extender module that allows users to expand their automation control system by connecting additional modules, enhancing system functionality without needing to overhaul existing setups.
Q: What connectors does the BMXXBE1000 use?
A: This module is equipped with two female 9-pin D-sub connectors, which provide a stable connection for extending the backplane and integrating additional devices.
Q: What are the power requirements for the BMXXBE1000?
A: The BMXXBE1000 operates on a 24 VDC and 3.3 VDC power supply, with rated current values of 160 mA at 24 VDC and 22 mA at 3.3 VDC.
Q: Does the BMXXBE1000 offer any built-in indicators?
A: Yes, it includes LED indicators that provide real-time status information, enabling users to monitor connectivity and operational status quickly.
Q: What level of protection does the BMXXBE1000 offer?
A: The BMXXBE1000 has an IP20 protection rating, safeguarding it from dust and small particles, suitable for most indoor industrial environments.
Q: What is the warranty on the BMXXBE1000?
A: MRO Electric and Supply offers a two-year warranty on this model, covering repairs and replacements to ensure reliable performance in demanding applications.
Q: In what types of applications is the BMXXBE1000 most effective?
A: This module is ideal for industrial automation applications where system expansion is required, such as in manufacturing, assembly lines, and other process automation setups.
