|Input Voltage||200-230 V AC|
|Use||NX100/ XRC MOTOMAN|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed CPS-150F to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this CPS-150F we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty CPS-150F, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty CPS-150F for credit when ordering from MRO Electric

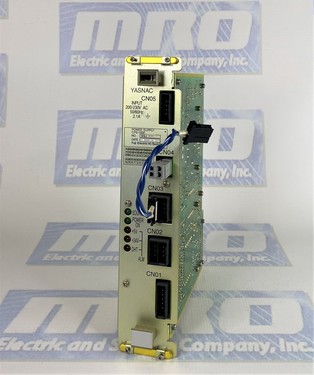

The CPS-150F is the control supply unit in the circuit board rack of the CPU configuration. The Yaskawa CPS-150F is located within the Power supply Unit, specifically in the CPU rack.
The CPU rack consists of three parts. These parts are the System Control Circuit Board (JANCD-XCP01o), the Control Power Supply Unit (CPS-150F), and the WAGO Connector.
The System control circuit board functions as the control for the entire system. It delivers control to the operating keys and shows the display to the programming pendant. It controls operation and calculates interpolation. It is also responsible for the interface of the servo control circuit board using a serial communication board. (JANCD-XIF03 or JANCD-XIF04) The system control circuit board provides two interface options: the PC card interface and Serial interface for RS-232C with an optional JANCD-XMM 01 board that can be installed when CMOS memory is expanded.
The control power supply unit is the unit that supplies the DC power (DC5V, 24V) to the I/O contactor unit (JZNC-XIU 01_). It also supplies the DC power to the programming pendant. It is also designed with an input function. The input function turns the control power supply on and off.
Specifications for the CPS-150F
The CPS-150F input specifications:
Rated Input Voltage: AC200/220, Voltage Fluctuation Range: +10% to -15% (AC170 to 242V}, and Frequency: 50/60Hz ± 2Hz (48 to 62Hz).
The output voltage for the Yaskawa CPS-150F is DC + 5V: 10A DC +24V: 4.0A.
The CPS-150F is equipped with an overheat detector that detects temperatures inside the controller is around 65° C.
The indicator on the CPS-150F has a color display for status information.
The CPS-150F display for SOURCE lights green when the AC power supply input is ON. This indicator is normally ON- indicating no problem. The POWER ON display lights green when the DC power supply input is ON. This indicator is normally ON- indicating no problem. The CPS-150F +5 V indicator lights red when the +5V supply has either an overvoltage or an overcurrent. This indicator ON indicates a problem with the unit. The +24V display will light RED when the interior of the unit overheats. This indicator ON indicates a problem with the unit.
CN05, 06, 26, and 27 on the I/O contactor unit (JZNC-XIU01_) and CN04 on the control power supply unit are manufactured with a connector made by WAGO. A wiring tool for the WAGO connector is essential to wire the WAGO connector. Two of the necessary tools are supplied with the XRC.
The CPS-150F control supply unit by Yaskawa comes with a two-year warranty.
The CPS-150F is a XRC CONTROL POWER SUPPLY UNIT that is manufactured by Yaskawa. These products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. All of the products in the robotics line come with a 2 year warranty from MRO Electric. We also carry Power Supplies from other manufacturers such as Schneider Electric and KUKA.
Check out the rest of our Yaskawa product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at email@example.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 3HAC023195-001, take a look at more from our Robotics line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our CPS-150F products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
