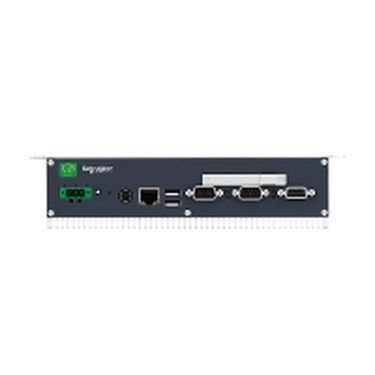

| Part Number | HMIBSOCND1E01 |
| Manufacturer | Schneider Electric |
| Model # | HMIBSOCND1E01 |
| Type | HMIs |
| Warranty | 2 Year |
| Range of product | Magelis iPC |
| Product or component type | PC BOX |
| Device short name | S-BOX PC Optimum |
| Range compatibility | IDisplay |
| Processor name | Atom N270 1.6 GHz |
| Data storage equipment | 8 GB Compact Flash card |
| Memory description | 2 GB RAM DDR2 internal |
| Free slots | 1 Internal SATA HDD/SSD |
| 1 Compact Flash card | |
| Number of slots | 1 mini PCI Express half-size |
| Display resolution | 1600 x 1200 pixels |
| Watchdog timer | 1...255 ms |
| Type of cooling | Fanless |
| Integrated connection type | 1 VGA |
| 1 Ethernet - RJ45 | |
| 2 USB 2.0 port | |
| 2 COM1 serial link - male SUB-D 9 - RS232 | |
| Port Ethernet | 10BASE-T/100BASE-T/1000BASE-T |
| Operating system | Windows Embedded Standard WES2009 |
| Software package | Vijeo XD run time demo |
| Vijeo Designer run time demo | |
| Vijeo Designer software 6.2 | |
| [Us] rated supply voltage | 24 V DC (power supply) |
| Supply voltage limits | 9...36 V |
| [In] rated current | 1.5 A |
| Power consumption | 15 W |
| Control type | Button reset |
| Local signalling | Buzzer |
| Depth | 149.2 mm |
| Height | 58.7 mm |
| Width | 254.8 mm |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed HMIBSOCND1E01 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this HMIBSOCND1E01 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty HMIBSOCND1E01, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty HMIBSOCND1E01 for credit when ordering from MRO Electric
Additional Information
The HMIBSOCND1E01 is a S-Box Pc Optimum Hmibso Compact Flash, DC, 1 Slot that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products come with a 2 year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like HMIBSOCND1E01, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our HMIBSOCND1E01 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
