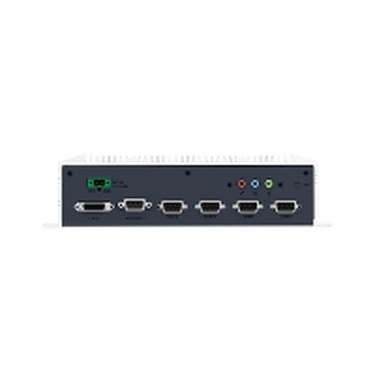

S-Box Pc Universal Hmibsu Cfast, DC, 1 Slot

2 year warranty


Part NumberHMIBSUCND1W01
ManufacturerSchneider Electric
SeriesModicon Magelis
TypeBox Industrial PCs
Warranty2 year
Product weight2.5 kg
Range of productMagelis iPC
Product or component typePC BOX
Device short nameS-BOX PC Universal
Range compatibilityIDisplay
Processor nameAtom N2600 dual core 1.6 GHz
Data storage equipment16 GB CFast card
Memory description4 GB RAM DDR3 internal
Free slots1 Internal SATA HDD/SSD
1 CFast
Number of slots1 mini PCI Express full-size
Display resolution1920 x 1200 pixels
Watchdog timer1...255 ms
Type of coolingFanless
Integrated connection type1 VGA
4 COM1 serial link - male SUB-D 9 - RS232/422/485
2 COM1 serial link - male SUB-D 9 - RS232
5 USB 2.0 port
1 audio output
3 Ethernet (rate: 10/100/1000 Mbps)
Operating systemWindows Embedded Premium 7 32 bits
Software packageVijeo XD run time demo
Vijeo Designer run time demo
Vijeo Designer software 6.2
[Us] rated supply voltage24 V DC (power supply)
Supply voltage limits12...24 V
[In] rated current1.5 A
Power consumption16 W
Input/Output number8 configurable by software digital
Depth133 mm
Height68.4 mm
Width264.5 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed HMIBSUCND1W01 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this HMIBSUCND1W01 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty HMIBSUCND1W01, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

This product weighs 1lb. Want it shipped today?

  • Order within the next 7 hours and 16 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty HMIBSUCND1W01 for credit when ordering from MRO Electric

Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like HMIBSUCND1W01, take a look at more from our Modicon Magelis line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
