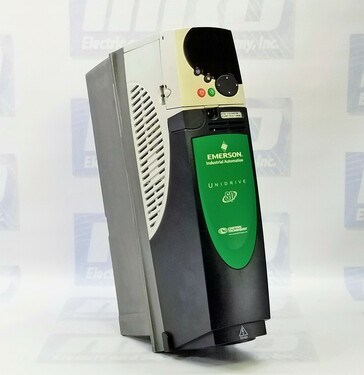

MANUFACTURER: Control Techniques
DESCRIPTION: 400V AC Panel Mount Drive
PRODUCT TYPE INFO: Unidrive sp
| Part Number | SP1404 |
| Manufacturer | Control Techniques |
| Model # | SP1404 |
| Type | AC Drives |
| Warranty | 2 Year |
| Typical Motor Output Power (HP) | 3 |
| Input Voltage | 380 - 480VAC |
| Frame Size | 1 |
| Normal Duty | |
| Max Cont. Current (A) | 6.9 |
| Typical Motor Output Power (kW) | 3 |
| Typical Motor Output Power (HP) | 5 |
| Heavy Duty | |
| Max Cont. Current (A) | 5.8 |
| Typical Motor Output Power (kW) | 2.2 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed SP1404 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this SP1404 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty SP1404, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty SP1404 for credit when ordering from MRO Electric
Additional Information
The Control Techniques Unidrive, model SP1404, is an electrical drive that requires careful handling due to high voltages and currents. It has a maximum continuous input current of 10.6 amps, which must be protected by a fuse, with an IEC gG 12-amp fuse recommended and a UL 15-amp fuse required. The module also has several cable size requirements, including 1.5 mm squared for the EN60204 input, 1.0 mm squared for the EN60204 output, 14 AWG for the UL508C input, and 14 AWG for the UL508C output.
The module comes with general warnings about electrical safety, as the voltages used in the drive can cause severe electrical shock.
The Unidrive is a component for professional incorporation into complete equipment or a system, but if installed incorrectly, it may present a safety hazard. Close attention is required to the electrical installation and system design to avoid hazards either in normal operation or in the event of equipment malfunction.
The Control Techniques Unidrive, model SP1404 has several functions, including STOP and SAFE TORQUE OFF. The SAFE TORQUE OFF function is a safety-related application.
Finally, careful consideration must be given to the functions of the drive that might result in a hazard, either through their intended behavior or through incorrect operation due to a fault. In any application where a malfunction of the drive or its control system could lead to or allow damage, loss, or injury, a risk analysis must be carried out, and where necessary, further measures must be taken to reduce the risk. For example, an over-speed protection device may be needed in case of failure of the speed control or a fail-safe mechanical brake in case of loss of motor braking.
Ensure proper use of the drive, remain in compliance with specified environmental limits and avoid excessive physical force. Install the motor following the manufacturer's recommendations. The values of the motor parameters set in the drive affect the protection of the motor, and it is essential to enter the correct value in parameter 0.46 motor-rated current, as this affects the thermal protection of the motor.
The brake control functions are designed to facilitate coordinated operation between an external brake and the drive.
Several parameters can significantly affect the operation of the drive. Alterations to these parameters should only be made after careful consideration of the impact on the controlled system.
Electrical installation Risk of electric shock Several locations within the drive have voltages that can cause severe electric shock and may be lethal. These include AC supply cables and connections, output cables and connections, and various internal parts of the drive and external option units. Unless otherwise specified, control terminals are single-insulated and should not be touched.
The drive contains capacitors that retain a potentially lethal voltage even after the AC supply has been disconnected. After the drive has been energized, the AC supply must be isolated for at least ten minutes before work can proceed.
The SP1404 is a 400V AC Panel Mount Drive that is manufactured by Control Techniques. These products are manufactured in United Kingdom and are designed for Metal production, paper processing, and material conveying usage. All of the products come with a 2 year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Siemens and Yaskawa.
Check out the rest of our Control Techniques product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like SP1404, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our SP1404 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
