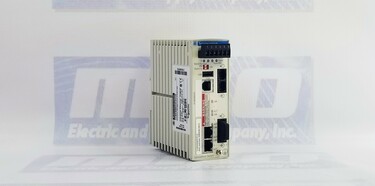

MODICON MAGELIS CONNEXIUM MANAGED SWITCH, 2TX/2FX-MM
Available
Free Shipping
2 Year MRO warranty
| Part Number | TCSESM043F2CU0 |
| Manufacturer | Schneider Electric |
| Type | Switches |
| MRO Warranty | 2 Year |
| Product Name | ConneXium Managed Switch (2TX/2FX‑MM) |
| Type | Ethernet TCP/IP Managed Switch |
| Copper Ports | 2 × 10/100BASE‑TX RJ45 |
| Fiber Ports | 2 × 100BASE‑FX multimode SC |
| Maximum Cascaded Switches | Unlimited |
| Transmission Media | Twisted shielded CAT5E & multimode fiber optic |
| Ethernet Protocols | RSTP, VLAN, IGMP Snooping, Priority, Multicast Filtering, Data Stream Control |
| Management Features | Managed via web interface; SNMP; Secure port |
| Redundancy | HiPER ring, single ring coupling |
| Cybersecurity | Port hardening, role‑based access control |
| Configuration | Web server, VLAN, SNTP, SMTP v3 |
| Supply Voltage | 12–48 V AC / 9.6–60 V DC SELV |
| Power Consumption | ~7.7 W |
| Enclosure Rating | IP20 |
| Mounting | 35 mm symmetrical DIN rail |
| Dimensions | 47 mm W × 111 mm D × 131 mm H |
| Certifications | CE, GL, C‑Tick, UL 508, CSA C22.2 No.214, EN/IEC 61131‑2 |
| Typical Applications | Industrial Ethernet networking, factory automation |
| MRO Warranty | 2‑Year MRO Electric |
| Availability | In stock (while supplies last) |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TCSESM043F2CU0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year MRO warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TCSESM043F2CU0 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TCSESM043F2CU0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TCSESM043F2CU0 for credit when ordering from MRO Electric
The Schneider Electric TCSESM043F2CU0 is a robust industrial Ethernet switch designed to deliver reliable network communication in automated systems and factory data architectures. Part of Schneider Electric’s ConneXium product line, this Ethernet TCP/IP managed switch provides a flexible solution for connecting copper and fiber‑optic links in demanding industrial environments, enabling high availability, redundancy, and advanced traffic control.
This managed switch features 2 copper RJ45 ports supporting 10/100BASE‑TX connections alongside 2 multimode fiber ports (100BASE‑FX) for longer distance and interference‑immune links. This dual media support allows integrators to mix and match copper and fiber connections within the same network, making it ideal for distributed control systems, machine networking, and manufacturing floor topologies.
The TCSESM043F2CU0 supports a comprehensive set of managed network services. With Rapid Spanning Tree Protocol (RSTP), VLAN segmentation, IGMP snooping, priority port handling, and multicast filtering, it provides network optimization, loop avoidance, and enhanced traffic control. Configuration and monitoring are easily accomplished through a built‑in web server interface, making network setup and diagnostics quick and intuitive.
Industrial networks often demand both uptime and performance under failure conditions. The ConneXium switch includes ring redundancy support and coupling capability to keep communication paths active if a link in the network fails. To help protect network integrity, it also offers cybersecurity features such as port hardening and role‑based access control to safeguard against unauthorized access and network misuse.
Designed for industrial panels, the switch has a compact footprint and fits on standard 35 mm DIN rails. With an IP20 rating, it is suited for installation inside control cabinets and enclosures. Its small form factor makes it easy to integrate into existing automation panels without consuming valuable space.
The switch supports both standard Ethernet TCP/IP protocols and industrial Ethernet services, including SMTP v3 and SNTP clients for synchronization and alerting. Certified to international rugged‑use standards, including CE, GL, and UL 508, the TCSESM043F2CU0 meets key electrical and safety requirements for industrial installations.
MRO Electric offers this Schneider Electric-managed switch with a 2‑year warranty, immediate availability, and expert support. Whether you’re building out an industrial control network, upgrading legacy switches, or deploying fiber‑backed communication segments, the TCSESM043F2CU0 delivers flexibility, performance, and peace of mind backed by industrial‑grade reliability.
What does the TCSESM043F2CU0 switch do?
It’s an industrial managed Ethernet switch that integrates copper and multimode fiber connections for reliable industrial network communication.
How many network ports does it have?
It has 2 copper RJ45 and 2 multimode fiber optic ports.
What protocols does it support?
It supports RSTP, VLAN, IGMP snooping, priority ports, and multicast filtering.
Can this switch be used in a redundant ring?
Yes — it supports network redundancy and ring coupling.
What voltage does it require?
It operates from 12–48 V AC or 9.6–60 V DC SELV.
Is it suitable for industrial automation?
Yes — it’s designed for industrial Ethernet networks and factory automation.
What environmental rating does it have?
It carries an IP20 enclosure rating.
How is it mounted?
It mounts on a standard 35 mm symmetrical DIN rail.
Does it include cybersecurity features?
Yes — it includes port hardening and role‑based access control.
What warranty does MRO Electric provide?
A 2‑year MRO Electric warranty.
Schneider Electric products are manufactured in France and designed for Use in Material handling, packaging, and textile machines. They come with a 2-year MRO warranty from MRO Electric. We also carry Switches from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TCSESM043F2CU0, take a look at more from our Switches line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TCSESM043F2CU0 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
