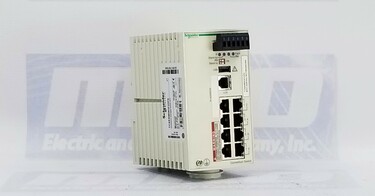

MODICON MAGELIS ETHERNET, CONNEXIUM MANAGED SWITCH, 8TX, TCSE SERIES, 8 PORTS
| Part Number | TCSESM083F23F0 |
| Manufacturer | Schneider Electric |
| Type | Switches |
| MRO Warranty | 2 Year |
| Product Name | ConneXium Managed Ethernet Switch |
| Type | Ethernet TCP/IP Managed Switch |
| Ports | 8 × 10/100BASE-TX Copper RJ45 |
| Communication Protocol | Ethernet TCP/IP |
| Management & Services | VLAN, IGMP Snooping, Multicast Filtering, Priority Port, Data Stream Control, SNTP Client, SMTP V3, RSTP, Secure Port |
| Redundancy Protocols | HiPER Ring, Redundant Single Ring, Ring Coupling |
| Maximum Cascade Switches | Unlimited |
| Max Switches in Ring | 50 |
| Integrated Connection | Shielded RJ45 Copper Cable |
| Transmission Medium | CAT 5E Twisted Shielded Pair |
| Supply Voltage | 24 V (SELV) |
| Supply Voltage Limits | 9.6–60 V DC, 18–30 V AC SELV |
| Power Consumption | 5.3 W |
| Mounting | 35 mm DIN Rail |
| Enclosure Rating | IP20 |
| Indicators | LEDs for power, fault, ring status, port link/activity |
| Alarm Output | 1 dry contact, 1 A (common industrial alarm) |
| Max Cable Distance | 100 m copper |
| Operating Temperature | 0–60 °C typical |
| Certifications | CE, UL 508, CSA C22.2 No.214, EN/IEC 61131-2, UL 1604 Class I Div 2 |
| Typical Applications | Industrial Ethernet communications, automation networks |
| MRO Warranty | 2 Year |
| Availability | In stock / immediate |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TCSESM083F23F0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year MRO warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TCSESM083F23F0 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TCSESM083F23F0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TCSESM083F23F0 for credit when ordering from MRO Electric
The Schneider Electric ConneXium TCSESM083F23F0 is an industrial-grade managed Ethernet TCP/IP switch designed to provide fast, reliable, and secure network connectivity for automation systems, distributed I/O networks, and industrial control applications. As part of the ConneXium family, this switch offers advanced networking capabilities tailored for demanding environments where uptime, redundancy, and manageability are critical.
Equipped with eight 10/100BASE-TX RJ45 copper ports, the TCSESM083F23F0 supports flexible network configurations using standard shielded twisted-pair CAT 5E cables with up to 100 m reach per link. This ensures straightforward integration with PLCs, HMIs, SCADA systems, and other automation devices.
This ConneXium switch isn’t just an unmanaged hub — it’s a full managed Ethernet switch with a broad suite of services that help administrators configure, monitor, and optimize network performance. Built-in features include VLAN support for traffic segmentation, IGMP Snooping and multicast filtering for efficient broadcast control, priority port handling, data stream control, and SNTP/SNMP support for synchronization and remote monitoring. A built-in web server interface simplifies setup and parameter tuning without the need for specialized tools.
Industrial networks demand resilience — especially in sectors like manufacturing, material handling, and energy. The TCSESM083F23F0 supports redundancy protocols including HiPER ring support, redundant single rings, and ring coupling, allowing the switch to maintain network communication even if certain links fail. With support for up to 50 switches in a redundancy ring, it’s ideal for large network topologies.
Security is essential for industrial Ethernet. This switch includes port hardening and role-based access controls to protect against unauthorized changes. Detailed status indicators (LEDs for power, fault, ring status, and per-port link/activity) help technicians troubleshoot and maintain the network more efficiently. An integrated alarm dry contact provides simple external alerting for power or network faults.
Designed for panel and cabinet installations, the TCSESM083F23F0 mounts easily on a standard 35 mm DIN rail and carries an IP20 enclosure rating for control-room environments. Its compact size and efficient 5.3 W power consumption make it suitable for dense automation racks without adding excessive heat or load.
MRO Electric offers this industrial switch with a 2-year warranty, expert technical support, and fast fulfillment. Whether deploying a new network segment or upgrading legacy Ethernet infrastructure, the ConneXium TCSESM083F23F0 provides reliable, feature-rich performance for automation professionals and network engineers alike.
What is the Schneider TCSESM083F23F0 used for?
It’s an industrial managed Ethernet TCP/IP switch for automation and control networks.
How many ports does it have, and what type are they?
It has 8 copper RJ45 Ethernet ports supporting 10/100BASE-TX.
What management features are supported?
It supports VLAN, IGMP snooping, priority ports, data stream control, SNMP, and a web interface.
Does this switch support network redundancy?
Yes — HiPER ring, redundant single rings, and ring coupling for high availability.
What is the maximum distance between devices?
Up to 100 m over CAT 5E copper.
What power supply range does it accept?
9.6–60 V DC or 18–30 V AC SELV.
Can it be used in harsh environments?
Yes — industrial-rated with robust certifications and an IP20 enclosure.
What mounting options are available?
Standard 35 mm DIN rail mount.
Does it include fault alerting?
Yes, with a dry contact alarm output for power or network faults.
What warranty does MRO Electric offer?
A 2-year MRO Electric warranty.
