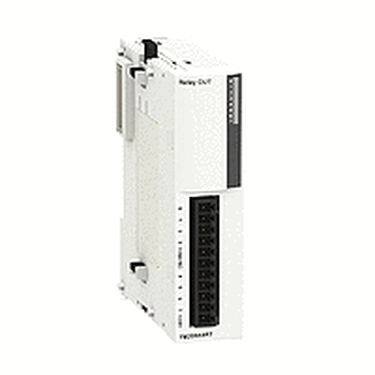

Discrete Output Module M238 - 8 Outputs Relay - 1 Removable Screw Terminal Block

Free Shipping
2 Year warranty


Part NumberTM2DRA8RT
ManufacturerSchneider Electric
SeriesModicon Magelis
Model #TM2DRA8RT
TypeIO Modules
Warranty2 Year
Product weight0.095 kg
Range of productModicon M238 logic controller
Product or component typeDiscrete output module
Discrete output number8
Discrete output typeRelay
Range compatibilityAdvantys OTB
Discrete output function1 NO
Current per channel2...5 A
Current per output common7 A
Number of common point2
Contact resistance<= 45 mOhm
Response time<= 10 ms from state 0 to state 1 input
<= 5 ms from state 1 to state 0 input
Minimum switching current0.1 mA 0.1 V DC
Isolation between channels1500 V for 1 minute
Isolation between channels and2300 V for 1 minute
Isolation between output channels1500 V for 1 minute
Mechanical durability20000000 cycles
Electrical durability100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive
100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive
100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms)
100000 cycles 2 A 240 V AC resistive
100000 cycles 2 A 30 V DC resistive
Current consumption30 mA 5 V DC at state 1 for all output
40 mA 24 V DC at state 1 for all output
Local signalling1 display block
Electrical connection1 removable screw terminal block
Mounting support35 mm symmetrical DIN rail

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TM2DRA8RT to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TM2DRA8RT we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TM2DRA8RT, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 5 hours and 37 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TM2DRA8RT for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The TM2DRA8RT is a Discrete Output Module M238 - 8 Outputs Relay - 1 ... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-magelis line come with a 2 year warranty from MRO Electric. We also carry PLC from other manufacturers such as Modicon and ABB.
