TSXAEZ414

2-year Warranty

Same Day Shipping

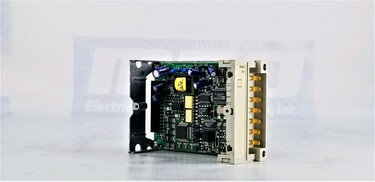

Schneider Electric TSXAEZ414

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Schneider Electric
DESCRIPTION: Tsx Micro - Thermocouples, Temperature Probes, High Level
PRODUCT TYPE INFO: Modicon Micro


5 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberTSXAEZ414
ManufacturerSchneider Electric
TypeI/O Modules
Model #TSX-AEZ-414
Warranty2 Year
Electromagnetic compatibilityElectrostatic discharge IEC 1000-4-2 level 3
Electromagnetic field immunity test IEC 1000-4-3 level 3
Resistance to fast transient IEC 1000-4-4 level 3
Immunity to impulse waves IEC 1000-4-5
Damped oscillatory wave IEC 1000-4-12
Immunity to electromagnetic interference IEC 61131-2
Range of productModicon TSX Micro automation platform
Product or component typeAnalog input module
Number of channels4
Analogue input typeTemperature probe
Thermocouple
High level
Analog/Digital conversion16 bits
Acquisition period520 ms
Temperature drift0.08 %/10 °C voltage circuit
0.01 %/10 °C current circuit
Input impedance10 Ohm
Current consumption85 mA
Isolation voltage500 V AC
Product weight0.21 kg
Sustainable offer statusNot Green Premium product
RoHS (date code: YYWW)Will not be compliant

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXAEZ414 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXAEZ414 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXAEZ414, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 7 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXAEZ414 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXAEZ414 Overview

Schneider Electric TSXAEZ414

The Schneider Electric TSXAEZ414 is a sophisticated Analog Input Module, belonging to the Modicon TSX Micro automation platform. As a product of Schneider Electric, a global leader in industrial automation, the TSXAEZ414 is designed to meet high standards of performance and reliability. This module plays a crucial role in the acquisition and processing of analog signals, providing precise measurement capabilities for temperature-related applications.

Key Features:

1. Electromagnetic Compatibility:

  • The TSXAEZ414 adheres to stringent electromagnetic compatibility standards, ensuring reliable operation in industrial environments. It meets criteria such as electrostatic discharge, electromagnetic field immunity, resistance to fast transient, immunity to impulse waves, damped oscillatory waves, and immunity to electromagnetic interference.

2. Analog Input Channels:

  • This Analog Input Module is equipped with four channels, allowing it to simultaneously handle multiple analog signals. The channels support various input types, including temperature probes and thermocouples.

3. Analog/Digital Conversion:

  • Featuring 16-bit analog-to-digital conversion, the TSXAEZ414 ensures high precision in converting analog signals into digital data. This high-resolution conversion is essential for accurate and reliable measurement.

4. Input Types:

  • The module supports a range of analog input types, including temperature probes and thermocouples. This versatility makes it suitable for applications where precise temperature measurements are crucial.

5. Acquisition Period:

  • With an acquisition period of 520 ms, the module captures and processes analog signals at a rapid pace. This quick response time is vital for applications that require real-time monitoring and control.

6. Temperature Drift:

  • The TSXAEZ414 demonstrates minimal temperature drift, with values of 0.08%/10 °C for the voltage circuit and 0.01%/10 °C for the current circuit. This stability ensures accurate measurements even in varying temperature conditions.

7. Input Impedance:

  • The module has a low input impedance of 10 Ohms, facilitating efficient signal processing and minimizing interference. This characteristic contributes to the reliability and accuracy of the analog input measurements.

8. Isolation Voltage:

  • With an isolation voltage of 500 V AC, the module provides electrical isolation to ensure the safety and integrity of the connected systems. This feature is crucial for preventing electrical interference and damage.

9. Current Consumption:

  • The TSXAEZ414 operates with a current consumption of 85 mA, contributing to energy efficiency and ensuring optimal performance within specified power requirements.

10. Sustainable Offer Status and RoHS Compliance:

  • The module does not fall under the Green Premium product category, indicating that it is not considered environmentally friendly. Additionally, it mentions that it will not be RoHS-compliant based on the specified date code.

Applications:

The TSXAEZ414 Analog Input Module finds applications in industrial automation scenarios where accurate temperature measurements are essential. Its versatility, high-resolution analog-to-digital conversion, and adherence to electromagnetic compatibility standards make it suitable for use in diverse industries, including manufacturing, process control, and environmental monitoring.

Frequently Asked Questions

1. What is the primary function of the TSXAEZ414 Analog Input Module?

  • The TSXAEZ414 is designed to acquire and process analog signals, specifically for temperature-related applications. It is part of the Modicon TSX Micro automation platform.

2. How many analog input channels does the TSXAEZ414 support?

  • The module is equipped with four analog input channels, allowing it to handle multiple analog signals simultaneously.

3. What types of analog inputs are supported by the TSXAEZ414?

  • The module supports various analog input types, including temperature probes, thermocouples, and high-level signals.

4. What is the resolution of the analog-to-digital conversion in the TSXAEZ414?

  • The module features 16-bit analog-to-digital conversion, ensuring high precision in converting analog signals into digital data.

5. What is the acquisition period of the TSXAEZ414?

  • The module has an acquisition period of 520 ms, providing rapid response time for capturing and processing analog signals.

6. Does the TSXAEZ414 have resistance to electromagnetic interference?

  • Yes, the module exhibits resistance to electromagnetic interference, adhering to IEC 61131-2 standards.

7. What is the input impedance of the TSXAEZ414?

  • The module has a low input impedance of 10 Ohms, facilitating efficient signal processing and minimizing interference.

8. In which applications can the TSXAEZ414 be used?

  • The module is suitable for a range of industrial applications where precise temperature measurements are essential. It finds use in manufacturing, process control, and environmental monitoring scenarios.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
