TSXCAY21

2-year Warranty

Same Day Shipping

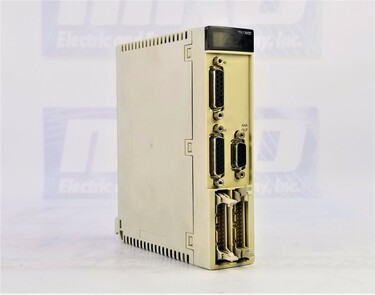

Schneider Electric TSXCAY21

MODICON PREMIUM MOTION CONTROL MODULES - FOR SERVOMOTORS - 8 MS..10 S - 2 AXIS
5/5
1 rating

4 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberTSXCAY21
ManufacturerSchneider Electric
TypeControllers
Model #TSX-CAY-21
Warranty2 Year
Current consumption200 mA 5 V DC
300 mA 24 V DC
Product or component typeMotion control modules
Product specific applicationFor servomotors
Servo loop typeProportional to overshoot compensation and gain switching 2 ms
ChecksPresence of voltage/sensor feedback counter input
Validity of parameters
Sensor power supply
Proper execution of movement
Encoder coupling, servo drive present, emergency stop
Consistency of commands
Speed profile pathTrapezoidal or parabolic
Resolution<= 1000 position units per point
>= 0.5 position units per point
Length of axis32000...32000000 P
Acquisition speed<= 270000 points/mn
>= 54000 points/mn
Acceleration time8 ms...10 s
Operating modeAutomatic
Direct drive mode
FOLLOWER
Manual
OFF
Type of axisLimited axis
Following axis static ratio
I/O modularity2 axes
Input compatibilityAbsolute encoder parallel output ABE7CPA11
With 2-wire/3-wire sensor (24 DC) auxiliary input
Incremental encoder 5 V DC RS422
Incremental encoder 10...30 V totem pole
Absolute encoder SSI output 16...25 bits
Clock frequency200 kHz SSI absolute encoder
Incremental encoder frequency x1500 kHz
Incremental encoder frequency x 4250 kHz in input
1000 kHz in counting
Power dissipation in W7.2...11.5 W
Input typeResistive servo drive control input conforming to EN/IEC 1131 Type 1
Resistive counter input
Current sink auxiliary input conforming to EN/IEC 1131 Type 2
Input logicPositive
Input voltage5 V 18 mA counter input
24 V 8 mA servo drive control input
24 V 8 mA auxiliary input
Input voltage limits19...30 V servo drive control input
19...30 V auxiliary input
<= 5.5 V counter input
Voltage state 1 guaranteed>= 2.4 V counter input
>= 11 V servo drive control input
>= 11 V auxiliary input
Current state 1 guaranteed> 6 mA auxiliary input
> 3.7 mA counter input
> 3.5 mA servo drive control input
Voltage state 0 guaranteed<= 5 V servo drive control input
<= 5 V auxiliary input
<= 1.2 V counter input
Current state 0 guaranteed< 2 mA auxiliary input
< 1.5 mA servo drive control input
< 1 mA counter input
Input impedance3000 Ohm servo drive control input
3000 Ohm auxiliary input
270 Ohm counter input
Number of outputs2 servo drive validation output relay
2 reflex output static conforming to EN/IEC 61131
2 analogue output static
Analogue output range+/- 10...24 V
Analogue output resolution13 bits + sign
LSB value1.25 mV analogue output
Output voltage24 V DC servo drive validation output
24 V DC reflex output
Output voltage limits5...30 V servo drive validation output
19...30 V reflex output
Nominal output current0.5 A reflex output
Maximum output current625 mA reflex output
200 mA servo drive validation output
1.5 mA analogue output
Minimum load1 mA 1 V
Voltage drop< 1 V at state on reflex output
Leakage current< 0.3 mA reflex output
Switching time< 500 µs for reflex output
< 5 ms for servo drive validation
Output compatibilityPositive logic DC inputs (resistance <= 15 kOhm) reflex
Short-circuit protectionThermal tripping reflex output
Current limiter reflex output
Output overload protectionThermal tripping reflex output
Current limiter reflex output
Output overvoltage protectionZener diode between outputs and 24 DC reflex output
Reverse polarity protectionReverse diode on supply reflex output
Local signalling2 LED green axis diagnostics available
1 LED red internal fault, module failure (ERR)
1 LED red external fault (I/O)
1 LED green module operating (RUN)
Electrical connection2 connectors SUB-D 15 for an incremental or absolute encoder
1 connector SUB-D 9 for an analogue output (speed reference)
1 connector HE-10 20 pins for servo drive ctrl inputs + for ext power supply of servo drive inputs/outputs
1 connector HE-10 20 pins for aux inputs, reflex output, for external sensor and preactuator power supply
Current consumption15 mA 24 V DC
1100 mA 5 V DC
11...20 mA 24 V DC on 10/30 V absolute encoder module

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXCAY21 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXCAY21 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXCAY21, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 6 hours and 4 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXCAY21 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXCAY21 Overview

The TSXCAY21 is a motion control module manufactured by Schneider Electric. It is designed for use with servomotors and serves as a controller for precise motion control applications. The module comes with a warranty period of 2 years, ensuring its reliability and performance. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Controllers from other manufacturers such as Modicon and ABB.

Rating

In terms of power requirements, the TSXCAY21 has a current consumption of 200 mA at 5 V DC and 300 mA at 24 V DC. This ensures efficient power usage and compatibility with various power sources.

Control

As a motion control module, the TSXCAY21 is responsible for controlling and monitoring servomotor movements. It incorporates a servo loop that utilizes proportional overshoot compensation and gains switching with a response time of 2 ms. This allows for accurate and precise control over the servomotors.

Function

To ensure the proper functioning of the system, the TSXCAY21 performs various checks. These include checking the presence of voltage and sensor feedback, counting input signals, validating parameters, verifying the sensor power supply, executing movements correctly, checking encoder coupling, servo drive presence, and emergency stop functionality. These checks guarantee the reliability and safety of the motion control system.

Profiles

The TSXCAY21 supports different speed profile paths, including trapezoidal and parabolic profiles. It also offers flexibility in terms of resolution, supporting position units per point of up to 1000 or greater than 0.5. This allows for precise control over the motion trajectory.

The module supports limited axis types and can be used as a follower or in automatic, direct drive, or manual operating modes. It also offers I/O modularity for up to 2 axes, providing flexibility in system configuration.

Compatibility

In terms of input compatibility, the TSXCAY21 supports various types of encoders, including absolute encoders with parallel output, 2-wire/3-wire sensors with 24 DC auxiliary inputs, and incremental encoders with different voltage specifications. This wide compatibility enables integration with a range of encoders commonly used in motion control applications.

Outputs

The TSXCAY21 provides outputs for servo drive validation, reflex outputs, and analog outputs. These outputs offer flexibility for system integration and control. The module supports different voltage ranges, resolutions, and current limits to accommodate various application requirements.

Safety

For protection and safety, the TSXCAY21 includes features such as short-circuit protection, thermal tripping and reverse polarity protection. These features safeguard the module and connected devices from potential damage due to faults or incorrect connections.

Indicators

The module includes LED indicators for diagnostics, internal and external fault indications, and operational status. These indicators assist in troubleshooting and monitoring the module's performance.

Connection

In terms of electrical connections, the TSXCAY21 utilizes various connectors, including SUB-D 15 for incremental or absolute encoders, SUB-D 9 for analog output, and HE-10 20-pin connectors for servo drive control inputs, auxiliary inputs, reflex outputs, and power supplies. These connectors provide a reliable and secure interface for connecting the module to other components in the motion control system.

Overall, the TSXCAY21 from Schneider Electric is a versatile motion control module that offers precise control, compatibility with various encoders, and a range of input and output options. Its robust design, reliability, and comprehensive set of features make it suitable for a wide range of motion control applications.
