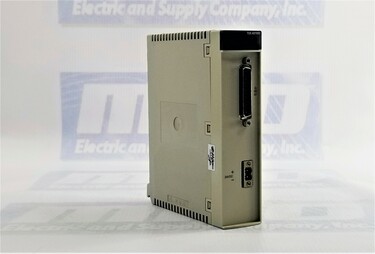

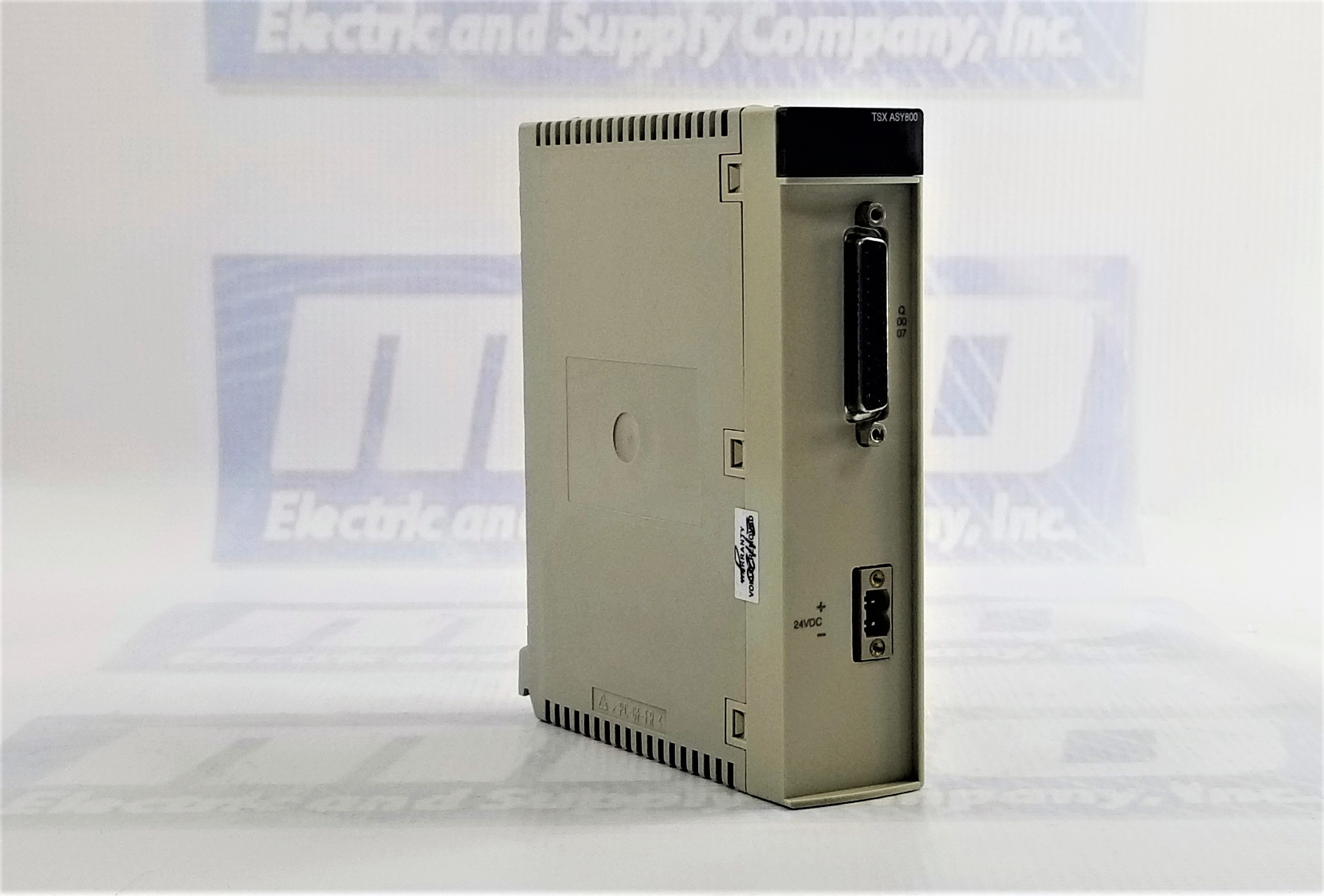

TSXASY800

TSXASY800

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: Analog Output Module - 8 O Multirange

PRODUCT TYPE INFO: Modicon Premium

2 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

Part NumberTSXASY800
ManufacturerSchneider Electric
SeriesModicon Premium
Model #TSXASY800
Alternate ModelTSX-ASY-800
TypeIO Modules
Warranty2 Year
Module formatStandard
Product or component typeAnalog output module
Analogue output number8
Analogue output typeCurrent 0...20 mA
Current 4...20 mA
Voltage +/- 10 V
Analog/Digital conversion13 bits 0...20 mA
13 bits 4...20 mA
13 bits + sign +/- 10 V
Conversion time5 ms
Measurement resolution1.28 mV +/- 10 V
2.56 µA 0...20 mA
2.56 µA 4...20 mA
Electrical connection1 SUB-D 25 connector
Measurement error0.14 % of full scale +/- 10 V 25 °C
0.21 % of full scale 0...20 mA 25 °C
0.21 % of full scale 4...20 mA 25 °C
0.28 % of full scale +/- 10 V 0...60 °C
0.52 % of full scale 0...20 mA 0...60 °C
0.52 % of full scale 4...20 mA 0...60 °C
Isolation between channelsCommon point
Isolation between channels and bus1000 Vrms
Isolation between channels and ground1000 Vrms
Protection typeOverload protection
Short-circuit protection
Output voltage limits<= 30 V
Load impedance ohmic< 600 Ohm 0...20 mA
< 600 Ohm 4...20 mA
> 1000 Ohm +/- 10 V
Load inductance< 300 µH
Load capacitance< 0.1 µF
MarkingCE

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXASY800 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXASY800 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXASY800, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 2 hours and 1 minute.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXASY800 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Schneider Electric TSXASY800 Overview

The Modicon Premium analog output module TSXASY800 is an X80 module manufactured by Schneider Electric for use on the EcoStruxure Control Expert platform. The module is constructed with eight analog outputs – not isolated from one another. The TSXASY800 is a module designed for use in a rack-installation.

Featured components and functions of the Modicon TSXASY800 X80 processor

Connection to process is the component on the TSXASY800 is the hardware connection to the process done through a 25-pin Sub-D connector. The function of the connection is to protect the unit from a spike in voltage.

Adaptation to Various Actuators is the multiplexer, and the function of the multiplexer is for voltage or current usage.

Converting Digital Data to Analog Signals is the next component area, and the function is for both voltage and current. For voltage function, the conversion is performed on 13 bits + polarity sign. For the current function, conversion is performed on 13 bits.

The Interfacing and communications with the application component function are to manage exchanges with the PCU, geographic addressing, receiving configuration parameters from the application for the module, Channels, and numeric setpoints from the channels.

The Modicon TSXASY800 has a Power supply component and a module for monitoring and sending error warnings to the application. The monitoring component handles converter testing and testing for range overflow on the various channels. This component verifies that the terminal block is present and performs watchdog tests.

The TSXASY800 X80 processor also has an external 24 V power supply to the outputs.

What is the max possible delay between transmission of the output valve on the PLC bus and the positioning on the terminal block? The maximum permissible delay time is 5 ms.

What happens when there is a fault in the external power supply to the outputs? If the TSXASY800 X80 processor experiences an external power supply fault, the module switches to 0 (zero). In the case of both a power supply fault and a wiring terminal fault, the only failure reported is the power supply fault.

Standard formatting is the appropriate writing for the application to provide output values. What is the standard format for the TSXASY800 X80 processor?

• -10000 to +10000 for the +/-10 V range,

• 0 to +10000 in ranges 0 to 20 mA, and 4 to 20 mA.

The values need to be written with the words %QWr.m.c.0 to 7 for channels 0 to 7 of the module.

The Fallback/ Maintenance output position for errors is forced to 0 (zero) (0 V or 0 mA). They can do this individually or at the same time. When there is a task in STOP mode, a program is missing, or a communication error, the output will go into Fallback/ Maintenance mode. If there is a configuration error or the module is experiencing an internal error, the voltage output goes to 0 V – channel per channel. If there is an underflow or an overflow in output voltage, the value transmits with saturation at +/- 10.5 V – channel per channel. If there is a terminal block fault, all channels maintain value – channel per channel.

The Modicon X80 processor module TSXASY800 by Schneider Electric comes with a two-year warranty.

Product Description

The TSXASY800 is a Analog Output Module- 8 O Multirange that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-premium line come with a 2 year warranty from MRO Electric. We also carry TSX from other manufacturers such as Modicon and ABB.
