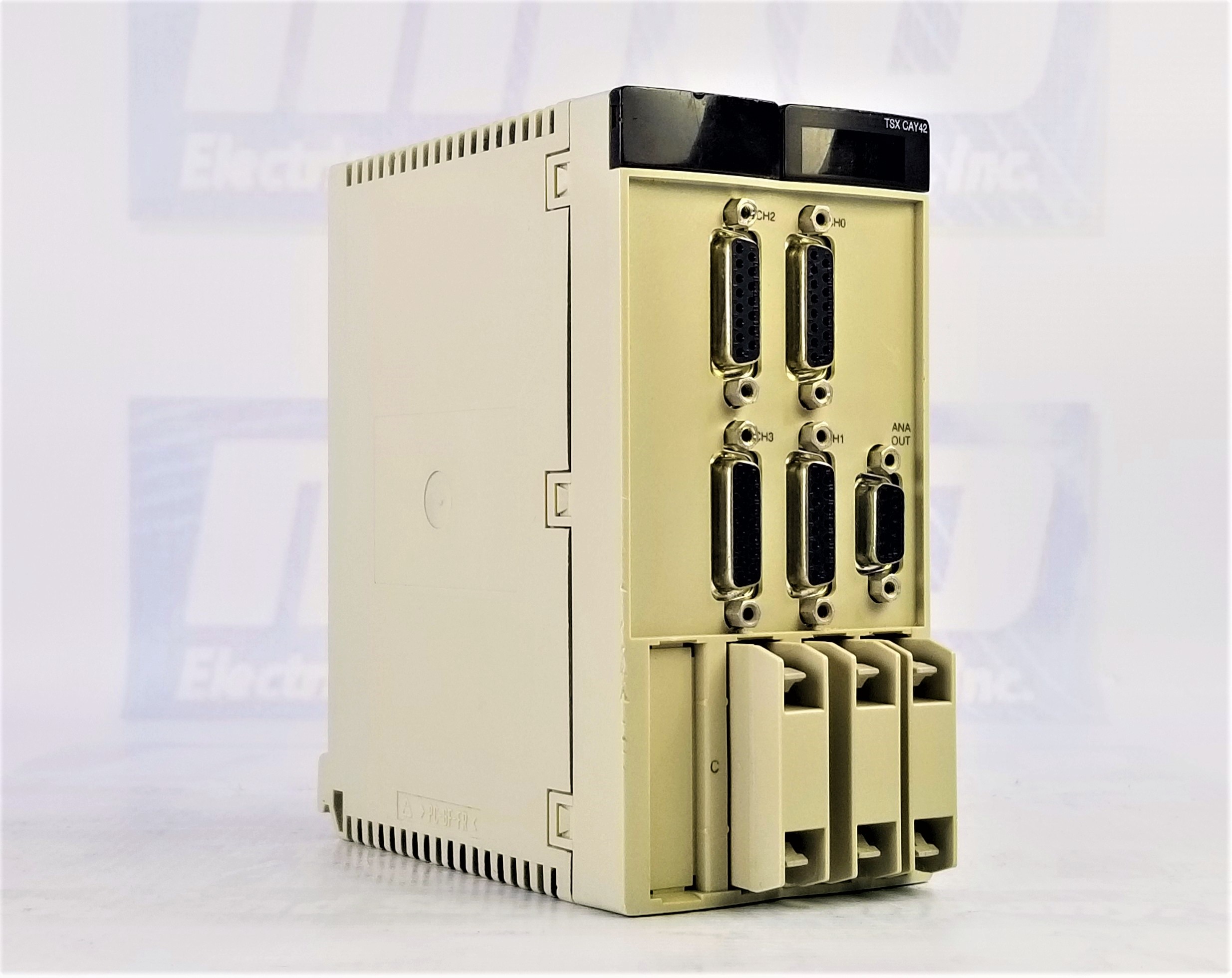

TSXCAY42

TSXCAY42

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Schneider Electric
DESCRIPTION: Motion Control Modules - For Servomotors - 8 Ms..10 S - 4 Axis
PRODUCT TYPE INFO: Modicon Premium


1 in stock

Free Shipping
2 Year warranty

Categories

Part NumberTSXCAY42
ManufacturerSchneider Electric
SeriesModicon Premium
Model #TSXCAY42
Alternate ModelTSX-CAY-42
TypeControllers
Warranty2 Year
Module formatDouble
Product or component typeMotion control modules
Product specific applicationFor servo motors
Servo loop typeProportional to overshoot compensation and gain switching 4 ms
ChecksConsistency of commands
Encoder coupling, servo drive present, emergency stop
Proper execution of movement
Sensor power supply
Validity of parameters
Presence of voltage/sensor feedback counter input
Speed profile pathTrapezoidal or parabolic
Resolution<= 1000 position units per point
>= 0.5 position units per point
Length of axis256...32000000 P
Acquisition speed>= 54000 points/mn
<= 270000 points/mn
Acceleration time8 ms...10 s
Operating modeManual
Direct drive mode
Automatic
FOLLOWER
OFF
Type of axisFollowing axis dynamic ratio
Infinite axis
Limited axis
Function of moduleServo drive offset correction
I/O modularity4 axes
Input compatibilityAbsolute encoder SSI output 12...25 bits
Incremental encoder 10...30 V totem pole
Incremental encoder 5 V DC RS422
With 2-wire/3-wire sensor (24 DC) auxiliary input
Absolute encoder parallel output ABE7CPA11
Clock frequency200 kHz SSI absolute encoder
Incremental encoder frequency x1500 kHz
Incremental encoder frequency x 41000 kHz in counting
250 kHz in input
Power dissipation in W10...17 W
Input typeCurrent sink auxiliary input conforming to EN/IEC 1131 Type 2
Resistive counter input
Resistive servo drive control input conforming to EN/IEC 1131 Type 1
Input logicPositive
Input voltage24 V 8 mA auxiliary input
24 V 8 mA servo drive control input
5 V 18 mA counter input
Input voltage limits<= 5.5 V counter input
19...30 V auxiliary input
19...30 V servo drive control input
Voltage state 1 guaranteed>= 11 V auxiliary input
>= 11 V servo drive control input
>= 2.4 V counter input
Current state 1 guaranteed> 3.5 mA servo drive control input
> 3.7 mA counter input
> 6 mA auxiliary input
Voltage state 0 guaranteed<= 1.2 V counter input
<= 5 V auxiliary input
<= 5 V servo drive control input
Current state 0 guaranteed< 1 mA counter input
< 1.5 mA auxiliary input
< 1.5 mA servo drive control input
Input impedance270 Ohm counter input
3000 Ohm auxiliary input
3000 Ohm servo drive control input
Number of outputs4 analogue output static
4 reflex output static conforming to EN/IEC 61131
4 servo drive validation output relay
Analogue output range+/- 10...24 V
Analogue output resolution13 bits + sign
LSB value1.25 mV analogue output
Output voltage24 V DC reflex output
24 V DC servo drive validation
Output voltage limits19...30 V reflex output
5...30 V servo drive validation
Nominal output current0.5 A reflex output
Maximum output current1.5 mA analogue output
200 mA servo drive validation output
625 mA reflex output
Minimum load1 mA 1 V
Voltage drop< 1 V at state on reflex output
Leakage current< 0.3 mA reflex output
Switching time< 5 ms for servo drive validation
< 500 µs for reflex output
Output compatibilityPositive logic DC inputs (resistance <= 15 kOhm) reflex
Short-circuit protectionCurrent limiter reflex output
Thermal tripping reflex output
Output overload protectionCurrent limiter reflex output
Thermal tripping reflex output
Output overvoltage protectionZener diode between outputs and 24 DC reflex output
Reverse polarity protectionReverse diode on supply reflex output
Local signalling4 LEDs green axis diagnostics available
1 LED green module operating (RUN)
1 LED red external fault (I/O)
1 LED red internal fault, module failure (ERR)
Electrical connection1 connector HE-10 20 pins for servo drive ctrl inputs + for ext power supply of servo drive inputs/outputs
1 connector SUB-D 9 for an analogue output (speed reference)
3 connectors HE-10 20 pins for aux inputs, reflex output, for external sensor and preactuator power supply
4 connectors SUB-D 15 for an incremental or absolute encoder
Current consumption1500 mA 5 V DC
30 mA 24 V DC
22...40 mA 24 V DC on 10/30 V absolute encoder module

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXCAY42 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXCAY42 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXCAY42, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 3lbs

Want it shipped tomorrow?

  • Order within the next 18 hours and 18 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXCAY42 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The TSXCAY42 is a Motion Control Modules - For Servomotors - 8 Ms..... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-premium line come with a 2 year warranty from MRO Electric. We also carry TSX from other manufacturers such as Modicon and ABB.
