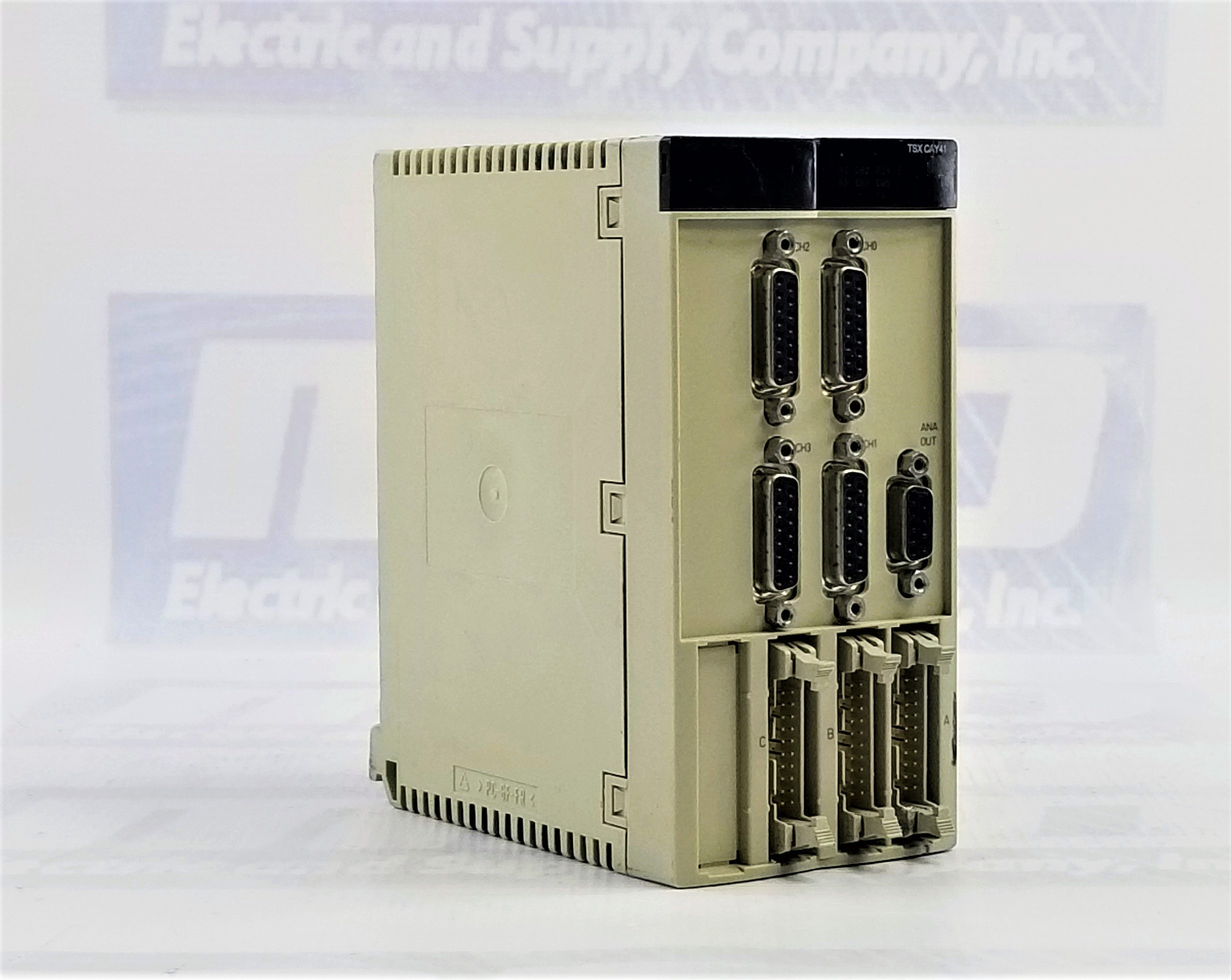

MANUFACTURER: Schneider Electric
DESCRIPTION: Motion Control Modules- For Servomotors - 8 Ms..10 S - 4 Axis
PRODUCT TYPE INFO: Modicon premium
1 in stock
Ships Today
Free Shipping
2 Year warranty
| Part Number | TSXCAY41 |
| Manufacturer | Schneider Electric |
| Type | Controllers |
| Model # | TSX-CAY-41 |
| Warranty | 2 Year |
| Module format | Double |
| Product or component type | Motion control modules |
| Product specific application | For servomotors |
| Servo loop type | Proportional to overshoot compensation and gain switching 4 ms |
| I/O modularity | 4 axes |
| Input compatibility | Absolute encoder parallel output ABE7CPA11 |
| Absolute encoder SSI output 16...25 bits | |
| Incremental encoder 5 V DC RS422 | |
| Incremental encoder 10...30 V totem pole | |
| With 2-wire/3-wire sensor (24 DC) auxiliary input | |
| Clock frequency | 200 kHz SSI absolute encoder |
| Incremental encoder | 500 kHz frequency x1 |
| Checks | Consistency of commands |
| Encoder coupling, servo drive present, emergency | Encoder coupling, servo drive present, emergency stop |
| Presence of voltage/sensor feedback counter input | |
| Proper execution of movement | |
| Sensor power supply | |
| Validity of parameters | |
| Speed profile path | Trapezoidal or parabolic |
| Resolution | <= 1000 position units per point |
| >= 0.5 position units per point | |
| Length of axis | 32000...32000000 P |
| Acquisition speed | <= 270000 points/mn |
| >= 54000 points/mn | |
| Acceleration time | 8 ms...10 s |
| Operating mode | FOLLOWER |
| OFF | |
| Automatic | |
| Direct drive mode |
| Manual | |
| Type of axis | Following axis static ratio |
| Limited axis | |
| Incremental encoder frequency x 4 | 250 kHz in input |
| 1000 kHz in counting | |
| Power dissipation in W | 10...17 W |
| Input type | Current sink auxiliary input EN/IEC 1131 Type 2 |
| Resistive counter input | |
| Resistive servo drive control input EN/IEC 1131 Type 1 | |
| Input logic | Positive |
| Input voltage | 5 V 18 mA counter input |
| 24 V 8 mA servo drive control input | |
| 24 V 8 mA auxiliary input | |
| Input voltage limits | 19...30 V servo drive control input |
| 19...30 V auxiliary input | |
| <= 5.5 V counter input | |
| Voltage state 1 guaranteed | ≥ 11 V servo drive control input |
| ≥ 11 V auxiliary input | |
| ≥ 2.4 V counter input | |
| Current state 1 guaranteed | > 3.5 mA servo drive control input |
| > 3.7 mA counter input | |
| > 6 mA auxiliary input | |
| Voltage state 0 guaranteed | ≤ 1.2 V counter input |
| ≤ 5 V auxiliary input | |
| ≤ 5 V servo drive control input | |
| Current state 0 guaranteed | < 1.5 mA servo drive control input |
| < 1 mA counter input | |
| < 2 mA auxiliary input | |
| Input impedance | 270 Ohm counter input |
| 3000 Ohm servo drive control input | |
| 3000 Ohm auxiliary input | |
| Number of outputs | 4 analogue output static |
| 4 servo drive validation output relay | |
| 4 reflex output static EN/IEC 61131 |
| Analogue output range | +/- 10...24 V |
| Analogue output resolution | 13 bits + sign |
| LSB value | 1.25 mV analogue output |
| Output voltage | 24 V DC servo drive validation output |
| 24 V DC reflex output | |
| Output voltage limits | 5...30 V servo drive validation output |
| 19...30 V reflex output | |
| Nominal output current | 0.5 A reflex output |
| Maximum output current | 1.5 mA analogue output |
| 200 mA servo drive validation output | |
| 625 mA reflex output | |
| Minimum load | 1 mA 1 V |
| Voltage drop | < 1 V at state on reflex output |
| Leakage current | < 0.3 mA reflex output |
| Switching time | < 500 µs for reflex output |
| < 5 ms for servo drive validation | |
| Output compatibility | Positive logic DC inputs (resistance <= 15 kOhm) reflex |
| Short-circuit protection | Current limiter reflex output |
| Thermal tripping reflex output | |
| Output overload protection | Current limiter reflex output |
| Thermal tripping reflex output | |
| Output overvoltage protection | Zener diode between outputs and 24 DC reflex output |
| Reverse polarity protection | Reverse diode on supply reflex output |
| Local signalling | 1 LED red external fault (I/O) |
| 1 LED green module operating (RUN) | |
| 1 LED red internal fault, module failure (ERR) | |
| 4 LED green axis diagnostics available | |
| Electrical connection | 1 connector HE-10 20 pins for servo drive ctrl inputs + for ext power supply of servo drive inputs/outputs |
| 1 connector SUB-D 9 for an analogue output (speed reference) | |
| 3 connectors HE-10 20 pins for aux inputs, reflex output, for external sensor and preactuator power supply | |
| 4 connectors SUB-D 15 for an incremental or absolute encoder | |
| Current consumption | 22...40 mA 24 V DC on 10/30 V absolute encoder module |
| 30 mA 24 V DC | |
| 1500 mA 5 V DC |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXCAY41 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXCAY41 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXCAY41, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TSXCAY41 for credit when ordering from MRO Electric
The Schneider Electric TSXCAY41 is a motion control module that exemplifies precision and versatility in industrial automation. Designed for servomotors, this module redefines motion control standards with its advanced features and comprehensive functionality.
The TSXCAY41 module is a double-format module that serves as a motion control powerhouse. With its ability to control up to 4 axes and support various encoders, including absolute and incremental encoders, this module offers unparalleled flexibility and precision in motion control applications.
Explicitly designed for servomotors, the TSXCAY41 module optimizes motor performance with its proportional servo loop and overshoot compensation capabilities. With a servo loop type of 4 ms, operators can precisely control motor movements, ensuring smooth and accurate operation.
The TSXCAY41 module supports 4 axes and is compatible with a wide range of input devices, including absolute encoders, incremental encoders, and 2-wire/3-wire sensors. This allows for seamless integration with existing control systems and peripherals, enhancing overall system functionality.
The TSXCAY41 module incorporates advanced checks and diagnostics to ensure the proper execution of movements and the validity of parameters. From command consistency checks to encoder coupling and servo drive validation, this module provides operators with real-time feedback and diagnostics for enhanced performance and reliability.
Operators can choose between trapezoidal or parabolic speed profile paths, allowing for flexible control over motor acceleration and deceleration. This versatility enables operators to adapt motion control parameters to suit specific application requirements, optimizing performance and efficiency.
Built to withstand the rigors of industrial environments, the TSXCAY41 module features a rugged design that ensures reliable operation in harsh conditions. From its high-speed
Q: What is the Schneider Electric TSXCAY41 Motion Control Module?
A: The Schneider Electric TSXCAY41 is a motion control module designed to optimize the performance of servomotors in industrial automation applications. It offers advanced features and comprehensive functionality to ensure precise motor movement control.
Q: What types of servomotors is the TSXCAY41 module compatible with?
A: The TSXCAY41 module is specifically designed for servomotors and is compatible with various servomotor configurations, offering flexibility and versatility in motion control applications.
Q: What are the key features of the TSXCAY41 module?
A: The TSXCAY41 module offers advanced motion control technology, including a proportional servo loop with overshoot compensation, support for multiple axis control, comprehensive I/O modularity, flexible speed profile paths, robust design for industrial environments, intuitive electrical connections, enhanced safety and signaling features.
Q: How does the TSXCAY41 module enhance motion control performance?
A: The TSXCAY41 module optimizes motion control performance by precisely controlling motor movements, ensuring smooth and accurate operation. Its advanced features, such as checks and diagnostics, flexible speed profile paths, and compatibility with various input devices, contribute to improved efficiency and performance in industrial automation applications.
Q: What applications is the TSXCAY41 module suitable for?
A: The TSXCAY41 module is suitable for various motion control applications in industrial automation, including robotics, CNC machining, material handling, etc. Its versatility and advanced features make it ideal for optimizing performance and efficiency in various industrial processes.
Q: Is the TSXCAY41 module easy to install and maintain?
A: The TSXCAY41 module features intuitive electrical connections and is designed for easy installation and maintenance. Its rugged design ensures reliable operation in harsh industrial environments, while LED indicators provide enhanced safety and signaling capabilities for monitoring system status and diagnosing issues promptly.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Controllers from other manufacturers such as Modicon and ABB.
