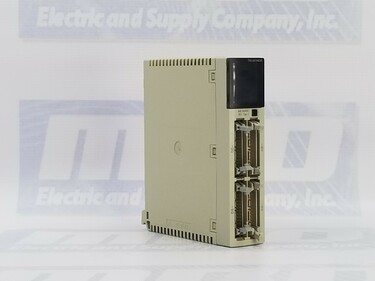

TSXDEY64D2K

Schneider Electric TSXDEY64D2K

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: SCHNEIDER ELECTRIC

DESCRIPTION: Discrete Input Module - 64 I 24 V DC

PRODUCT TYPE INFO: Modicon Premium

6 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberTSXDEY64D2K
ManufacturerSchneider Electric
TypeBases
Model #TSX-DEY-64D2K
Warranty2 Year
Module formatStandard
Product or component typeDiscrete input module
Discrete input number64 current sink isolated EN/IEC 61131-2 type 1
Discrete input voltage24 V DC positive
Electrical connectionHE-10 connector
Protective treatmentTC
Sensor power supply19...30 V
Discrete input current3.5 mA
Voltage state1 guaranteed≥ 11 V
Current state 1 guaranteed≥ 3 mA
Voltage state 0 guaranteed≤ 5 V
Current state 0 guaranteed≤ 1.5 mA
Input impedance6300 Ohm at state 1
Response time4 ms
<= 7 ms
Insulation resistance< 10 MOhm 500 V DC
Power dissipation(1.5 W + 0.1 W x No of channels used)
MarkingCE
Current consumption155 mA 5 V DC
315 mA 24 V DC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXDEY64D2K to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXDEY64D2K we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXDEY64D2K, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 4 hours and 58 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXDEY64D2K for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXDEY64D2K Overview

The TSXDEY64D2K is a digital output module from the Telemecanique brand of Schneider Electric. This module is part of the Modicon Premium automation platform, which is designed for high-performance applications in complex industrial environments. The TSXDEY64D2K module has 64 outputs that can be used to control various types of devices, such as valves, motors, and alarms. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Bases from other manufacturers such as Modicon and ABB.

Features

One of the key features of this module is its high-density design, which allows it to pack 64 digital outputs into a single module. This compact form factor helps save valuable rack space in automation cabinets, which is especially useful in applications where space is limited. The module uses a 40-pin connector for easy installation and wiring.

Outputs

The digital outputs on the TSXDEY64D2K module can sink current up to a maximum of 500 mA per channel. The outputs are designed to be short-circuit protected, which helps prevent damage to the module in case of a fault. The module also features an LED status indicator for each channel, which helps operators quickly diagnose problems and identify which outputs are active.

Design

The TSXDEY64D2K module is designed to operate in a wide temperature range, from -25°C to +70°C, making it suitable for use in harsh industrial environments. The module has a maximum operating voltage of 24 VDC and a minimum switching voltage of 5 VDC. The module also features a high isolation voltage of 1500 V between the output channels and the module's internal circuitry, ensuring reliable and safe operation.

Compatibility

The TSXDEY64D2K module is compatible with a range of programming languages, including Ladder Logic, Function Block Diagram (FBD), Structured Text (ST), and Instruction List (IL). The module is also compatible with various software packages, such as Unity Pro, Concept, and ProWORX. This compatibility allows the module to be integrated into a wide range of automation systems and programming environments.

Troubleshooting

In terms of diagnostics and troubleshooting, the TSXDEY64D2K module has several built-in features. The module features a diagnostic LED that indicates the module's status, such as power on, communication error, or module fault. The module also has a built-in self-test function that checks the module's internal circuitry and output channels for faults. The self-test can be initiated manually or automatically, and the results are displayed on the module's LED display.

Standards

The TSXDEY64D2K module is designed to meet various international standards for safety and performance, including UL, CSA, CE, and RoHS. This ensures that the module is suitable for use in various industrial environments and is compliant with local regulations.

In summary, the TSXDEY64D2K is a high-density digital output module designed for use in complex industrial automation applications. Its compact form factor, high-density design, and built-in diagnostics make it an excellent choice for space-limited applications that require reliable and safe operation. The module's compatibility with various programming languages and software packages also makes it a versatile choice for integrating into a wide range of automation systems.
