TSXDEY32D2K

2-year Warranty

Same Day Shipping

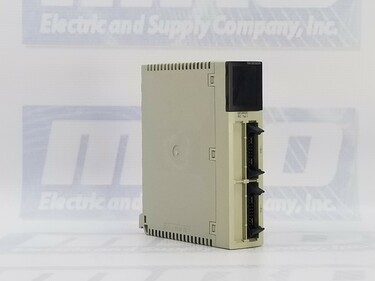

Schneider Electric TSXDEY32D2K

MODICON PREMIUM DISCRETE INPUT MODULE- 32 I 24 V DC

5/5
2 ratings

Select Condition

Refurbished

29 in stock

New

7 in stock

$497.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberTSXDEY32D2K
ManufacturerSchneider Electric
TypeI/O Modules
Model #TSX-DEY-32D2K
Warranty2 Year
Module formatStandard
Product or component typeDiscrete input module
Discrete input number32 current sink isolated EN/IEC 61131-2 type 1
Discrete input voltage24 V DC positive
Electrical connectionHE-10 connector
Protective treatmentTC
Sensor power supply19...30 V
Discrete input current3.5 mA
Voltage state1 guaranteed≥ 11 V
Current state 1 guaranteed≥ 3 mA
Voltage state 0 guaranteed≤ 5 V
Current state 0 guaranteed≤ 1.5 mA
Input impedance6300 Ohm at state 1
Response time4 ms
<= 7 ms
Insulation resistance< 10 MOhm 500 V DC
Power dissipation(1 W + 0.1 W x No of channels used)
MarkingCE
Current consumption135 mA 5 V DC
160 mA 24 V DC
