TSXP57104M

2-year Warranty

Same Day Shipping

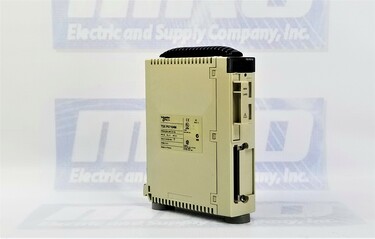

Schneider Electric TSXP57104M

MODICON PREMIUM UNITY PROCESSOR - 2 RACKS (12 SLOTS) / 4 RACKS (4/6/8 SLOTS) 850 MA, 5 V DC
5/5
3 ratings

Select Condition

Refurbished

Request Quote

New

2 in stock

$1,363.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberTSXP57104M
ManufacturerSchneider Electric
TypeCPUs
Model #TSX-P57-104M
Warranty2 Year
Module formatStandard
Product or component typeUnity processor
Number of racks2 12 slots
4 4/6/8 slots
Discrete I/O processor capacity512 I/O
Analogue I/O processor capacity24 I/O
Number of application specific channel≤ 8
Integrated connection typeSerial link 2 female mini DIN RS485 19.2 kbit/s
Memory descriptionPCMCIA card 256 kB additional data storage
Internal RAM (with PCMCIA card) 224 kB program
Internal RAM (with PCMCIA card) 96 kB data
Internal RAM (without PCMCIA card) 96 kB program and data
Software designationUnity Pro
Protective treatmentTC
Number of slots≤ 32
Maximum size of object areas32 kB (elementary and derived data) unlocated internal data
64 %KWi constant words located internal data
64 %MWi internal words located internal data
64 kB (DFB and EFB function blocks) unlocated internal data
4096 %Mi located internal bits
Application structure1 fast task
1 master task
32 event tasks
Execution time per instruction0.19 µs Boolean without PCMCIA card
0.25 µs word or fixed-point arithmetic without PCMCIA card
0.25 µs Boolean with PCMCIA card
0.5 µs word or fixed-point arithmetic with PCMCIA card
1.75...2.6 µs floating points without PCMCIA card
1.75...2.6 µs floating points with PCMCIA card
Number of instructions per ms2.1 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card
3.1 Kinst/ms 100 % Boolean with PCMCIA card
3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card
4.76 Kinst/ms 100 % Boolean without PCMCIA card
System overhead0.3 ms fast task
1 ms master task
MarkingCE
Local signalling1 LED green processor running (RUN)
1 LED red processor or system fault (ERR)
1 LED red I/O module or configuration fault (I/O)
1 LED yellow activity on TER or AUX terminal port (TER)
Current consumption850 mA 5 V DC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXP57104M to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXP57104M we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXP57104M, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 14 hours and 48 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXP57104M for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXP57104M Overview

Schneider Electric TSXP57104M

The Schneider Electric Part Number TSXP57104M is a Unity processor designed for industrial control applications. Manufactured by Schneider Electric, this CPU falls under the category of CPUs and boasts a two-year warranty.

Overview

The TSXP57104M is a standard module format Unity processor with specifications suitable for various applications. It supports up to 12 slots for racks, with options for 2 racks of 12 slots or 4/6/8 slots. The processor's capabilities include a discrete I/O processor capacity of 512 I/O and an analog I/O processor capacity of 24 I/O. Additionally, it accommodates a maximum of eight application-specific channels.

Connectivity

For connectivity, the processor is equipped with a serial link featuring 2 female mini-DIN RS485 connectors with a speed of 19.2 kbit/s. This facilitates efficient data transfer in industrial automation environments. The integrated connection type ensures reliable communication and compatibility with other devices.

Memory

The TSXP57104M comes with a PCMCIA card providing 256 kB of additional data storage. The internal RAM, with the PCMCIA card, consists of 224 kB for programs and 96 kB for data. Without the PCMCIA card, the internal RAM is 96 kB for both program and data storage. This memory configuration enables efficient data handling and storage within the processor.

Software

The processor operates with the Unity Pro software designation, offering a comprehensive programming environment for control applications. Unity Pro is known for its user-friendly interface and powerful features, making it suitable for diverse automation tasks.

Application Structure

The TSXP57104M supports a structured application with 1 fast task, 1 master task, and up to 32 event tasks. This allows for flexibility in programming and executing various tasks within the industrial control system.

Performance

In terms of execution time, the processor demonstrates efficiency, with timings ranging from 0.19 µs for Boolean operations without a PCMCIA card to 2.6 µs for floating-point arithmetic with a PCMCIA card. The number of instructions per millisecond varies depending on the type of operation, with the processor handling up to 4.76 Kinst/ms for 100% Boolean without a PCMCIA card.

System Overhead

The system overhead is minimal, with a fast task requiring 0.3 ms and a master task needing 1 ms. This ensures that the processor efficiently executes tasks with low latency, contributing to the overall responsiveness of the industrial control system.

Marking and Signalling

The TSXP57104M is marked with a CE certification, indicating compliance with European safety standards. The local signaling system includes LEDs for a processor running (green), processor or system fault (red), I/O module or configuration fault (red), and activity on the TER or AUX terminal port (yellow).

Power Consumption

The processor's current consumption is 850 mA at 5 V DC, making it an energy-efficient component for industrial applications.
