TSXP572823M

2-year Warranty

Same Day Shipping

Schneider Electric TSXP572823M

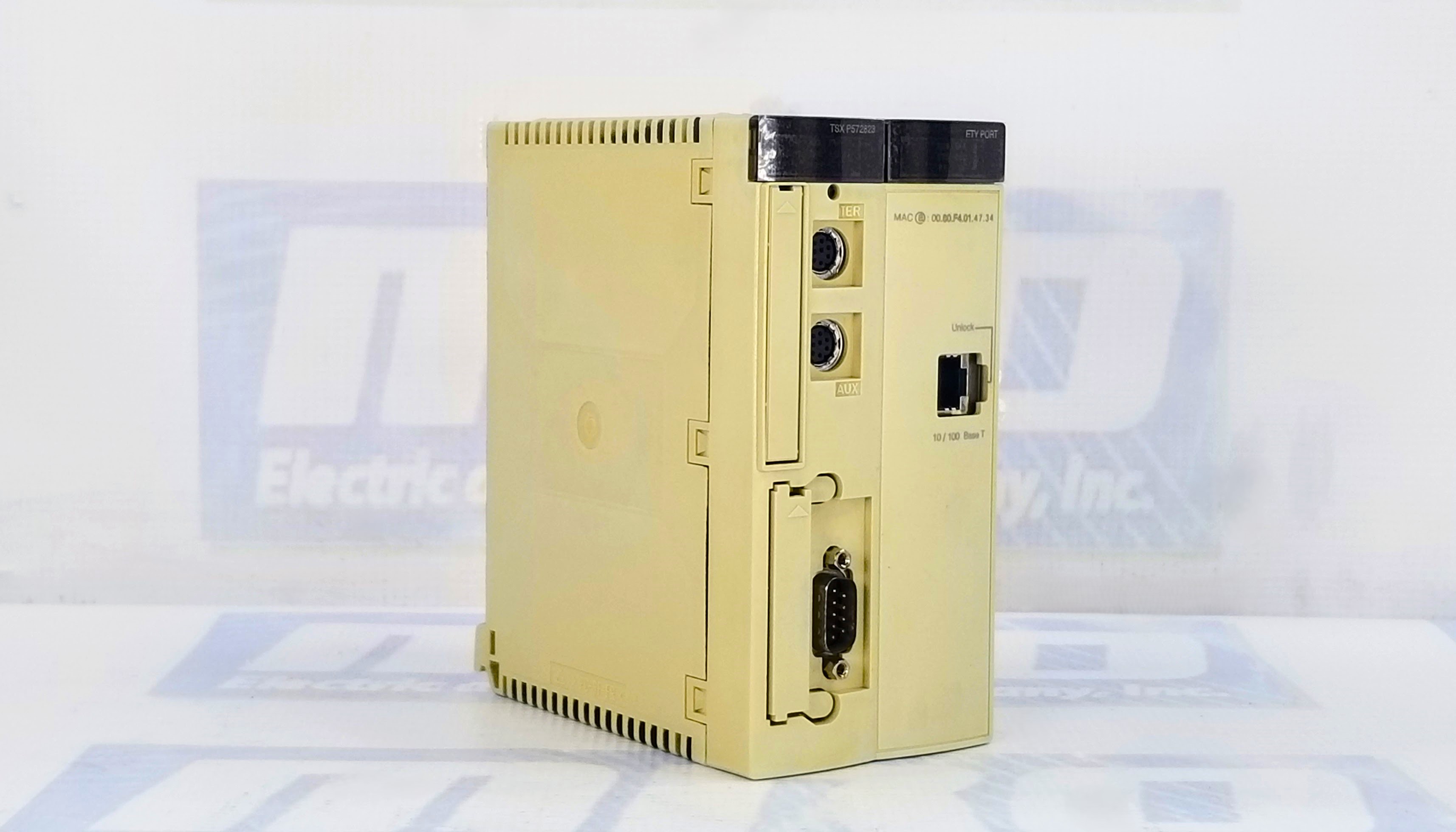

MODICON PREMIUM DOUBLE-FORMAT PL7 PROCESSOR - TRANSPARENT READY - 1180 MA 5 V DC

5/5
1 rating

Select Condition

Refurbished

Request Quote

New

$4,279.00

1 in stock

Request a Quote
  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberTSXP572823M
ManufacturerSchneider Electric
TypeCPUs
Model #TSX-P57-2823M
Warranty2 Year
Module formatDouble
Product or component typeDouble-format PL7 processor
Number of racks8 12 slots
16 4/6/8 slots
Discrete I/O processor capacity1024 I/O
Analogue I/O processor capacity80 I/O
Number of application specific channel≤ 24
Number of process control channel≤ 10 up to 30 simple loops
Integrated connection typeEthernet TCP/IP RJ45 10/100 Mbit/s
Fipio manager (127 agents) SUB-D 9
Serial link 2 female mini DIN 19.2 kbit/s
Communication module1 CANopen bus module
processor1 fieldbus module (none if CANopen used)
4 AS-Interface bus modules
Memory descriptionPCMCIA card 160 Kwords program
PCMCIA card 2688 Kwords additional data storage
Internal RAM (with PCMCIA card) 64 Kwords data
Internal RAM (without PCMCIA card) 64 Kwords program and data
Software designationPL7 Junior/Pro
Protective treatmentTC
ConceptTransparent Ready
Number of slots≤ 128
Maximum size of object areas30.5 %MWi internal words located internal data
32 %KWi constant words located internal data
8132 %Mi located internal bits
Application structure1 fast task
1 master task
64 event tasks
Execution time per instruction0.19 µs Boolean without PCMCIA card
0.21 µs Boolean with PCMCIA card
0.25 µs word or fixed-point arithmetic without PCMCIA card
0.42 µs word or fixed-point arithmetic with PCMCIA card
2.6 µs floating points without PCMCIA card
2.6 µs floating points with PCMCIA card
Number of instructions per ms2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card
3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card
3.7 Kinst/ms 100 % Boolean with PCMCIA card
4.76 Kinst/ms 100 % Boolean without PCMCIA card
System overhead0.35 ms fast task
1.2 ms master task
MarkingCE
Local signalling1 LED green processor running (RUN)
1 LED red processor or system fault (ERR)
1 LED yellow reception activity (RX)
1 LED red I/O module or configuration fault (I/O)
1 LED yellow activity on the terminal port (TER)
1 LED red activity on Fipio bus (FIP)
1 LED green Ethernet TCP/IP port ready (RUN)
1 LED red Ethernet TCP/IP port fault (ERR)
1 LED red collision detection (COL)
1 LED yellow Ethernet link diagnostics (STS)
1 LED yellow transmission activity (TX)
Current consumption1180 mA 5 V DC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXP572823M to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXP572823M we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXP572823M, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 4lbs

Want it shipped today?

  • Order within the next 8 hours and 22 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXP572823M for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXP572823M Overview

Schneider Electric TSXP572823M – Powerful Double-Format PL7 Processor for Modicon TSX Premium Systems

The Schneider Electric TSXP572823M is a high-performance double-format PL7 processor module designed for advanced automation and control applications. As part of the Modicon TSX Premium series, this processor offers exceptional processing capabilities, flexible communication options, and support for complex industrial control systems. Built to handle demanding environments, the TSX-P57-2823M is an ideal solution for large-scale automation setups requiring speed, reliability, and scalability.

High I/O Capacity for Demanding Applications

This processor supports up to 1024 discrete I/O points and 80 analog I/O channels, offering ample capacity for large and complex control architectures. It also accommodates up to 24 application-specific channels and up to 30 simple control loops, providing broad support for process monitoring and regulation. The TSXP572823M supports a total of 8 racks with 12 slots or 16 racks with 4, 6, or 8 slots, allowing system designers to scale their configurations to meet application requirements.

Versatile Communication and Networking Options

The TSXP572823M is equipped with a variety of integrated communication options, including Ethernet TCP/IP (RJ45, 10/100 Mbps), a Fipio manager (127 agents) with SUB-D 9 connector, and a serial link (2 mini-DIN ports at 19.2 kbps). Additionally, it supports expansion with one CANopen bus module, one fieldbus module (if CANopen is not used), and up to four AS-Interface bus modules, making it suitable for multi-protocol environments and complex network topologies.

Fast Execution and Advanced Task Handling

The processor features a robust task structure, including one fast task, one master task, and up to 64 event tasks. Execution speed is excellent, with Boolean instructions processed in as little as 0.19 µs, and up to 4.76 K instructions per millisecond without a PCMCIA card. Floating-point and fixed-point arithmetic tasks are also handled efficiently, enabling precise and real-time control of critical processes.

Memory and Software Integration

The module includes internal RAM and is compatible with PCMCIA cards for extended program and data storage. Program memory can be expanded to 160 Kwords, and additional data storage of up to 2688 Kwords is supported. The unit operates with PL7 Junior/Pro software and is compliant with Schneider Electric's Transparent Ready concept, ensuring ease of integration and network transparency.

Diagnostics, Indicators, and Reliability

This unit features a complete set of LED indicators for system status, Ethernet diagnostics, I/O faults, and bus activity. It includes CE marking and is treated with protective coating (TC) for enhanced durability. The current consumption is 1180 mA at 5 V DC, ensuring efficient operation in a control panel environment. These features make the TSXP572823M a reliable core component for mission-critical automation systems.

Frequently Asked Questions (FAQs)

What type of processor is the TSXP572823M?

It is a double-format PL7 processor for the Modicon TSX Premium series, supporting large-scale industrial control systems.

What is its I/O handling capacity?

The processor can handle up to 1024 discrete I/O and 80 analog I/O points, supporting large control applications.

How many racks and slots does it support?

It supports up to 8 racks with 12 slots each or 16 racks with 4, 6, or 8 slots, providing flexible expansion options.

What types of communication ports are included?

It includes Ethernet TCP/IP, Fipio manager, serial mini-DIN ports, and options for CANopen and AS-Interface modules.

Is it compatible with floating-point arithmetic?

Yes, it can perform floating-point operations in 2.6 µs, with advanced math handling for automation control.

What is the execution time for Boolean instructions?

Boolean instructions are executed in as little as 0.19 µs, depending on the usage of the PCMCIA card.

Which software is required to program it?

It is programmed using PL7 Junior or PL7 Pro software environments.

Does it support real-time task management?

Yes, it supports one fast task, one master task, and up to 64 event-driven tasks for responsive process control.

What kind of memory options are available?

The processor supports PCMCIA cards with up to 160 Kwords for programs and 2688 Kwords for data storage.

Is it currently available for purchase?

Yes, MRO Electric has the TSXP572823M in stock, available with a 2-year warranty and free shipping.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TSXP572823M, take a look at more from our CPUs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TSXP572823M products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
