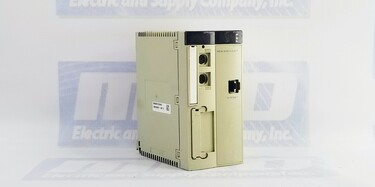

MODICON PREMIUM UNITY PROCESSOR - 8 RACKS (12 SLOTS) / 16 RACKS (4/6/8 SLOTS) - 1650 MA, 5 V DC
Part Number | TSXP572634M |
Manufacturer | Schneider Electric |
Type | CPUs |
Model # | TSX-P57-2634M |
Warranty | 2 Year |
Module format | Double |
Product or component type | Unity processor |
Software designation | Unity Pro |
Concept | Transparent Ready |
Number of racks | 8 12 slots |
16 4/6/8 slots | |
Number of slots | <= 128 |
Discrete I/O processor capacity | 1024 I/O |
Analogue I/O processor capacity | 80 I/O |
Number of application specific channel | <= 24 |
Number of process control channel | <= 10 up to 30 simple loops |
Integrated connection type | Non isolated serial link 2 female mini DIN RS485 19.2 kbit/s |
Ethernet TCP/IP RJ45 | |
Port Ethernet | 10BASE-T/100BASE-TX |
Communication module processor | 4 |
1 | |
Memory description | PCMCIA card 16384 kB additional data storage |
Internal RAM (without PCMCIA card) 160 kB program and data | |
Internal RAM (with PCMCIA card) 768 kB program | |
Internal RAM (with PCMCIA card) 160 kB data | |
Maximum size of object areas | 8132 %Mi located internal bits |
64 kB (elementary and derived data) unlocated internal data | |
64 kB (DFB and EFB function blocks) unlocated internal data | |
64 %MWi internal words located internal data | |
64 %KWi constant words located internal data | |
Application structure | 1 fast task |
1 master task | |
64 event tasks | |
Execution time per instruction | 1.75...2.6 µs floating points without PCMCIA card |
1.75...2.6 µs floating points with PCMCIA card | |
0.42 µs word or fixed-point arithmetic with PCMCIA card | |
0.25 µs word or fixed-point arithmetic without PCMCIA card | |
0.21 µs Boolean with PCMCIA card |
0.19 µs Boolean without PCMCIA card | |
Number of instructions per ms | 4.76 Kinst/ms 100 % Boolean without PCMCIA card |
3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | |
3.7 Kinst/ms 100 % Boolean with PCMCIA card | |
2.53 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card | |
System overhead | 1 ms master task |
0.3 ms fast task | |
Marking | CE |
Local signalling | 1 LED yellow transmission activity (TX) |
1 LED yellow reception activity (RX) | |
1 LED yellow Ethernet link diagnostics (STS) | |
1 LED yellow activity on TER or AUX terminal port (TER) | |
1 LED red processor or system fault (ERR) | |
1 LED red I/O module or configuration fault (I/O) | |
1 LED red Ethernet TCP/IP port fault (ERR) | |
1 LED red collision detection (COL) | |
1 LED green processor running (RUN) | |
1 LED green Ethernet TCP/IP port ready (RUN) | |
Current consumption | 1650 mA 5 V DC |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXP572634M to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXP572634M we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXP572634M, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TSXP572634M for credit when ordering from MRO Electric
The Schneider Electric TSXP572634M is a highly advanced CPU module designed to support complex industrial automation systems with seamless efficiency. Part of the Modicon family of processors, this Unity Pro-based CPU offers a wide array of features that cater to diverse automation requirements. The TSXP572634M is ideal for medium to large-scale operations, where extensive input/output (I/O) capacity and high-speed processing are essential. It is built to handle up to 128 slots, which allows it to manage large volumes of data and control functions within industrial systems. The module’s exceptional performance and advanced communication capabilities make it a reliable choice for any automation architecture.
The Schneider Electric TSXP572634M CPU provides significant input/output capacity, handling up to 1024 discrete I/O and 80 analog I/O. This high capacity ensures that the module can handle various control tasks in industrial settings, from basic machine control to advanced process automation. The processor also supports up to 24 application-specific channels, allowing for greater flexibility in specialized applications such as motion control, energy management, and other custom functionalities. Furthermore, it accommodates up to 30 process control channels, including ten simple control loops, making it ideal for operations that demand fine-tuned control of variables like temperature, pressure, or flow.
Equipped with multiple communication interfaces, the TSXP572634M CPU excels in seamlessly integrating into complex industrial networks. The module includes two integrated non-isolated serial links with mini DIN RS485 connections, which support data transmission at speeds of up to 19.2 kbit/s. The unit also offers Ethernet TCP/IP connectivity with 10BASE-T and 100BASE-TX ports. These high-speed Ethernet ports allow easy integration with networked devices, enabling real-time communication between the CPU and other system components. The advanced communication capabilities of this CPU make it suitable for Transparent Ready applications, where the need for reliable, flexible network communication is critical.
The TSXP572634M CPU features impressive processing capabilities to handle even the most demanding automation tasks. Its internal RAM allows for extensive program and data storage, with 160 kB of program and data memory available without a PCMCIA card. It is expandable to 768 kB with a PCMCIA card for program storage. This ensures that the CPU can manage large and complex automation programs efficiently. The processor’s fast execution times further enhance its performance, with speeds as quick as 0.25 µs for word or fixed-point arithmetic and 0.19 µs for Boolean operations without a PCMCIA card. These rapid processing speeds translate to faster system responses, improving overall productivity in automated systems.
The Schneider Electric TSXP572634M CPU is designed to support a wide range of application structures. It offers a master task, a fast task, and up to 64 event tasks, allowing for flexible and precise control over system operations. This versatility ensures the CPU can manage multiple processes concurrently without compromising performance. With a system overhead of 1 ms for the master task and 0.3 ms for the fast task, the CPU efficiently handles high-priority tasks, minimizing delays and maintaining consistent system performance.
The TSXP572634M is equipped with comprehensive diagnostic features to ensure system stability and minimize downtime. The module includes multiple LED indicators for various system statuses, including transmission activity, reception activity, Ethernet link diagnostics, and processor faults. These diagnostic LEDs provide precise, real-time feedback on system performance, allowing operators to quickly identify and resolve any issues. This functionality ensures that the CPU remains operational and performs optimally in high-demand environments.
The Schneider Electric TSXP572634M CPU comes with a 2-year warranty from MRO Electric and Supply, offering peace of mind for customers. Additionally, MRO Electric and Supply offers free shipping, making it easy and cost-effective for businesses to integrate this powerful CPU into their automation systems.
What is the primary use of the Schneider Electric TSXP572634M CPU?
The TSXP572634M CPU is used for industrial automation applications. It is designed to control and monitor processes in industries such as manufacturing, energy, and transportation. Its high input/output (I/O) capacity and processing speed make it ideal for complex tasks like machine control, motion management, and process automation.
What are the key features of the TSXP572634M CPU?
The TSXP572634M CPU offers several key features, including:
What communication interfaces are available on the TSXP572634M CPU?
The CPU includes multiple communication interfaces, such as:
How much memory does the TSXP572634M CPU have?
The TSXP572634M has 160 kB of internal program and data storage RAM, which can be expanded with a PCMCIA card to provide up to 768 kB of program memory. Additionally, the CPU supports up to 64 kB of internal data storage for elementary and derived data.
Can the TSXP572634M CPU handle analog inputs and outputs?
Yes, the TSXP572634M CPU can handle up to 80 analog I/O, making it suitable for applications that require precise analog control, such as temperature monitoring, pressure control, and process regulation.
What kind of task management does the CPU offer?
The CPU supports a flexible application structure, including:
What diagnostic features does the TSXP572634M CPU have?
The CPU includes various diagnostic LEDs that provide real-time feedback on system performance. These LEDs indicate the status of activities such as transmission, reception, Ethernet link health, processor status, and faults, helping operators monitor and troubleshoot the system efficiently.
What is the warranty period for the TSXP572634M CPU?
MRO Electric and Supply provides a 2-year warranty for the Schneider Electric TSXP572634M CPU, ensuring reliable performance and peace of mind for customers.
Is there free shipping available for the TSXP572634M CPU?
MRO Electric and Supply offers free shipping on the TSXP572634M CPU, which increases the value of this high-performance unit and makes it more accessible to businesses.
What industries commonly use the TSXP572634M CPU?
The TSXP572634M CPU is commonly used in industries like manufacturing, energy, transportation, and other sectors requiring complex control systems. Its capacity to manage large-scale automation tasks and multiple processes makes it an ideal choice for industrial automation projects.
